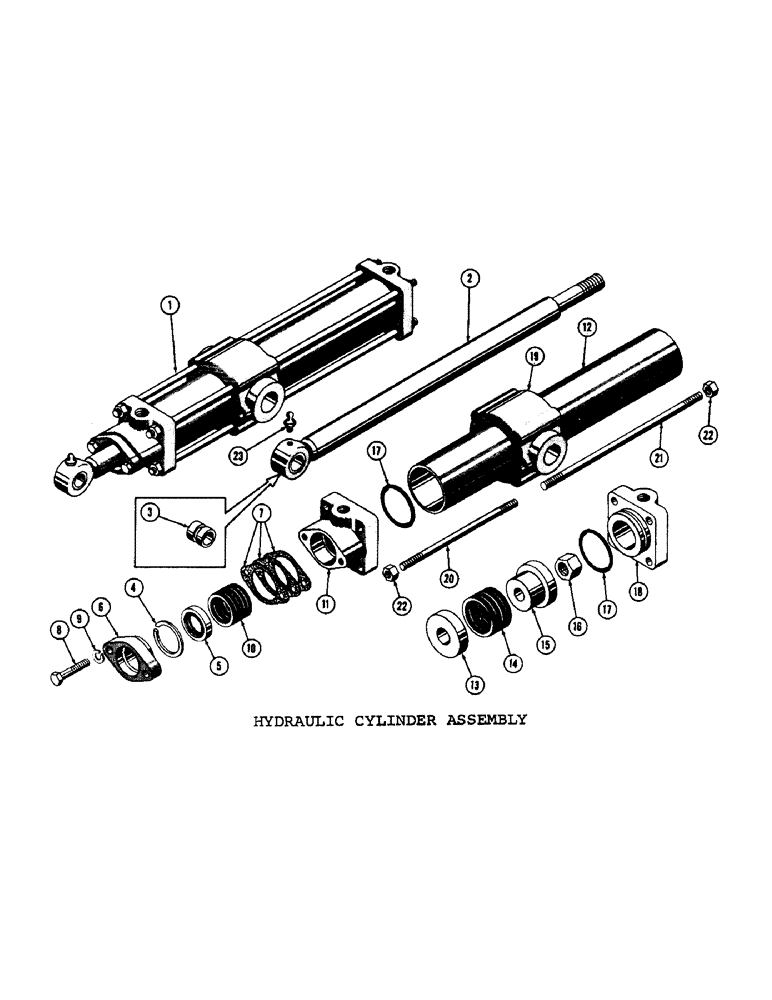

Запчасти Case 600 (278) - HYDRAULIC CYLINDER ASSEMBLY - SCARIFIER LIFT, TUBE, PISTON ROD (07) - HYDRAULIC SYSTEM

1

37715

SHAFT

CYLINDER ASS'Y. - hydraulic

1шт.

2

R-10962

END YOKE & PISTON ROD ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y.

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

4

70742

WASHER

2.50", Int, #250

1шт.

5

70363

WIPER SEAL

- wiper

1шт.

6

70366

RETAINER - packing

1шт.

7

NLS

NO LONGER SERVICED

SHIM

1шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 mt'g.) (45110) Hex, 1/2"-13 x 2", G5

2шт.

9

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

10

30568

PACKING

- rod

1шт.

11

70356

CAP - cylinder end

1шт.

12

37720

SHAFT,3.502" ID, 4" OD, 11.697" Length

TUBE - hydraulic cylinder

1шт.

13

NLS

NO LONGER SERVICED

SPACER - retainer

1шт.

14

17578

PACKING

- piston

1шт.

15

30571

BLOCK - piston

1шт.

16

131-370

LOCK NUT

NUT - lock (1"-14 NF) (48378)

1шт.

17

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

18

70351

END - cylinder

1шт.

19

70331

TRUNNION - cylinder

1шт.

20

37716

ROD - tie (Short)

4шт.

21

37717

ROD - tie (Long)

4шт.

22

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

8шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.
