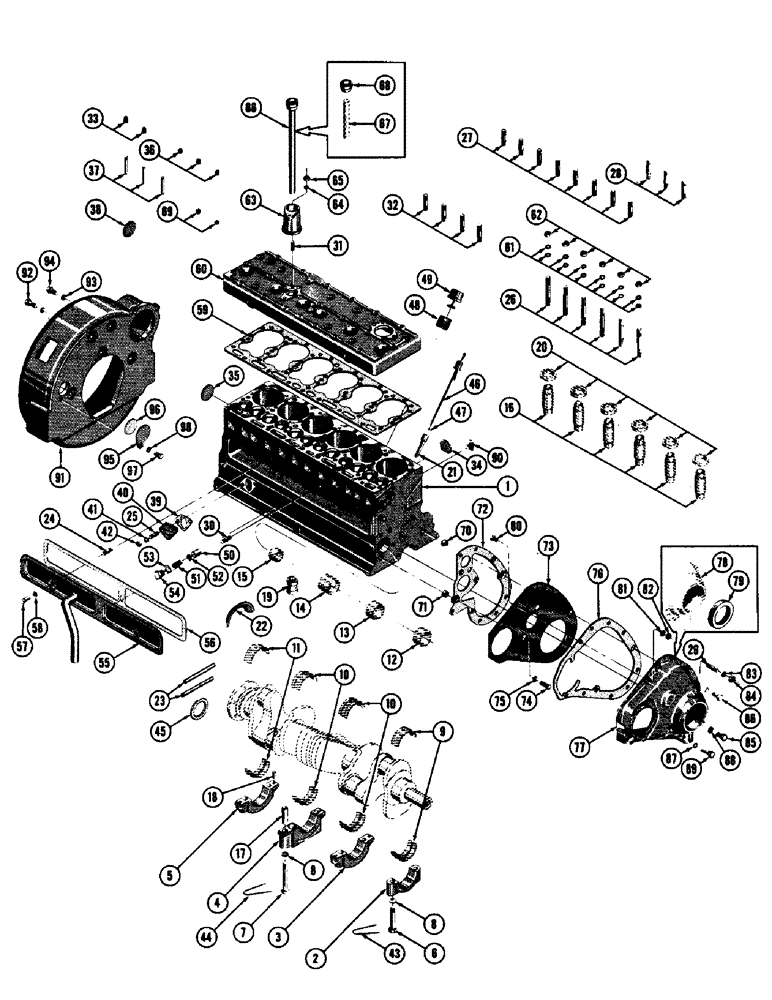

Запчасти Case 600 (010) - GASOLINE ENGINE INSTALLATION, CYLINDER BLOCK, TIMING GEAR COVER, FLYWHEEL HOUSING (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
10779
CYLINDER & C/CASE ASSY - (Stripped)
1шт.
5997
ELEC CONNECTOR
CYLINDER & C/CASE (With valves), Serial Range: (Optional-10779)
1шт.
2
10091
WASHER
CAP - c/shaft front bearing
1шт.
3
10795
CAP - c/shaft center, front bearing
1шт.
4
10796
CAP - c/shaft center, rear bearing
1шт.
5
10797
CAP - c/shaft rear bearing
1шт.
6
10071
OIL SEAL
SCREW 1/2-12 NC x 2-5/8 (10091, 10795 & 10797 mt'g.)
6шт.
7
10070
BOLT
SCREW 1/2-13 NC x 3-1/4 (10796 mt'g.)
2шт.
8
VT3359
SPARE PART WASHER - plain
8шт.
9
REF
INSTRUCTION
BEARING ASSY - front main (See figure #16, ref. #7)
1шт.
10
REF
INSTRUCTION
BEARING ASSY - center main (See figure #16, ref. #8)
2шт.
11
REF
INSTRUCTION
BEARING ASSY - rear main (See figure #16, ref. #9)
1шт.
12
REF
INSTRUCTION
BUSHING - camshaft front (See figure #20, ref. #3)
1шт.
13
REF
INSTRUCTION
BUSHING - camshaft center (See figure #20, ref. #4)
1шт.
14
REF
INSTRUCTION
BUSHING - camshaft center (See figure #20, ref. #5)
1шт.
15
REF
INSTRUCTION
BUSHING - camshaft rear (See figure #20, ref. #6)
1шт.
16
REF
INSTRUCTION
GUIDE -valve stem (See figure #20, ref. #19)
12шт.
17
10834
TAB SPRING
DOWEL - ring (Brg. cap mt'g.)
1шт.
18
10835
PIN - dowel (Brg. cap mt'g.)
5шт.
19
10065
O-RING
SLEEVE - oil pump drive shaft
1шт.
20
REF
INSTRUCTION
INSERT - exhaust valve seat (See figure #20, ref. #17)
6шт.
21
VT3369
SPARE PART SUPPORT - oil gauge rod
1шт.
22
10109
SPARE PART GAUGE - rear bearing oil
1шт.
23
10566
PIPE FITTING
Rear brg. filler block (Used up to S/N 7-19-56)
2шт.
86631586
SPACER,9.8mm ID x 12.7mm OD x 16.76mm L
SEAL - rear brg. filler block (Used from S/N 7-19-56)
2шт.
24
10883
STUD 1/4-20 NC x 1-1/2 (Valve chamber cover mt'g.)
2шт.
25
VT2393
SPARE PART STUD 5/16-18 NC x 1-1/4 (Fuel pump or hole cover mt'g.)
2шт.
26
10962
HOSE
STUD 3/8-24 NF x 3-1/4 (Cylinder head mt'g.)
33шт.
27
30248
HYDRAULIC PUMP
STUD 3/8-16 NC x 2-1/8 (Manifold mt'g.)
8шт.
28
VT4510
X
STUD 3/8-16 NC x 1-3/4 (Manifold mt'g.)
3шт.
29
VT4501
SPARE PART STUD 3/8-16 NC x 1-11/16 (Gear cover mt'g.)
2шт.
30
10966
STUD 1/4-20 NC x 1-7/8 (Valve chamber cover mt'g.)
1шт.
31
G11204
STUD
3/8-16 NC x 1-3/8 (Distributor adaptor mt'g.)
1шт.
32
VT4508
SPARE PART STUD 3/8-16 NC x 1-1/4 (Generator bracket mt'g.)
4шт.
33
221-11
PLUG,Sq Hd, 1/8"-27
Pipe, (Oil holes in c/case)
2шт.
34
10771
LOCK WASHER
PLUG - Hubbard 1-3/8 dia. (Core holes in c/case)
6шт.
35
V22152
CAP
SPARE PART PLUG - Hubbard, l-1/2 dia. (C/case rear)
1шт.
36
VT3395
X
PLUG - pipe cts'k. head
3шт.
37
VT3364
X
PIN - dowel, 5/32 dia. x 1/2 (Thrust, Serial Range: washer-c/case)
3шт.
38
VT3383
X
PLUG - fuse (C/case)
1шт.
39
10123
SPARE PART Fuel pump hole cover
1шт.
40
10121
COVER - fuel pump hole
1шт.
41
92-6
LOCK WASHER,3/8"
WASHER - heavy sec. lock
2шт.
42
47861
KNOB
NUT - light SF hex (5/16-18 NC)
2шт.
43
10376
WIRE - lock, #19 dia. x 10" long (Brg. cap screws)
3шт.
44
10377
BOW
WIRE - lock #19 dia. x 12" long (Brg. cap screws)
1шт.
45
10565
ELEC CONNECTOR,4 Pin
FELT - rear bearing oil guard
2шт.
46
11491
BALL BEARING
ROD ASSY - oil gauge
1шт.
47
10416
FELT - oil gauge rod
1шт.
48
221-260
HYD CONNECTOR
NIPPLE - pipe, oil filler
1шт.
49
10406
SPARE PART ASSY - oil filler
1шт.
50
10421
VALVE - oil pressure relief
1шт.
51
10425
SPRING - oil relief valve
1шт.
52
11057
SPARE PART WASHER - plain, relief valve adjusting
1шт.
53
10424
HARNESS
GASKET - copper asbestos
1шт.
54
10423
THUMB SCREW
PLUG - oil pressure relief valve
1шт.
55
10791
COVER ASSY - valve chamber
1шт.
56
10970
GASKET - valve chamber cover
1шт.
57
11058
NUT - valve chamber cover
3шт.
58
10356
ELBOW
GASKET - copper asbestos
3шт.
59
11054
X
CYLINDER HEAD GASKET GASKET - cylinder head
1шт.
60
11483
SPARE PART Cylinder
1шт.
61
V20214
WASHER
Plain, (Cyl. head mt'g.)
33шт.
10976
BALL SOCKET
WASHER - plain (Cyl. heal mt'g.)
32шт.
62
10967
NUT - hex (3/8-24 NF) (Cyl. head mt'g.)
33шт.
63
10571
FITTING
ADAPTER - distributor
1шт.
64
92-6
LOCK WASHER,3/8"
(48446)
1шт.
65
30438
X
NUT NUT - hex (3/8-16 NC)
1шт.
66
10572
SHAFT ASSY - distributor drive
1шт.
67
NSS
NOT SOLD SEPARAT
SHAFT - distributor drive
1шт.
68
10573
FITTING
COUPLING - distributor drive shaft
1шт.
69
221-24
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
Pipe, cts'k. sq. head (41838)
2шт.
71
10312
DOWEL - ring, front end, Serial Range: plate-c/case
1шт.
72
11059
GASKET - front end, Serial Range: plate-c/case
1шт.
75
92-6
LOCK WASHER,3/8"
(48446)
1шт.
77
33465
ADAPTER
COVER ASSY - gear
1шт.
78
NSS
NOT SOLD SEPARAT
COVER - gear
1шт.
79
10972
HOSE,Female, 1.5-2.5 mm2
SEAL - c/shaft oil & dust
1шт.
81
92-7
LOCK WASHER,7/16"
(48447)
1шт.
82
47863
SPRING CUP
NUT - light SF hex (7/16-14 NC)
1шт.
83
92-6
LOCK WASHER,3/8"
(48446)
6шт.
84
30438
X
NUT NUT - hex (3/8-16 NC)
3шт.
85
10295
BUSHING
SCREW 3/8-16 NC x 1-1/8 (33465 mt'g.)
3шт.
86
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
(33465 mtg)
1шт.
87
92-7
LOCK WASHER,7/16"
(48447)
1шт.
88
10298
COPPER WASHER
Copper
2шт.
89
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
(33465 mt'g) (45060)
3шт.
90
11073
X
DRAINCOCK/TAP SUPPLY DRAINCOCK - cylinder water
1шт.
91
31120
HOUSING - flywheel
1шт.
93
48487
X
WASHER - light sec. lock
5шт.
94
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
(31120 mt'g) (45082)
3шт.
96
10134
SPARE PART FELT - flywheel pointer
1шт.
97
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
(10133 mt'g.) (45053)
1шт.
98
92-6
LOCK WASHER,3/8"
(48446)
1шт.
Выбрано товаров: 101
