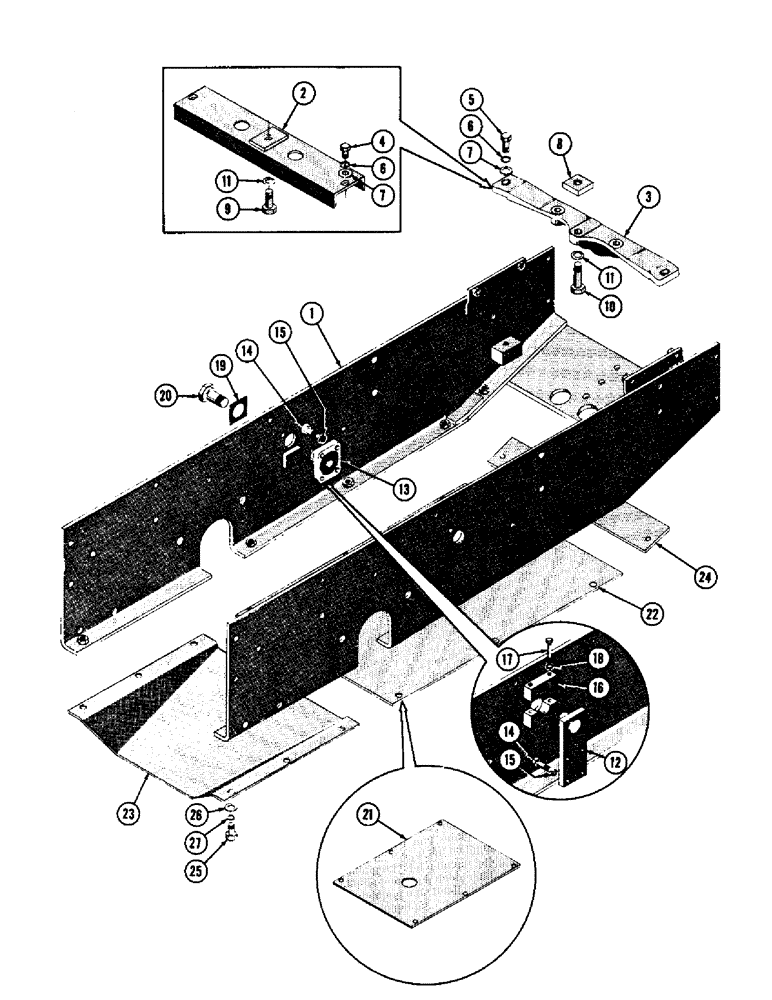

Запчасти Case 600 (008) - ENGINE FRAME INSTALLATION, ENGINE FRAME, MUD PANS, ENGINE MOUNTS (01) - ENGINE

1

31923

FRAME ASS'Y. - engine (Used up to serial #12-22-55)

1шт.

32701

FRAME ASS'Y. - engine (Used from serial #12-22-55)

1шт.

2

31916

MOUNT ASS'Y. - engine front (Used up to serial #12-22-55)

1шт.

3

34856

MOUNT - engine front (Used from serial #12-22-55)

1шт.

4

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (31916 mt'g.) (Used up to serial #12-22-55)

2шт.

5

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (34856 mt'g.) (Used from serial #12-22-55)

2шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

7

195-33

WASHER,1/2"

- plain (48428)

2шт.

8

30474

SPACER - engine mt'g., front

1шт.

9

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(Engine mt'g., front) (Used up to S/N 12-22-55) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Engine mt'g., front) (Used from S/N 12-22-55) Hex, 5/8"-11 x 2 1/2", G5

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

1шт.

12

31948

WASHER

MOUNT ASS'Y.- engine rear (Used up to serial #12-22-55)

2шт.

13

33342

TRUNNION - engine mt'g. rear (Used from serial #12-22-55)

2шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(31948 or 33342 mt'g.) (45108) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

15

92-8

LOCK WASHER,1/2"

(48448) 1/2"

8шт.

16

31950

TRUNNION - engine mt'g. rear (Used up to serial #12-22-55)

2шт.

17

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

HHCS 3/8-24 NF x 2-1/2 (Engine mt'g., rear) (Used up to serial #12-22-55)

4шт.

18

92-6

LOCK WASHER,3/8"

(Used up to serial #12-22-55) (48446) 3/8"

4шт.

19

32696

LOCK - engine mt'g., rear (Used from serial #12-22-55)

2шт.

20

33320

PTO

BOLT - special, engine mt'g. (Used from serial #12-22-55)

2шт.

21

31954

PAN - mud, center (Used up to serial #12-22-55)

1шт.

22

33480

PAN - mud, center (Used from serial #12-22-55)

1шт.

23

31955

PAN - mud, rear

1шт.

24

34854

PLATE - filler (Used from serial #7-5-56)

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Mud pan mt'g.) (45707)

14шт.

26

95-8

WASHER,1/2"

- plain (48408) 1/2"

12шт.

27

92-8

LOCK WASHER,1/2"

(48448) 1/2"

14шт.
