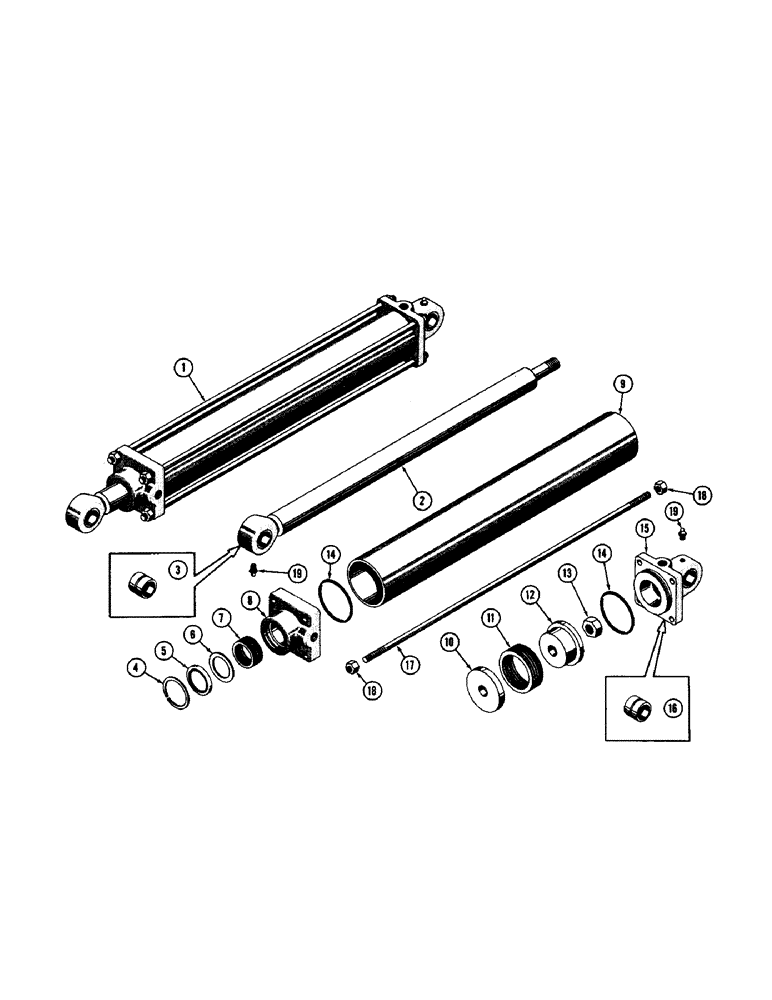

Запчасти Case 600 (266) - CYLINDER ASSY. - ANGLE DOZER HYDRAULIC ANGLING, TUBE (07) - HYDRAULIC SYSTEM

1

38552

CYLINDER ASS'Y. - hydraulic, L.H.

1шт.

38553

CYLINDER ASS'Y. - hydraulic, R.H.

1шт.

2

R11956

END YOKE & PISTON ROD ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y.

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

4

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

5

31525

WIPER SEAL

- wiper

1шт.

6

31539

WASHER

- packing

1шт.

7

17598

PACKING

- rod

1шт.

8

73348

CAP - cylinder end

1шт.

9

38153

TUBE - hyd. cylinder

1шт.

10

31519

LOCKING PLATE

SPACER - retainer

1шт.

11

31526

PACKING

- piston

1шт.

12

31520

BLOCK - piston

1шт.

13

131-19

LOCK NUT,1"-14, GB

NUT - lock (1"-14 NF)

1шт.

14

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

15

D20037

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - CYLINDER

1шт.

16

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

17

38151

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF) (11946)

8шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49127) 90º, 1/8" NPT x .84" lg

1шт.
