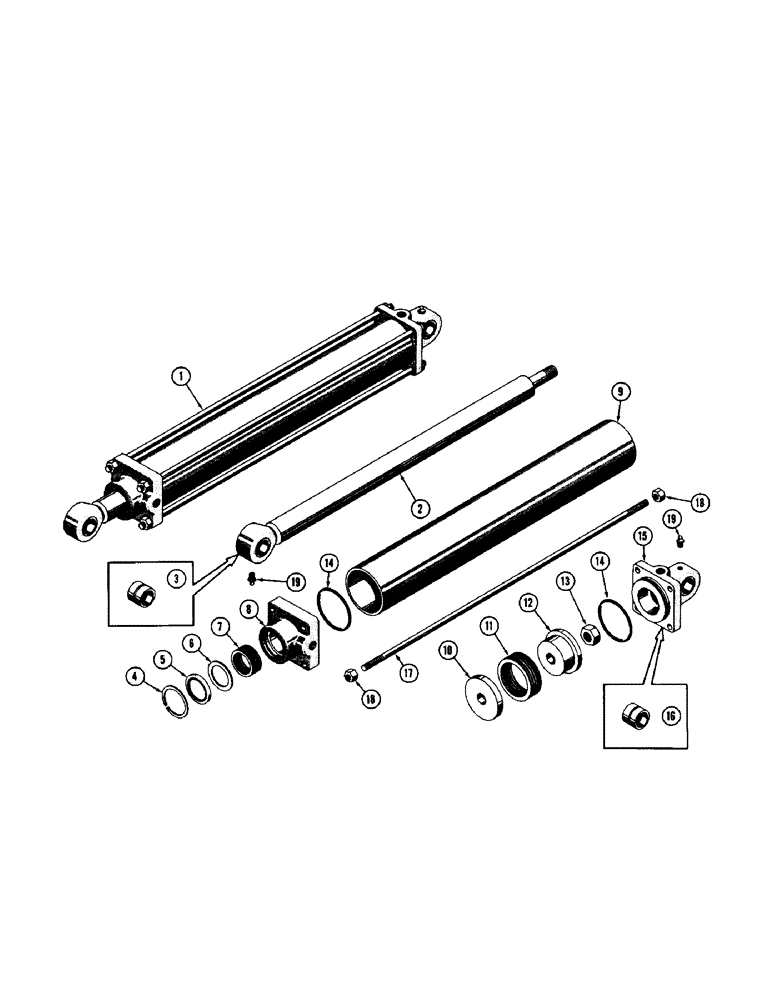

Запчасти Case 600 (264) - TERRALOADR HYDRAULIC DUMP CYLINDER, TUBE, PISTON ROD, PACKINGS, SEALS, END CAPS (07) - HYDRAULIC SYSTEM

1

33901

BUSHING

CYLINDER ASS'Y. - hydraulic

2шт.

2

D20032

END YOKE & PISTON ROD ASS'Y.

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

5

17603

WIPER SEAL

- wiper

1шт.

6

36259

WASHER

- packing

1шт.

7

17597

PACKING

- rod

1шт.

8

31657

ARTICULATION

CAP - cylinder end

1шт.

9

33902

TAB SPRING

TUBE - hydraulic cylinder

1шт.

10

31661

WASHER

- retainer

1шт.

11

31662

PACKING

- piston

1шт.

12

31663

X

BLOCK - piston

1шт.

13

131-152

HARDWARE

NUT - lock (3/4-16 NF) (48070)

1шт.

14

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

15

D20056

END ASS'Y. - cylinder

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

17

33769

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

8шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49127) 90º, 1/8" NPT x .84" lg

2шт.

D30137

KIT

CYLINDER ASSEMBLY

1шт.

D30145

PACKAGE, REPAIR

KIT, CYLINDER ASSEMBLY

1шт.
