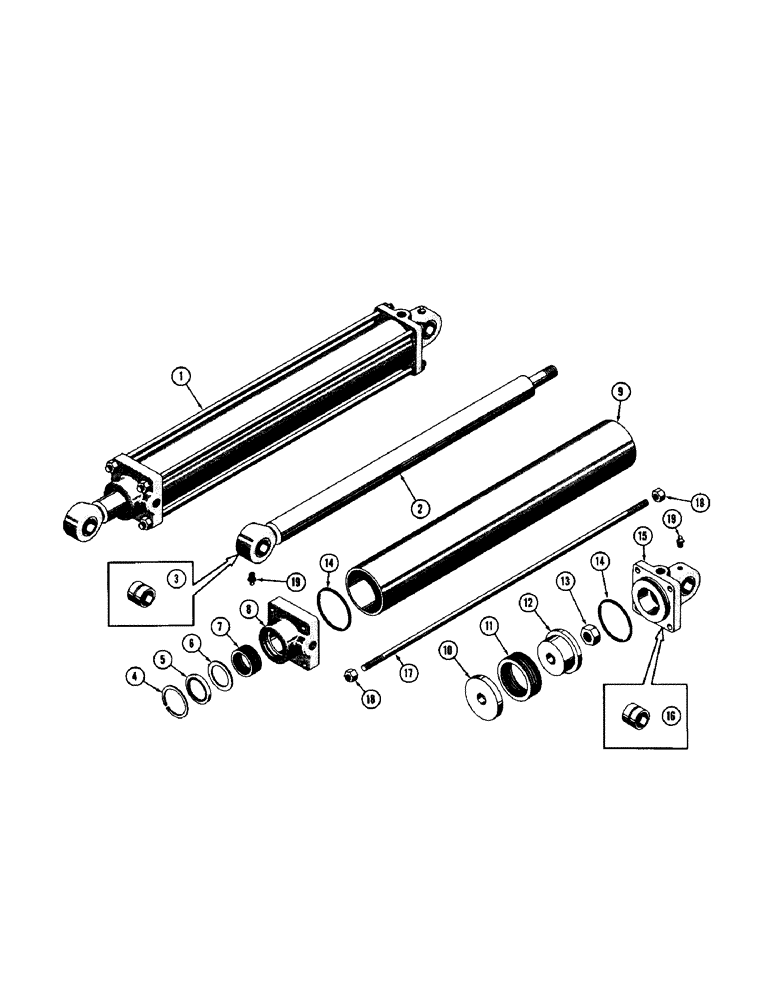

Запчасти Case 600 (264[1]) - TERRALOADR HYDRAULIC LIFT CYLINDER, TUBE, PISTON ROD, PACKINGS, SEALS, END CAPS (07) - HYDRAULIC SYSTEM

1

31540

CYLINDER ASSY. hydraulic, R.H.

1шт.

31541

SHAFT SEAL

CYLINDER ASSY. hydraulic, L.H.

1шт.

2

34431

END YOKE & piston rod assy.

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

4

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

5

31525

WIPER SEAL

wiper

1шт.

6

31539

WASHER

packing

1шт.

7

17598

PACKING

rod

1шт.

8

73348

CAP cylinder end

1шт.

9

31523

TUBE hydraulic cylinder

1шт.

10

31519

LOCKING PLATE

retainer

1шт.

11

31526

PACKING

piston

1шт.

12

31520

BLOCK piston

1шт.

13

131-370

LOCK NUT

1"-14 NF (48378)

1шт.

14

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL

2шт.

15

D20037

cylinder

1шт.

16

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

17

31524

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

lock (5/8-18 NF) (11946)

8шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING straight grease, 1/8 NP (49200)

2шт.
