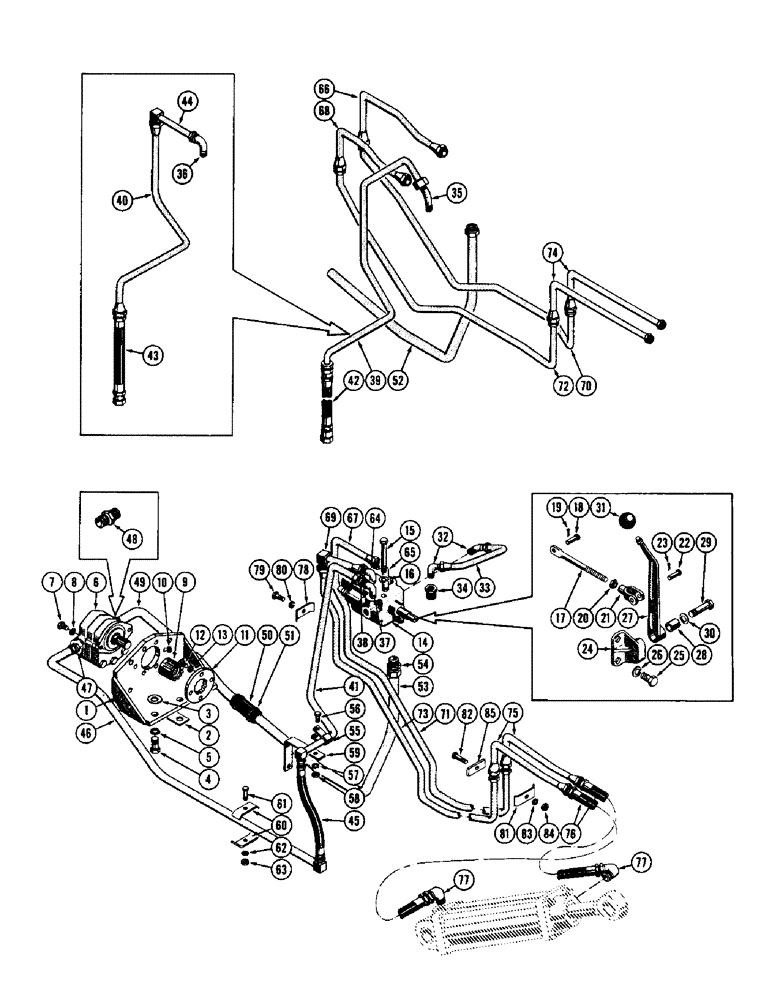

Запчасти Case 600 (236) - TOOL BAR HYDRAULIC INSTALLATION, VALVE, LEVER, PUMP, TUBES, HOSES, FITTGINS, (FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - hydraulic pump mt'g. system

1шт.

2

33394

SHIM - front engine mt'g., hydraulic pump system

1шт.

3

NLS

NO LONGER SERVICED

SHIM - .010 mt'g., hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31615

CAP

PUMP ASS'Y. - hydraulic control (See figure #284 for breakdwon), hydraulic pump system

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(31615 mt'g.) (45056), hydraulic pump system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

(48446), hydraulic pump system 3/8"

2шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

74500

VALVE ASS'Y. - hydraulic control (See figure #216 for breakdown) and lever system

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (74500 mt'g.) (47570), lever and valve system

2шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

17

35620

SHIM

LINK - valve control and valve system

1шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

1шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Lever and valve system 1/16" x 1/2"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Yoke (48663), lever and valve system 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

1шт.

24

32322

BRACKET - control lever and valve system

1шт.

25

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

27

38865

LEVER - valve control system

1шт.

28

32362

WASHER

- spacer, lever and valve system

1шт.

29

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38865 mt'g.) (45709), lever and vale system

1шт.

30

195-33

WASHER,1/2"

- plain (48428), lever and valve system

1шт.

31

CAS31375

KNOB

BALL - grip, lever and valve system

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

33

R10979

TUBE ASS'Y. - valve to tank, primary hydraulic system

1шт.

34

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

35

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 3/4 JIC to 1/2 NP (Used up to serial #7060922), primary hydraulic system

1шт.

36

221-563

ELBOW - 90 degree street, 1/2 NP to 3/4 NP (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

37

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP to 1/2 NP (Used from serial #7061017) (41673), primary hydraulic system

1шт.

38

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1/ NP (Used from serial #7061017) (50027), primary hydraulic system

1шт.

39

33404

TUBE ASS'Y. - valve to pump (Used up to serial #7060922), primary hydraulic system

1шт.

40

R10834

TUBE ASS'Y. - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

41

R11501

TUBE ASS'Y. - valve to pump (Used from serial #7061017), primary hydraulic system

1шт.

42

35964

HOSE ASS'Y. - valve to pump (Used up to serial #7060922), primary hydraulic system

1шт.

43

R10853

HOSE ASS'Y. - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

44

R10975

TUBE ASS'Y. - valve to pump (Used from serial #7060922 and up to serial #7061017), primary hydraulic system

1шт.

45

R11503

HOSE ASS'Y. - valve to pump (Used from serial #7061017), primary hydraulic system

1шт.

46

35962

SUPPORT

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

47

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

49

33401

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

50

32798

HOSE

- low pressure, primary hydraulic system

1шт.

51

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, primary hydraulic system

2шт.

52

33402

TUBE ASS'Y. - pump to tank (Used up to serial #7060922), primary hydraulic system

1шт.

53

R10836

TUBE ASS'Y. - pump to tank (Used from serial #7060922), primary hydraulic system

1шт.

54

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

55

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (R10834 or R11501 mt'g.) (Used from serial #7060922), primary hydraulic system

1шт.

56

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mt'g.) (Used from S/N 7060922) (45629), primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

57

92-5

LOCK WASHER,5/16"

(Used from serial #7060922), primary hydraulic system 5/16"

1шт.

58

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from serial #7060922), primary hydraulic system

1шт.

59

33925

BRACKET - tube support (Used from serial #7060922), primary hydraulic system

1шт.

60

31665

COLLAR CLAMP

CLAMP - tube (35962 mt'g.), primary hydraulic system

2шт.

61

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (31665 mt'g.) (45633), primary hydraulic system

1шт.

62

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

63

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

64

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), tool bar hydraulic system

1шт.

65

218-498

ELBOW - 90 extra long male, 5/8 JIC to 1/2 NP (50571), tool bar hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

66

38400

TUBE ASS'Y. - valve to cylinder (Used up to serial #7060938), tool bar hydraulic system

1шт.

67

R11004

TUBE ASS'Y. - valve to cylinder (Used from serial #7060938), tool bar hydraulic system

1шт.

68

38402

TUBE ASS'Y. - valve to cylinder (Used up to serial #7060938), tool bar hydraulic system

1шт.

69

R11002

TUBE ASS'Y. - valve to cylinder (Used from serial #7060938), tool bar hydraulic system

1шт.

70

39496

SPINDLE

TUBE ASS'Y. - valve to cylinder (Used up to serial #7060938), tool bar hydraulic system

1шт.

71

74923

WASHER

TUBE ASS'Y. - valve to cylinder (Used from serial #7060938), tool bar hydraulic system

1шт.

72

39498

SPINDLE

TUBE ASS'Y. - valve to cylinder (Used up to serial #7060938), tool bar hydraulic system

1шт.

73

74927

TUBE ASS'Y. - valve to cylinder (Used from serial #7060938), tool bar hydraulic system

1шт.

74

19184

TUBE ASS'Y. - valve to cylinder (Used up to serial #7060938), tool bar hydraulic system

2шт.

75

74921

TUBE ASS'Y. - valve to cylinder (Used from serial #7060938), tool bar hydraulic system

2шт.

76

37899

HOSE ASS'Y. - valve to cylinder, tool bar hydraulic system

2шт.

77

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), tool bar hydraulic system

2шт.

78

32978

PLATE ASSY.

CLAMP - tube (74923 & 74927 mt'g.), tool bar hydraulic system

1шт.

79

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632), Tool bar hydraulic system Hex, 5/16"-24 x 1 1/4", G5

1шт.

80

92-5

LOCK WASHER,5/16"

(48445), tool bar hydraulic system 5/16"

1шт.

81

31665

COLLAR CLAMP

CLAMP - tube (74923 & 74927 mt'g.), tool bar hydraulic system

1шт.

82

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.) (45635), tool bar hydraulic system

1шт.

83

92-5

LOCK WASHER,5/16"

(48445), tool bar hydraulic system 5/16"

1шт.

84

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), tool bar hydraulic system

1шт.

85

71603

SPACER - tube clamp, tool bar hydraulic system

1шт.
