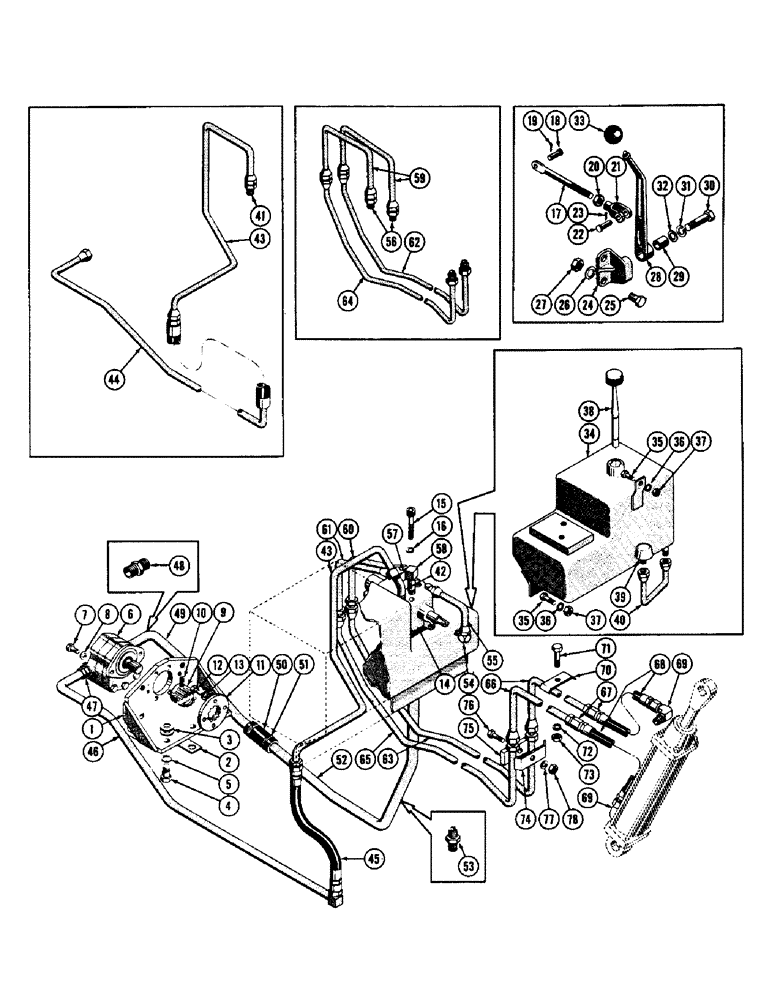

Запчасти Case 600 (232) - TOOL BAR HYDRAULIC INSTALLATION, VALVE, LEVER, PUMP, TUBES, HOSES, FITTINGS (UP TO S/N 7060799) (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - hydraulic pump mt'g. system

1шт.

2

33394

SHIM - front engine mt'g. hydraulic pump system

1шт.

3

33496

BRAKE LINING

SHIM - .010 thick, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31615

CAP

PUMP ASS'Y. - hydraulic (See page #284 for breakdown), hydraulic pump system

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(31615 mt'g.) (45056), hydraulic pump system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

(48446), hydraulic pump system 3/8"

2шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

16130

TUBE

VALVE ASS'Y. - hydraulic control (See page #300 for breakdown), lever and valve system

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (16130 mt'g.) (47570), lever and valve system

2шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

17

32361

SNAP RING

LINK - valve control and lever system

1шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (48674), Lever and valve system 1/16" x 3/4"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

1шт.

24

32322

BRACKET - control lever, lever and valve system

1шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (32322 mt'g.) (45656), lever and valve system

2шт.

26

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

28

33446

LEVER - valve control, lever and valve system

1шт.

29

32362

WASHER

- spacer, lever and valve system

1шт.

30

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HCS 1/2-20 NF x 2-1/4 (33446 mt'g.) (45711), lever and valve system

1шт.

31

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

1шт.

32

195-33

WASHER,1/2"

- plain (48428), lever and valve system

1шт.

33

31375

WASHER

BALL - grip, lever and valve system

1шт.

34

33364

TANK ASS'Y. - hydraulic, primary system

1шт.

35

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(33364 mt'g.) (45654), primary hydraulic system Hex, 3/8"-24 x 3/4", G5, Full Thd

3шт.

36

92-6

LOCK WASHER,3/8"

(48446), primary hydraulic system 3/8"

3шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), primary hydraulic system

3шт.

38

35072

FILLER CAP & GAUGE STICK ASS'Y., primary hydraulic system

1шт.

39

31543

BREATHER

FILTER - breather, primary hydraulic system

1шт.

40

19235

TUBE ASS'Y. - breather filter, primary hydraulic system

1шт.

41

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1/2 NP (Used up to serial #10-21-56) (50027), primary hydraulic system

1шт.

42

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 3/4 JIC to 1/2 NP (Used from serial #10-21-56) (50147), primary hydraulic system

1шт.

43

33404

TUBE ASS'Y. - valve to pump (Order with ref. #41 for models prior to serial #10-21-56), primary hydraulic system

1шт.

44

33403

BRAKE LINING

HOSE & TUBE ASS'Y. - valve to pump (Used up to serial #7060110), primary hydraulic system

1шт.

45

35964

HOSE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system

1шт.

46

35962

SUPPORT

TUBE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system

1шт.

47

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JICto 3/4 NP (50026), primary hydraulic system

1шт.

48

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1" NP (50030), primary hydraulic system

1шт.

49

33401

TUBE ASS'Y. - pump to tank, primary hydraulic system

1шт.

50

32798

HOSE

- low pressurel, primary hydraulic system

1шт.

51

49766

AUGER

CLAMP - hose, primary hydraulic system

2шт.

52

39239

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

53

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

54

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

55

19243

TUBE ASS'Y. - valve to tank, primary hydraulic system

1шт.

56

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #7-25-57), tool bar hydraulic system

2шт.

57

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (Used from serial #7-25-57) (50114), tool bar hydraulic system

1шт.

58

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (Used from serial #7-25-57) (50571), tool bar hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

59

33775

TUBE

ASS'Y. - valve to cylinder (Used up to serial #7-25-57), tool bar hydraulic system

2шт.

60

35992

SPRING

TUBE ASS'Y. - valve to cylinder (Used from serial #7-25-57), tool bar hydraulic system

1шт.

61

35994

SPRING

TUBE ASS'Y. - valve to cylinder (Used from serial #7-25-57), tool bar hydraulic system

1шт.

62

19182

TUBE ASS'Y. - valve to cylinder (Used up to serial #7-25-57), tool bar hydraulic system

1шт.

63

35593

SHAFT

TUBE ASS'Y. - valve to cylinder (Used from serial #7-25-57), tool bar hydraulic system

1шт.

64

19183

TUBE ASS'Y. - valve to cylinder (Used up to serial #7-25-57), tool bar hydraulic system

1шт.

65

35591

DISC

TUBE ASS'Y. - valve to cylinder (Used from serial #7-25-57), tool bar hydraulic system

1шт.

66

19184

TUBE ASS'Y. - valve to cylinder, tool bar hydraulic system

2шт.

67

221-338

COUPLING,Pipe, 1/2" NPT

- pipe, tool bar hydraulic system

2шт.

68

37899

HOSE ASS'Y. - valve to cylinder, tool bar hydraulic system

2шт.

69

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), tool bar hydraulic system

2шт.

70

31665

COLLAR CLAMP

CLAMP - tube (19184 mt'g.), tool bar hydraulic system

1шт.

71

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCs 5/16-24 NF x 1-1/2 (31665 mt'g.) (45633), tool bar hydraulic system

1шт.

72

92-5

LOCK WASHER,5/16"

(48445), tool bar hydraulic system 5/16"

1шт.

73

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), tool bar hydraulic system

1шт.

74

31665

COLLAR CLAMP

CLAMP - tube (35591 & 35593 mt'g.), tool bar hydraulic system

1шт.

75

71603

SPACER, tool bar hydraulic system

1шт.

76

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.) (45635), tool bar hydraulic system

1шт.

77

92-5

LOCK WASHER,5/16"

(48445), tool bar hydraulic system 5/16"

1шт.

78

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), tool bar hydraulic system

1шт.
