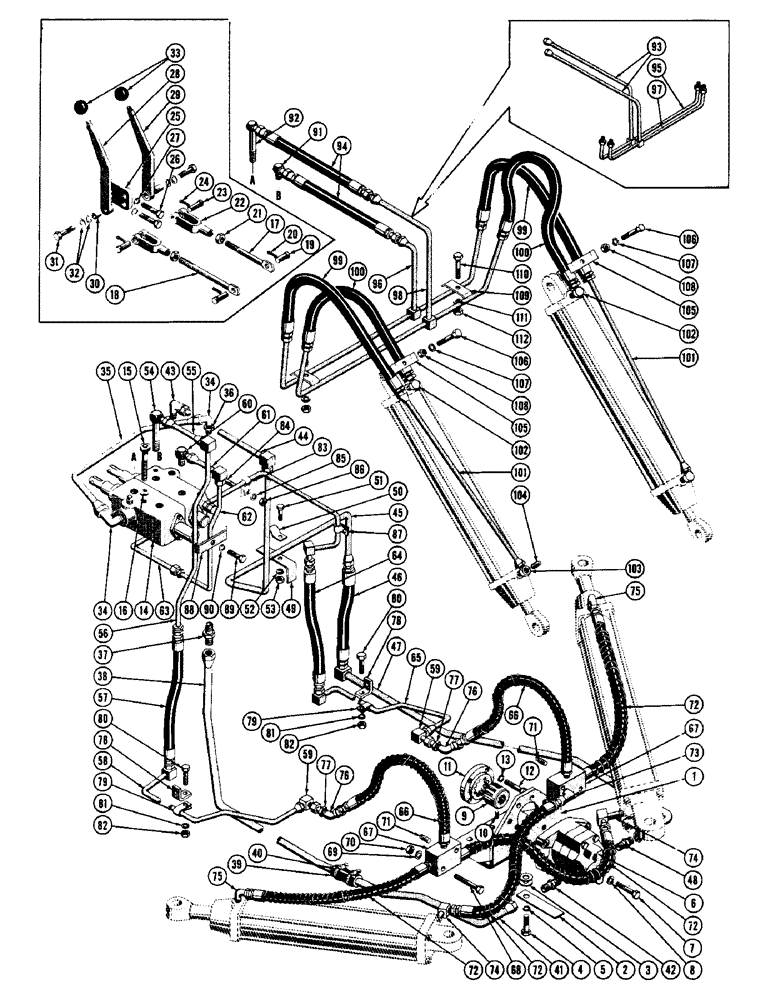

Запчасти Case 600 (184) - HYDRAULIC ANGLE DOZER HYDRAULIC INSTALLATION (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - hydraulic pump mt'g. system

1шт.

2

33394

SHIM - front engine mt'g., hydraulic pump system

1шт.

3

33496

BRAKE LINING

SHIM - .010 thick, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31614

PUMP ASS'Y. - hydraulic (See figure #282 for breakdown), hydraulic pump system

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mt'g.) (45110), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

8

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

16400

VALVE ASS'Y. - hydraulic control (See figure #294 for breakdown), lever system

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (16400 mt'g.) (47570), lever and valve system

3шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

3шт.

17

32361

SNAP RING

LINK - valve control, lever system

1шт.

18

35620

SHIM

LINK - valve control, lever system

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Lever and valve system 1/16" x 1/2"

2шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

22

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

2шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

2шт.

25

32322

BRACKET - control lever and valve system

1шт.

26

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

28

38864

LEVER - valve control system

1шт.

29

38866

LEVER - valve control system

1шт.

30

32362

WASHER

- spacer, lever and valve system

2шт.

31

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38864 7 38866 mt'g.) (45709), lever and valve system

2шт.

32

195-33

WASHER,1/2"

- plain (48428), lever and valve system

2шт.

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

33

31375

WASHER

BALL - grip, lever and valve system

2шт.

34

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

35

R-10979

TUBE ASS'Y. - valve to tank, primary hydraulic system

1шт.

36

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

37

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

38

39239

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

39

32798

HOSE

- low pressure, primary hydraulic system

1шт.

40

49766

AUGER

CLAMP - hose, primary hydrualic system

2шт.

41

33401

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

42

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

43

221-563

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

44

R-10975

TUBE ASS'Y. - valve inlet, primary hydraulic system

1шт.

45

R-10834

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

46

R-10853

HOSE ASS'Y. - valve to pump, primary hydraulic system

1шт.

47

35962

SUPPORT

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

48

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

49

33925

BRACKET, primary hydraulic system

1шт.

50

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (R-10834 mt'g.), primary hydraulic system

1шт.

51

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mt'g.) (45629), primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

52

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

53

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

54

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree extra long male, 1/2 JIC to 1/2 NP (50577), angling cylinder hydraulic system

1шт.

55

R-11139

TUBE ASS'Y. - valve to angling cylinder, R.H. hydraulic system

1шт.

56

R-11039

TUBE ASS'Y. - valve to angling cylinder, R.H. hydraulic system

1шт.

57

R-11109

HOSE ASS'Y. - valve to angling cylinder, R.H. hydraulic system

1шт.

58

R-11043

TUBE ASS'Y. - valve to angling cylinder, R.H. hydraulic system

1шт.

59

R-11153

ELBOW - 90 degree swivel, angling cylinder hydraulic system

2шт.

60

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112), angling cylinder hydraulic system

1шт.

61

R-11136

TUBE ASS'Y. - valve to angling cylinder, L.H. hydraulic system

1шт.

62

R-11104

TUBE ASS'Y. - valve to angling cylinder, L.H. hydraulic system

1шт.

63

R-11106

TUBE ASS'Y. - valve to angling cylinder, L.H. hydraulic system

1шт.

64

R-11109

HOSE ASS'Y. - valve to angling cylinder, L.H. hydraulic system

1шт.

65

R-11041

TUBE ASS'Y. - valve to angling cylinder, L.H. hydraulic system

1шт.

66

R-11055

HOSE ASS'Y. - valve to angling cylinder hydraulic system

2шт.

67

R-10960

BLOCK - junction, angling cylinder hydraulic system

2шт.

68

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS 3/8-24 x 3 (R-10960 mt'g.) (45664), angling cylinder hydraulic system

4шт.

69

92-6

LOCK WASHER,3/8"

(48446), angling cylinder hydraulic system 3/8"

4шт.

70

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), angling cylinder hydraulic system

2шт.

71

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - pipe, sq, socket hd., 1/2 NP, anglind cylinder hydraulic system

2шт.

72

R-11052

HOSE ASS'Y. - junction block to angling cylinders hydraulic system

4шт.

73

217-23

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

- 90 degree street, 1/2 NP, angling cylinder hydraulic system

1шт.

74

R-11046

ELBOW - 90 degree special long, 1/2 JIC to 1/2 NP, angling cylinder hydraulic system

2шт.

75

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112), angling cylinder hydraulic system

2шт.

76

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree bulkhead, 1/2 JIC to 1/2 JIC (50540), angling cylinder hydraulic system

2шт.

77

R-11743

NUT - special bulkhead mt'g., angling cylinder hydraulic system

2шт.

78

R-11110

BRACKET - tube clamp, angling cylinder hydraulic system

2шт.

79

49833

CLAMP

- tube (R-11041 & R-11043 mt'g.), angling cylinder hydraulic system

2шт.

80

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (49833 mt'g.) (45604), angling cylinder hydraulic system

2шт.

81

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), Angling cylinder hydraulic system 1/4"

2шт.

82

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100), angling cylinder hydraulic system

2шт.

83

49838

CLAMP

- tube (R-11106 mt'g.), angling cylinder hydraulic system

1шт.

84

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (49838 mt'g.) (45656), angling cylinder hydraulic system

1шт.

85

92-6

LOCK WASHER,3/8"

(48446), angling cylinder hydraulic system 3/8"

1шт.

86

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), angling cylinder hydraulic system

1шт.

87

49836

CLAMP

- tube (R-11106 mt'g.), angling cylinder hydraulic system

1шт.

88

31665

COLLAR CLAMP

CLAMP - tube (R-11104 & R-11039 mt'g.), angling cylinder hydraulic system

1шт.

89

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(31665 mtg.) (45632), Angling cylinder hydraulic system Hex, 5/16"-24 x 1 1/4", G5

1шт.

90

92-5

LOCK WASHER,5/16"

(48445), angling cylinder hydraulic system 5/16"

1шт.

91

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), hydraulic lift cylinder system

1шт.

92

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), hydraulic lift cylinder system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

93

39231

PIN

TUBE ASS'Y. - valve to manifold (Used up to serial #7060804), hydraulic lift cylinder system

2шт.

94

19259

HOSE ASS'Y. - valve to manifold (Used from serial #7060804), hydraulic lift cylinder system

2шт.

95

39236

TUBE ASS'Y. - manifold (Used up to serial #7060804), hydraulic lift cylinder system

1шт.

96

74823

TUBE ASS'Y. - manifold (Used from serial #7060804), hydraulic lift cylinder system

1шт.

97

39233

SPACER

TUBE ASS'Y. - manifold (Used up to serial #7060804), hydraulic lift cylinder system

1шт.

98

74824

TUBE ASS'Y. - manifold (Used from serial #7060804), hydraulic lift cylinder system

1шт.

99

35646

HOSE

ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

100

18950

HOSE ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

101

35972

HYD TUBE,24.812 mm Length

TUBE ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

102

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), hydraulic lift cylinder system

3шт.

103

33888

ELBOW - 90 degree special, hydraulic lift cylinder system

1шт.

104

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. head, 1/8 NP (41820), hydraulic lift cylinder system

1шт.

105

31665

COLLAR CLAMP

CLAMP - hose (35646 & 18950 mt'g.), hydraulic lift cylinder system

4шт.

106

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) 45634), Hydraulic lift cylinder system Hex, 5/16"-24 x 1 3/4", G5

2шт.

107

92-5

LOCK WASHER,5/16"

(48445), hydraulic lift cylinder system 5/16"

2шт.

108

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), hydraulic lift cylinder system

2шт.

109

32978

PLATE ASSY.

CLAMP - tube (74823 & 74824 mt'g.) (45633), hydraulic lift cylinder system

2шт.

110

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633), hydraulic lift cylinder system

2шт.

111

92-5

LOCK WASHER,5/16"

(48445), hydraulic lift cylinder system 5/16"

2шт.

112

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), hydraulic lift cylinder system

2шт.
