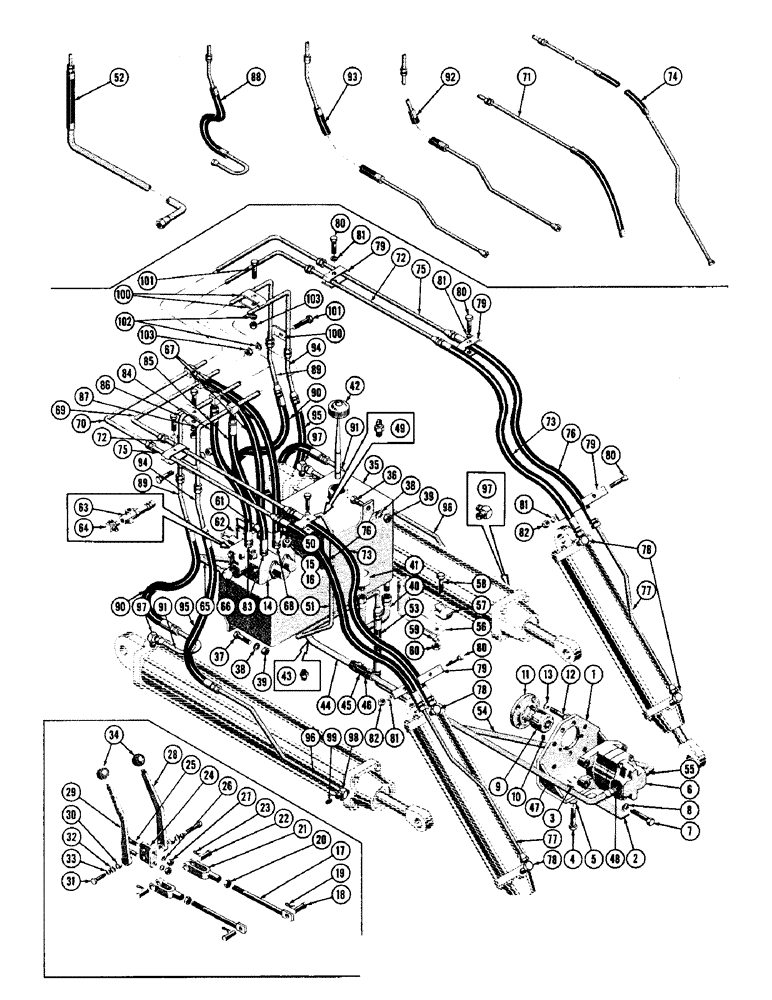

Запчасти Case 600 (148) - TERRALOADR HYDRAULIC INSTALLATION, PUMP, VALVE, HOSES, TUBING, FITTING (USED UP TO S/N 7060799) (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - hydraulic pump mt'g. system

1шт.

2

33394

SHIM - front engine mt'g., hydraulic pump system

1шт.

3

NLS

NO LONGER SERVICED

SHIM - .010 thick, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31614

PUMP ASS'Y. - hydraulic (See figure #282 for breakdown) pump system

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mt'g.) (45110), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

8

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

16400

VALVE ASS'Y. - hydraulic control (See figure #294 for breakdown), lever and valve system

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (16400 mt'g.) (47570), lever and valve system

3шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

3шт.

17

32361

SNAP RING

LINK - valve control, lever system

2шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

2шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Lever and valve system 1/16" x 1/2"

2шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

2шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

2шт.

24

32322

BRACKET - control, lever and valve system

1шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (32322 mt'g.) (45656), lever and valve system

2шт.

26

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

28

33446

LEVER - valve control system

1шт.

29

33447

LEVER - valve control system

1шт.

30

NLS

NO LONGER SERVICED

BUSHING - spacer, lever and valve system

2шт.

31

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS 1/2-20 NF x 2-1/4 (33446 & 33447 mt'g.) (45711), lever and valve system

2шт.

32

195-33

WASHER,1/2"

- plain (48428), lever and valve system

2шт.

33

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

34

CAS31375

KNOB

BALL - grip, lever and valve system

2шт.

35

33364

TANK ASS'Y. - hydraulic, primary system

1шт.

36

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (33364 mt'g.) (45656), primary hydraulic system

1шт.

37

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(33364 mt'g.) (45654), primary hydraulic system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

(48446), primary hydraulic system 3/8"

3шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), primary hydraulic system

3шт.

40

19235

TUBE ASS'Y. - breather filter, primary hydraulic system

1шт.

41

31543

BREATHER

FILTER - breather, primary hydraulic system

1шт.

42

35072

FILTER CAP & GAUGE STICK ASS'Y., primary hydraulic system

1шт.

43

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

44

39239

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

45

32798

HOSE

- low pressure, primary hydraulic system

1шт.

46

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, primary hydraulic system

2шт.

47

33401

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (55029), primary hydraulic system

1шт.

49

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1/2 NP (Used up to serial #10-21-56) (50027), primary hydraulic system

1шт.

50

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 3/4 JIC to 1/2 NP (Used from serial #10-21-56), primary hydraulic system

1шт.

51

33404

TUBE ASS'Y. - valve to pump (Order with ref. #50 prior to serial #10-21-56), primary hydraulic system

1шт.

52

33403

BRAKE LINING

HOSE & TUBE ASS'Y. - valve to pump (Used up to serial #7060110), primary hydraulic system

1шт.

53

35964

HOSE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system

1шт.

54

35962

SUPPORT

TUBE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system

1шт.

55

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

56

33925

BRACKET, primary hydraulic system

1шт.

57

49855

CLAMP

- tube (33404 mt'g.), primary hydraulic system

1шт.

58

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (49855 mt'g.) (45631), primary hydraulic system

1шт.

59

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.
