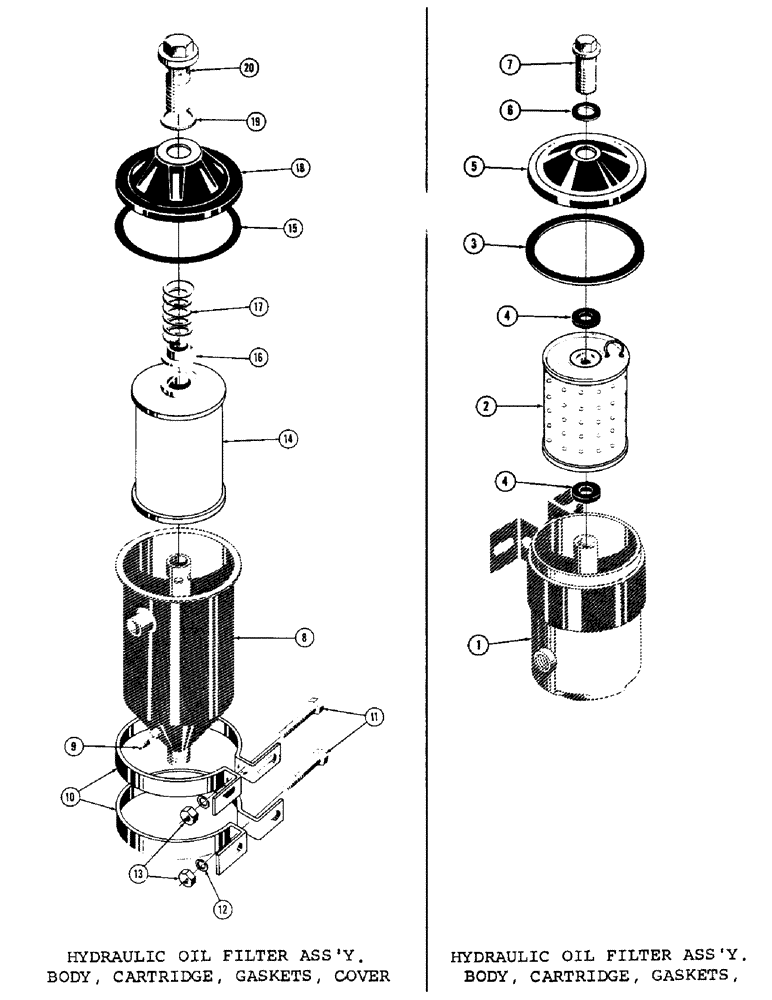

Запчасти Case 600 (104) - HYDRAULIC OIL FILTER ASSEMBLY, BODY, CARTRIDGE, GASKETS, COVER (FROM S/N 2-6-56 & UP TO S/N 6-22-56) (07) - HYDRAULIC SYSTEM

31176

FILTER ASS'Y. - hydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

2

10017

CATRIDGE - oil filter

1шт.

3

10048

GASKET - filter cover

1шт.

4

10049

GASKET - filter cartridge

2шт.

5

10047

PINION

COVER - oil filter

1шт.

6

10054

COLLAR

GASKET - filter cover screw

1шт.

7

11921

COLLAR

SCREW - oil filter cover

1шт.

34634

FILTER ASS'Y. - hydraulic oil, used from s/n 6-22-56

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - filter, used from s/n 6-22-56

1шт.

9

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - drain (41823), used from s/n 6-22-56

1шт.

10

35631

BRACKET - oil filter body, used from s/n 6-22-56

2шт.

11

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS 3/8-24 NF x 3 (45664), used from s/n 6-22-56

2шт.

12

92-6

LOCK WASHER,3/8"

(48446), used from s/n 6-22-56 3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), used from s/n 6-22-56

2шт.

14

51200336

FILTER, ELEMENT

CARTRIDGE - oil filter, used from s/n 6-22-56

1шт.

15

34458

- filter cover, used from s/n 6-22-56

1шт.

16

35632

CUP - sealing, used from s/n 6-22-56

1шт.

17

70615

SPRING

- oil filter, used from s/n 6-22-56

1шт.

18

35634

COVER - oil filter, used from s/n 6-22-56

1шт.

19

35635

GASKET - cover bolt, used from s/n 6-22-56

1шт.

20

70616

BOLT ASS'Y. & RELIEF VALVE - cover retaining, used from s/n 6-22-56

1шт.
