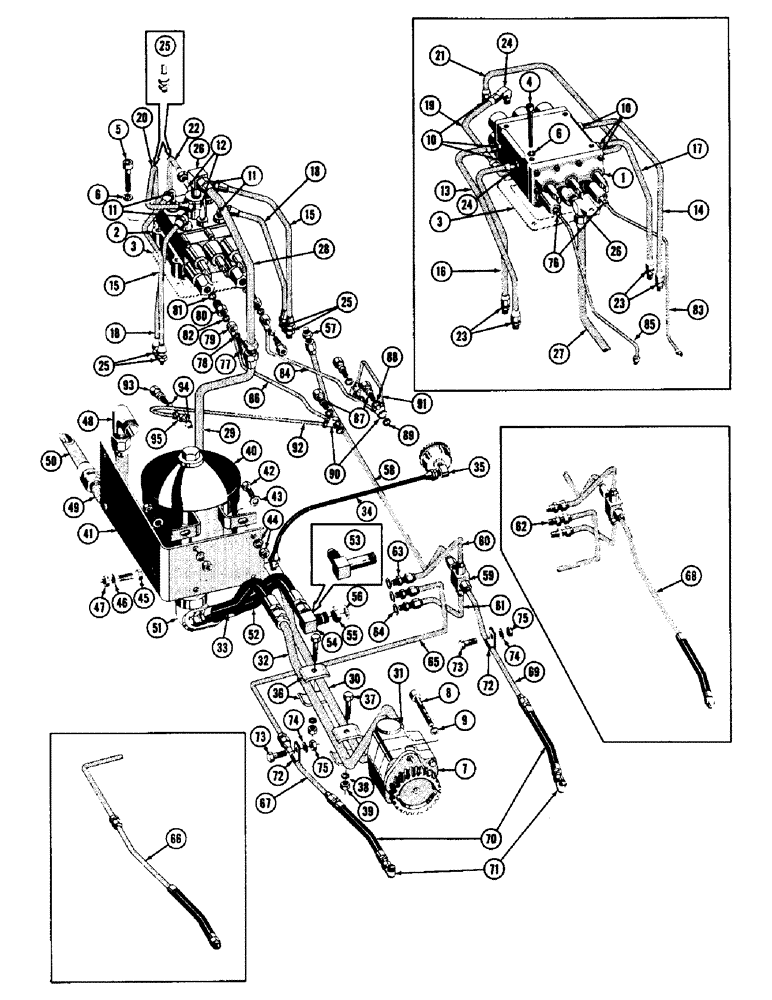

Запчасти Case 600 (096) - HYDRAULIC SYSTEM, PUMP, VALVE, TUBING, BRAKE LINES, FITTINGS, (FROM S/N 6-22-56 & UP TO S/N 7060776) (07) - HYDRAULIC SYSTEM

1

31282

SPARE PART VALVE ASSY. - trans control (Used up to S/N 7060674) (See figure #288 for breakdown), hydraulic system

1шт.

2

35660

BEARING

VALVE ASSY. - trans. control (Used from S/N 7060674) (See figure #290 for breakdown), hydraulic system

1шт.

3

REF

INSTRUCTION

GASKET - valve mt'g. (See page #64 ref. #49), transmission hydraulic system

1шт.

4

47556

CHAIN

SHCS 3/8-24 NF x 4-1/2 (Used up to S/N 7060674) (31282 mt'g.), transmission hydraulic system

4шт.

5

62-632

SPARE PART SHCS 3/8-24 NF x 2 (Used from S/N 7060674) (35660 mt'g.), transmission hydraulic system

4шт.

6

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

4шт.

7

33153

HYDRAULIC PUMP

ASSY (See figure #280 for breakdown), transmission hydraulic system

1шт.

8

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(33153 mt'g.) (45066), transmission hydraulic system

1шт.

9

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male 3/8 JIC to 1/4 NP (Used up to S/N 7060674), transmission hydraulic system

6шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used from S/N 7060674) (50106), transmission hydraulic system

4шт.

12

50554

X

ELBOW - 90 degree long male, 3/8 JIC to 1/4 NP (Used from S/N 7060674), transmission hydraulic system

2шт.

13

19189

TUBE ASSY. - valve to trans. (RH) (Used up to S/N 7060764) hydraulic system

1шт.

14

19187

TUBE ASSY. - valve to trans (LH) (Used up to S/N 7060674) hydraulic system

1шт.

15

38101

TUBE ASSY. - valve to trans (Used from S/N 7060674) hydraulic system

2шт.

16

1346622C1

SHAFT

TUBE ASSY. - valve to trans (Used up to S/N 7060674) hydraulic system

1шт.

17

19188

TUBE ASSY. - valve to trans (LH) (Used up to S/N 7060674) hydraulic system

1шт.

18

38093

TUBE ASSY. - valve to trans (Used from S/N 7060674) hydraulic system

2шт.

19

1346623C1

SHAFT

TUBE ASSY. - valve to trans (RH) (Used up to S/N 7060674) hydraulic system

1шт.

20

38095

HUB

TUBE ASSY. - valve to trans (RH) (Used form S/N 7060674) hydraulic system

1шт.

21

1346588C1

SHAFT

TUBE ASSY. - valve to trans (LH) (Used up to S/N 7060674) hydraulic system

1шт.

22

38097

SPARE PART

TUBE ASSY. - valve to trans (LH) (Used from S/N 7060674) hydraulic system

1шт.

23

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used up to serial 7060674) (50016), transmission hydraulic system

4шт.

24

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used up to S/N 7060674) (50106), transmission hydraulic system

2шт.

25

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used from S/N 7060674) (50016), transmission hydraulic system

6шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114), transmission hydraulic system

1шт.

27

33519

SPARE PART TUBE ASSY. - valve to pump (Used up to S/N 7060674), transmission hydraulic system

1шт.

28

38105

TUBE ASSY. - valve to pump (Used from S/N 7060674), transmission hydraulic system

1шт.

29

38099

TUBE ASSY. - valve to pump (Used from S/N 7060674), transmission hydraulic system

1шт.

30

33518

GUARD

TUBE ASSY. - valve to pump, transmission hydraulic system

1шт.

31

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038), transmission hydraulic system

2шт.

32

35564

COLLAR

TUBE ASSY. - pump to oil filter, transmission hydraulic system

1шт.

33

35577

SPARE PART HOSE ASSY. - pump to oil filter, transmission hydraulic system

1шт.

34

33727

HOSE

ASSY. - oil pressure gauge, transmission hydraulic system

1шт.

35

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

Female, 1/4 JIC to 1/8 NP (50162), transmission hydraulic system

1шт.

36

32978

PLATE ASSY.

Clamp (35564 & 33518 mt'g.), transmission hydraulic system

4шт.

37

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

(32978 mt'g.) (45633), transmission hydraulic system

2шт.

38

92-5

LOCK WASHER,5/16"

Transmission hydraulic system

2шт.

39

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101), transmission hydraulic system

2шт.

40

34634

SPARE PART FILTER ASSY. - hyd. oil (See figure #104 for breakdown), system

1шт.

41

34860

SPARE PART BRACKET - oil filter system

1шт.

42

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(34634 mt'g.) (45657), oil filter system

4шт.

43

195-25

WASHER,3/8"

(48426), oil filter system

4шт.

44

92-6

LOCK WASHER,3/8"

(48446), oil filter system

4шт.

25-116

NUT,Hex, 3/8"-24, G5

(48102), oil filter system

4шт.

45

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(34860 mt'g.) (45759), oil filter system

3шт.

46

92-10

LOCK WASHER,5/8"

(48450), Oil filter system

3шт.

47

25-1110

NUT,5/8"-18, G5

Reg. SF hex (48106), oil filter system

3шт.

48

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

Male, 1 JIC to 1 NP (50119), oil filter system

1шт.

49

35579

SPARE PART TUBE ASSY. - oil filter to trans system

1шт.

50

34640

SET SCREW,Hex Soc, M8 x 10, Cone Pt

PIPE ASSY. - trans. outlet, oil filter system

1шт.

51

34630

SPARE PART MANIFOLD, oil filter system

1шт.

52

35577

SPARE PART HOSE ASSY. - oil filter to t/c, converter hydraulic system

1шт.

53

218-499

SPARE PART 90 degree long male, 5/8 JIC to 1/2 NP (Used up to S/N 6-28-57) (50556), converter hydraulic system

1шт.

54

D20071

ELBOW UNION

Union Elbow Male (Special) (Used from S/N 6-28-57), converter hydraulic system

1шт.

55

50875

NUT

Bulkhead (Used from S/N 6-28-57), converter hydraulic system

1шт.

56

49401

X

O-RING SEAL - "O" ring (Used from S/N 6-28-57), converter hydraulic system

1шт.

57

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038), converter hydraulic system

1шт.

58

33413

TUBE ASSY. - trans. to tee, converter hydraulic system

1шт.

59

218-665

TEE

Outlet, 5/8 JIC to 3/8 JIC (50000), converter hydraulic system

1шт.

60

33414

BRAKE LINING

TUBE ASSY. - tee to torque converter (Top) hydrlaulic system

1шт.

61

33415

SPARE PART TUBE ASSY. - tee to torque converter (Bottom) hydraulic system

1шт.

62

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used up to S/N 6-28-57) (50016), converter hydraulic system

3шт.

63

50871

X

HYD CONNECTOR CONNECTOR - male (Special) (Used from S/N 6-28-57), converter hydraulic system

3шт.

64

49400

X

O-RING SEAL - "O" ring (Used from S/N 6-28-57), converter hydraulic system

3шт.

65

33410

TUBE ASSY. - t/c to sump (RH), converter hydraulic system

1шт.

66

33411

SPARE PART HOSE & TUBE ASSY. - t/c to sump (RH) (Used up to S/N 7060110), converter hydraulic system

1шт.

67

35951

WASHER

TUBE ASSY. - t/c to sump (RH) (Used from S/N 7060110), converter hydraulic system

1шт.

68

33412

SPARE PART HOSE & TUBE ASSY. - tee to sump (LH) (Used up to S/N 7060110), converter hydraulic system

1шт.

69

35953

KIT

TUBE ASSY. - tee to sump (LH) (Used from S/N 7060110), converter hydraulic system

1шт.

70

35955

NUT

ASSY. - to sump (Used from S/N 7060110), converter hydraulic system

2шт.

71

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), converter hydraulic system

2шт.

72

33449

CLAMP

Tube (35953 & 35951 mt'g.), converter hydraulic system

2шт.

73

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(33449 mt'g.) (45656), converter hydraulic system

2шт.

74

92-6

LOCK WASHER,3/8"

(48446), converter hydraulic system

2шт.

75

25-116

NUT,Hex, 3/8"-24, G5

(48102), converter hydraulic system

2шт.

76

33256

SPACER

FITTING - 3/8-24 NF to 1/8 NP (Used up to S/N 7060674), brake hydraulic system

2шт.

77

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection (Used from S/N 7060674), brake hydraulic system

2шт.

78

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection (Used from S/N 7060674), brake hydraulic system

2шт.

79

50861

FITTING

3/16 tube (Used from S/N 7060674), brake hydraulic system

2шт.

80

72125

ADAPTER

Brake tube (Used from S/N 7060674), brake hydraulic system

2шт.

81

49399

X

SEAL - "O" ring (Used from S/N 7060674), brake hydraulic system

2шт.

82

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection (Used from S/N 7060674), brake hydraulic system

2шт.

83

33249

PLATE

SPARE PART TUBE ASSY. - valve to master cylinder (LH) (Used up to S/N 7060674), brake hydraulic system

1шт.

84

38091

TRACK ROD END

TUBE ASSY. - valve to master cylinder (LH) (Used from S/N 7060674), brake hydraulic system

1шт.

85

33253

TUBE

SPACER TUBE ASSY. - valve to master cylinder (RH) (Used up to S/N 7060674), brake hydraulic system

1шт.

86

38089

TUBE ASSY. - valve to master cylinder (RH) (Used from S/N 7060674), brake hydraulic system

1шт.

87

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

88

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection, brake hydraulic system

2шт.

89

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

90

51200243

FITTING

Master cylinder, brake hydraulics system

2шт.

91

NLS

NO LONGER SERVICED

TUBE ASSY. - LH master cylinder to brake hydraulic system

1шт.

92

33251

TUBE

KNIFE GUIDE TUBE ASSY. - RH master cylinder to brake hydraulic system

1шт.

93

33258

KNIFE

SPARE PART BOLT - brake hydraulic system

2шт.

94

33257

SPACER

GASKET - copper, brake hydraulic system

4шт.

95

33259

SPARE PART FITTING - brake hydraulic system

2шт.
