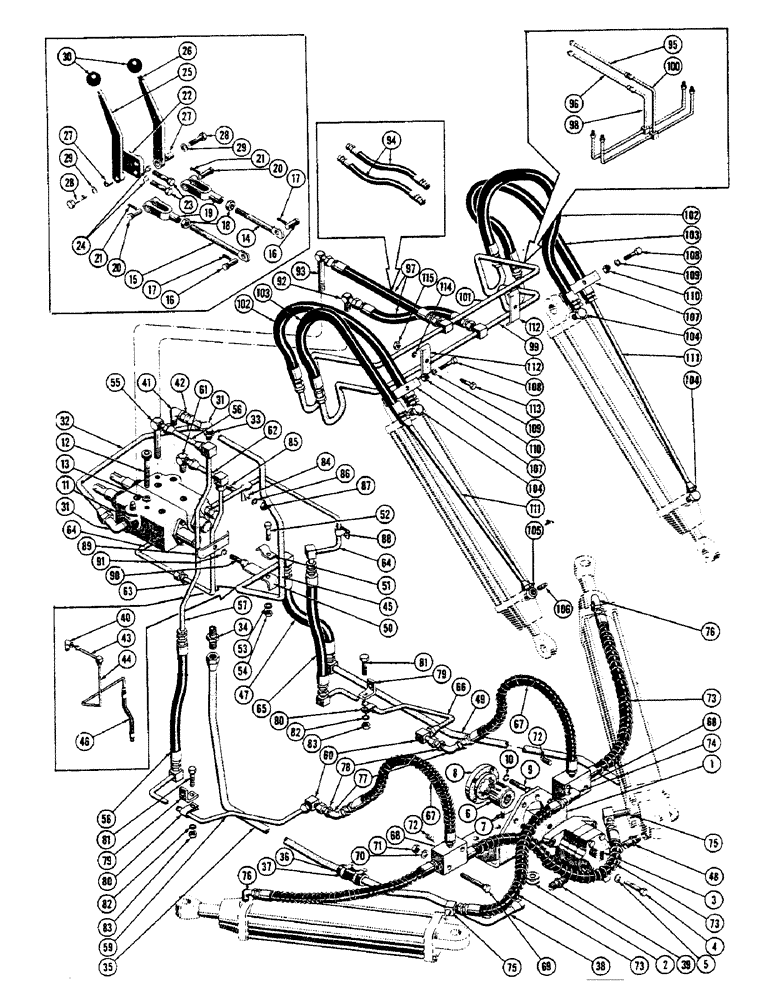

Запчасти Case 600 (198) - HYD. ANGLE DOZER HYDRAULIC INST., (USED FROM SERIAL #7060799 (07) - HYDRAULIC SYSTEM

1

33430

PAD

BRACKET ASS'Y - pump mtg., hydraulic system

1шт.

2

NLS

NO LONGER SERVICED

SHIM - .010 thick, hydraulic pump system

1шт.

3

31614

PUMP ASS'Y - hyd. (See Figure #298 for breakdown) pump system

1шт.

4

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mtg.) (45158), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

5

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

6

30480

X

COUPLING - male, hydraulic pump system

1шт.

7

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mtg.) (47306), hydraulic pump system

1шт.

8

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mtg.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

11

16400

VALVE ASS'Y - hydraulic control (See Figure #320 for breakdown), lever system

1шт.

12

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS 1/2-20 NF x 4 (16400 mtg.) (45718), lever and valve system

3шт.

13

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

3шт.

14

32361

SNAP RING

LINK - valve control, lever system

1шт.

15

35620

SHIM

LINK - valve control, lever system

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

2шт.

17

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (48674), Lever and valve system 1/16" x 3/4"

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

2шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

2шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

2шт.

22

32322

BRACKET - control lever and valve system

1шт.

23

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mtg.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

25

38864

LEVER - valve control, system

1шт.

26

38866

LEVER - valve control, system

1шт.

27

32362

WASHER

- spacer, lever and valve system

2шт.

28

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38864 & 38866 mtg.) (45709), lever and valve system

2шт.

29

195-33

WASHER,1/2"

- plain (48428), lever and valve system

2шт.

30

31375

WASHER

BALL - grip, lever and valve system

2шт.

31

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

32

R10979

TUBE ASS'Y - valve to tank, primary hydraulic system

1шт.

33

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

34

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

35

33402

TUBE ASS'Y - tank to pump (Used up to ser. #7060922), primary hydraulic system

1шт.

R10836

TUBE ASS'Y - tank to pump (Used from ser. #7060922), primary hydraulic system

1шт.

36

32798

HOSE

- low pressure, primary hydraulic system

1шт.

37

39766

SHIELD

CLAMP - hose, primary hydraulic system

2шт.

38

33401

TUBE ASS'Y - tank to pump, primary hydraulic system

1шт.

39

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

40

221-563

ELBOW - 90 degree street, 3/4 NP to 1/2 NP (Used to ser. #7061018), primary hydraulic system

1шт.

41

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP to 1/2 NP (Used from ser. #7061018), primary hydraulic system

1шт.

42

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - 3/4 JIC to 1/2 NP (Used from ser. #7061018), primary hydraulic system

1шт.

43

R10975

TUBE ASS'Y - valve inlet (Used up to ser. #7061018), primary hydraulic system

1шт.

44

R10834

TUBE ASS'Y - valve to pump (Used up to ser. #7061018), primary hydraulic system

1шт.

45

R11501

TUBE ASS'Y - valve to pump (Used from ser. #7061018), primary hydraulic system

1шт.

46

R10853

HOSE ASS'Y - valve to pump (Used up to ser. #7061018), primary hydraulic system

1шт.

47

R11503

HOSE ASS'Y - valve to pump (Used from ser. #7061018), primary hydraulic system

1шт.

48

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

49

35962

SUPPORT

TUBE ASS'Y - valve to pump, primary hydraulic system

1шт.

50

33925

BRACKET - tube clamp support, primary hydraulic system

1шт.

51

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (R11501 mtg.), primary hydraulic system

1шт.

52

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mtg.) (45629), Primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

53

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

54

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

55

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree extra long male, 1/2 JIC to 1/2 NP (50577), angling cylinder hydraulic system

1шт.

56

R11139

TUBE ASS'Y - valve to angling cylinder, R.H. hydraulic system

1шт.

57

R11039

TUBE ASS'Y - valve to angling cylinder, R.H. hydraulic system

1шт.

58

R11109

HOSE ASS'Y - valve to angling cylinder, R.H. hydraulic system

1шт.

59

R11043

TUBE ASS'Y - valve to angling cylinder, R.H. hydraulic system

1шт.

60

R11153

X

ELBOW - 90 degree swivel, angling cylinder hydraulic system

2шт.

61

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112), angling cylinder hydraulic system

1шт.

62

R11136

TUBE ASS'Y - valve to angling cylinder, L.H. hydraulic system

1шт.

63

R11104

TUBE ASS'Y - valve to angling cylinder, L.H. hydraulic system

1шт.

64

R11106

TUBE ASS'Y - valve to angling cylinder, L.H. hydraulic system

1шт.

65

R11109

HOSE ASS'Y - valve to angling cylinder, L.H. hydraulic system

1шт.

66

R11041

TUBE ASS'Y - valve to angling cylinder, L.H. hydraulic system

1шт.

67

R11055

HOSE ASS'Y - valve to angling cylinder hydraulic system

2шт.

68

R10960

BLOCK - junction, angling cylinder hydraulic system

2шт.

69

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS 3/8-24 NF x 3 (R-10960 mtg.) (45664), angling cylinder hydraulic system

4шт.

70

92-6

LOCK WASHER,3/8"

(48446), angling cylinder hydraulic system 3/8"

4шт.

71

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), angling cylinder hydraulic system

2шт.

72

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - pipe, sq. socket hd., 1/2 NP, angling cylinder hydraulic system

2шт.

73

R11052

HOSE ASS'Y - junction block to angling cylinders hydraulic system

4шт.

74

217-23

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

- 90 degree street, 1/2 NP, angling cylinder hydraulic system

1шт.

75

R11046

ELBOW - 90 degree special long, 1/2 JIC to 1/2 NP, angling cylinder hydraulic system

2шт.

76

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112), angling cylinder hydraulic system

2шт.

77

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree bulkhead, 1/2 JIC to 1/2 JIC (50540), angling cylinder hydraulic system

2шт.

78

R11743

X

NUT - special bulkhead mtg, angling cylinder hydraulic system

2шт.

79

R11110

BRACKET - tube clamp, angling cylinder hydraulic system

2шт.

80

49833

CLAMP

- tube (R-11041 & R-11043 mtg.), angling cylinder hydraulic system

2шт.

81

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (49833 mtg.) (45604), angling cylinder hydraulic system

2шт.

82

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), Angling cylinder hydraulic system 1/4"

2шт.

83

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100), angling cylinder hydraulic system

2шт.

84

49838

CLAMP

- tube (R-11106 mtg.), angling cylinder hydraulic system

1шт.

85

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (49838 mtg.) (45656), angling cylinder hydraulic system

1шт.

86

92-6

LOCK WASHER,3/8"

(48446), angling cylinder hydraulic system 3/8"

1шт.

87

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), angling cylinder hydraulic system

1шт.

88

49836

CLAMP

- tube (R-11106 mtg.), angling cylinder hydraulic system

1шт.

89

31665

COLLAR CLAMP

CLAMP - tube (R-11104 & R-11039 mtg.), angling cylinder hydraulic system

1шт.

90

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(31665 mtg.) (45632), Angling cylinder hydraulic system Hex, 5/16"-24 x 1 1/4", G5

1шт.

91

92-5

LOCK WASHER,5/16"

(48445), angling cylinder hydraulic system 5/16"

1шт.

92

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree 5/8 JIC to 1/2 NP (50114), hydraulic lift cylinder system

1шт.

93

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), hydraulic lift cylinder system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

94

19259

HOSE ASS'Y - valve to manifold (Used up to ser. #10-7-57), hydraulic lift cylinder system

2шт.

95

39507

TUBE ASS'Y - valve to manifold (Used from ser. #10-7-57 up to serial #7060802), hydraulic lift cylinder system

1шт.

96

39509

TUBE ASS'Y - valve to manifold (Used from ser. #10-7-57 up to serial #7060802), hydraulic lift cylinder system

1шт.

97

19209

HOSE ASSY.

HOSE ASS'Y - valve to manifold (Used from ser. #7060802), hydraulic lift cylinder system

2шт.

98

74823

TUBE ASS'Y - manifold, lift (Used up to #10-7-57), cylinder system, hydraulic

1шт.

99

39514

TUBE ASS'Y - manifold, lift (Used from #10-7-57) cylinder system, hydraulic

1шт.

100

74824

TUBE ASS'Y - manifold, down (Used up to serial #10-7-57), hydraulic lift cylinder system

1шт.

101

39511

TUBE ASS'Y - manifold, down (Used from ser. #10-7-57), hydraulic lift cylinder system

1шт.

102

18950

HOSE ASS'Y - manifold, to lift cylinder system, hydraulic

2шт.

103

35646

HOSE

ASS'Y - manifold, to lift cylinder system, hydraulic

2шт.

104

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), hydraulic lift cylinder system

3шт.

105

33888

TEE - special 1/8 NP x 1/2 NP x 5/8 JIC, hydraulic lift cylinder system

1шт.

106

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd., 1/8 NP (41820), hydraulic lift cylinder system

1шт.

107

31665

COLLAR CLAMP

CLAMP - tube, hydraulic lift cylinder system

4шт.

108

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Hydraulic lift cylinder system Hex, 5/16"-24 x 1 3/4", G5

2шт.

109

92-5

LOCK WASHER,5/16"

(48445), hydraulic lift cylinder system 5/16"

2шт.

110

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), hydraulic lift cylinder system

2шт.

111

35972

HYD TUBE,24.812 mm Length

TUBE ASS'Y - manifold to lift cylinders system, hydraulic

2шт.

112

32978

PLATE ASSY.

CLAMP - tube, hydraulic lift cylinder system

2шт.

113

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mtg.) (45633), hydraulic lift cylinder system

2шт.

114

92-5

LOCK WASHER,5/16"

(48445), hydraulic lift cylinder system 5/16"

2шт.

115

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), hydraulic lift cylinder system

2шт.
