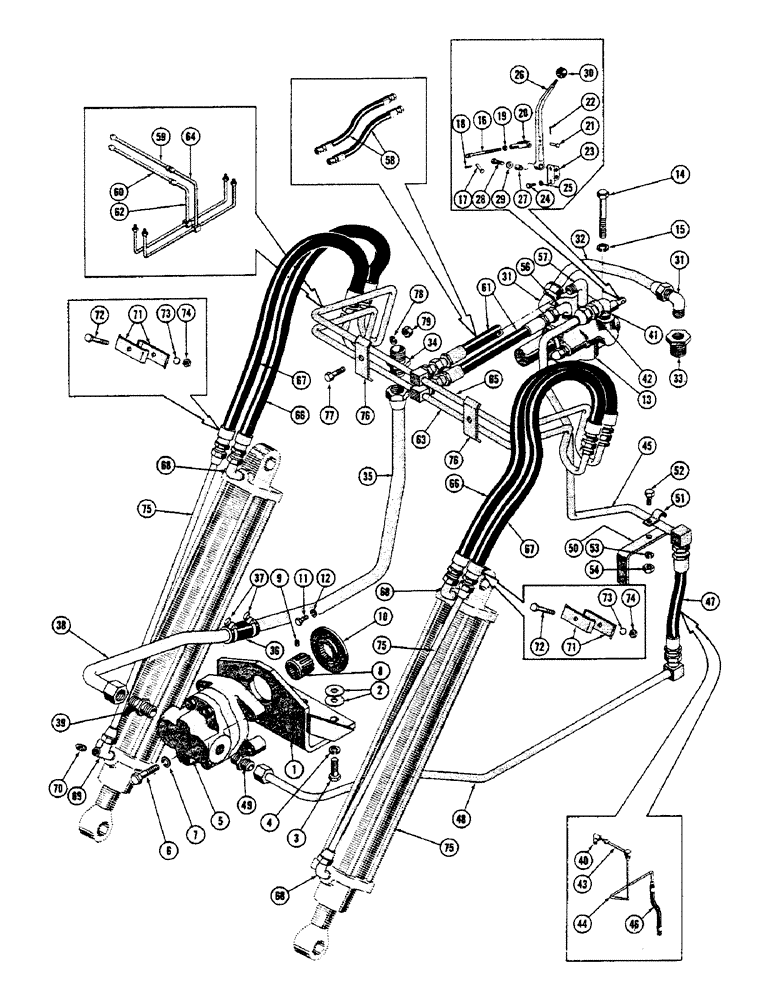

Запчасти Case 600 (184) - HYDRAULIC INSTALLATION, MECH. BULL, ANGLE, OR CROWN & TILT DOZER (USED FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

33430

PAD

BRACKET ASS'Y - pump mtg.

1шт.

2

NLS

NO LONGER SERVICED

SHIM - .010 thick

1шт.

3

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(33430 mtg.) (45158) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

2шт.

5

31614

PUMP ASS'Y - hydraulic (See Figure #298 for breakdown)

1шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mtg.) (45110) Hex, 1/2"-13 x 2", G5

4шт.

7

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

8

30480

X

COUPLING - male

1шт.

9

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mtg.) (47306)

1шт.

10

10493

COUPLING FLANGE

COUPLING - female

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mtg.) (45029) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

13

16130

TUBE

VALVE ASS'Y - hydraulic control (See Figure #326 for breakdown), lever system

1шт.

14

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS 1/2-20 NF x 4 (16130 mtg.) (45618), lever and valve system

2шт.

15

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

16

32361

SNAP RING

LINK - valve control, lever system

1шт.

17

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

1шт.

18

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (48674), Lever and valve system 1/16" x 3/4"

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

1шт.

20

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

1шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

1шт.

22

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

1шт.

23

32322

BRACKET - control, lever and valve system

1шт.

24

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mtg.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

26

38865

LEVER - valve control, lever system

1шт.

27

32362

WASHER

- spacer, lever and valve system

1шт.

28

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38865 mtg.) (45709), lever and valve system

1шт.

29

195-33

WASHER,1/2"

- plain (48428), lever and valve system

1шт.

30

CAS31375

KNOB

BALL - grip, lever and valve system

1шт.

31

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

32

R10979

TUBE ASS'Y - valve to tank, primary hydraulic system

1шт.

33

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

34

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

35

33402

TUBE ASS'Y - tank to pump (Used up to serial #7060922), primary hydraulic system

1шт.

R-10836

TUBE ASS'Y - tank to pump (Used from serial #7060922), primary hydraulic system

1шт.

36

32798

HOSE

- low pressure, primary hydraulic system

1шт.

37

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, primary hydraulic system

2шт.

38

33401

TUBE ASS'Y - tank to pump, primary hydraulic system

1шт.

39

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP, primary hydraulic system

1шт.

40

221-563

ELBOW - 90 degree street, 3/4 NP to 1/2 NP (Used up to ser. #7061018), primary hydraulic system

1шт.

41

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP to 1/2 NP (Used from ser. #7061018), primary hydraulic system

1шт.

42

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 NP to 1/2 NP (Used from ser. #7061018), primary hydraulic system

1шт.

43

R10975

TUBE ASS'Y - valve inlet (Used up to ser. #7061018), primary hydraulic system

1шт.

44

R-10834

TUBE ASS'Y - valve to pump (Used up to ser. #7061018), primary hydraulic system

1шт.

45

R-11501

TUBE ASS'Y - valve to pump (Used from ser. #7061018), primary hydraulic system

1шт.

46

R-10853

HOSE ASS'Y - valve to pump (Used up to ser. #7061018), primary hydraulic system

1шт.

47

R-11503

HOSE ASS'Y - valve to pump (Used from ser. #7061018), primary hydraulic system

1шт.

48

35962

SUPPORT

TUBE ASS'Y - valve to pump, primary hydraulic system

1шт.

49

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

50

33925

BRACKET, primary hydraulic system

1шт.

51

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (R-10834 or R-11501 mtg.), primary hydraulic system

1шт.

52

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mtg.) (45629), Primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

53

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

54

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

RESERVED

1шт.

56

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system

1шт.

57

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), lift cylinder hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

58

19259

HOSE ASS'Y - valve to manifold (Used up to serial #10-7-57), lift cylinder hydraulic system

2шт.

59

39507

TUBE ASS'Y - valve to lift manifold (Used from ser. #10-7-57 up to serial #7060802), lift cylinder hydraulic system

1шт.

60

39509

TUBE ASS'Y - valve to down manifold (Used from ser. #10-7-57 up to serial #7060802), lift cylinder hydraulic system

1шт.

61

19209

HOSE ASSY.

HOSE ASS'Y - valve to manifold (Used from ser. #7060802), lift cylinder hydraulic system

2шт.

62

74823

TUBE ASS'Y - manifold, lift (Used up to 10-7-57), cylinder hydraulic system

1шт.

63

39511

TUBE ASS'Y - manifold down (Used from ser. #10-7-57), lift cylinder hydraulic system

1шт.

64

74824

TUBE ASS'Y - manifold , down (Used up to serial #10-7-57), lift cylinder hydraulic system

1шт.

65

39514

TUBE ASS'Y - manifold lift (Used from ser. #10-7-57) cylinder hydraulic system

1шт.

66

18950

HOSE ASS'Y - manifold to lift cylinder hydraulic system

2шт.

67

35646

HOSE

ASS'Y - manifold to lift cylinder hydraulic system

2шт.

68

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system

3шт.

69

33888

TEE - special 1/8 NP x 1/2 NP x 5/8 JIC, lift cylinder hydraulic system

1шт.

70

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd., 1/8 NP (41820), lift cylinder hydraulic system

1шт.

71

31665

COLLAR CLAMP

CLAMP - tube, lift cylinder hydraulic system

4шт.

72

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Lift cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

2шт.

73

92-5

LOCK WASHER,5/16"

(48445), lift cylinder hydraulic system 5/16"

2шт.

74

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulic system

2шт.

75

35972

HYD TUBE,24.812 mm Length

TUBE ASS'Y - manifold to lift cylinders hydraulic system

2шт.

76

32978

PLATE ASSY.

CLAMP - tube, lift cylinder hydraulic system

2шт.

77

14-534

HHCS - 5/16-24 NF x 1-1/2 (32978 mtg.) (45633), lift cylinder hydraulic system

2шт.

78

92-5

LOCK WASHER,5/16"

(48445), lift cylinder hydraulic system 5/16"

2шт.

79

25-115

NUT,5/16"-24, G5

- reg. SF hex (48101), lift cylinder hydraulic system

2шт.
