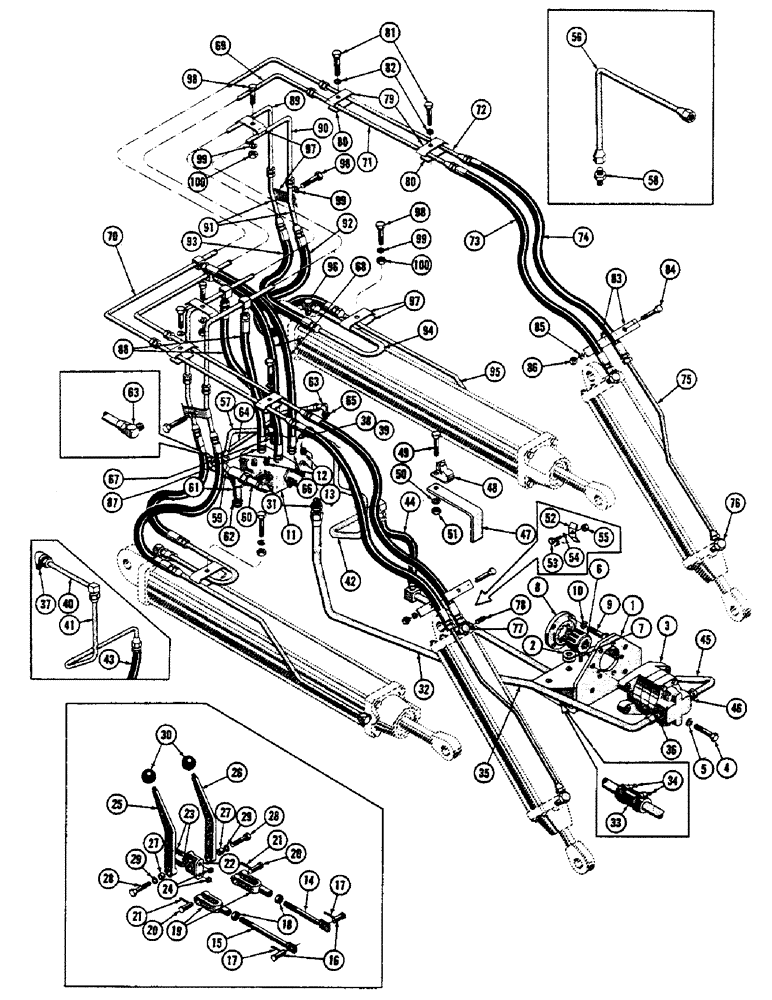

Запчасти Case 600 (166) - TERRALOADR HYDRAULIC INST, PUMP, VALVE, HOSES, TUBING, FITTINGS (USED FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

33430

PAD

BRACKET ASS'Y. - pump mt'g., hydraulic syster

1шт.

2

33496

BRAKE LINING

SHIM - .010 thick, hydraulic pump syster

1шт.

3

31614

PUMP ASS'Y. - hydraulic (See Figure # 298 for breakdown), hydraulic pump system

1шт.

4

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mt'g.) (45158), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

5

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

6

30480

X

COUPLING - male, hydraulic pump system

1шт.

7

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

8

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

11

16400

VALVE ASS'Y. - hyd. control (See Figure # 320 for breakdown), lever system

1шт.

12

62-864

SHCS 1/2-20 NF x 4 (16400 mt'g.) (47570), lever and valve system

3шт.

13

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

3шт.

14

32361

SNAP RING

LINK - valve control, lever system

1шт.

15

35620

SHIM

LINK - valve control, lever system

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

2шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Lever and valve system 1/16" x 1/2"

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

2шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

2шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

2шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

2шт.

22

32322

BRACKET, lever and valve system

1шт.

23

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

lever and valve system 3/8"

2шт.

25

38864

LEVER - valve control, lever system

1шт.

26

38865

LEVER - valve control, lever system

1шт.

27

32362

WASHER

- spacer, lever and valve system

2шт.

28

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1 3/4 (38864 & 65 mt'g.) (45709), lever and valve system

2шт.

29

195-33

WASHER,1/2"

- plain, lever and valve system

2шт.

30

31375

WASHER

BALL - grip, lever and valve system

2шт.

31

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

32

33402

TUBE ASS'Y. - tank to pump (Used up to serial #7060922), primary hydraulic system

1шт.

R10836

TUBE ASS'Y. - tank to pump (Used from serial #7060922), primary hydraulic system

1шт.

33

32798

HOSE

- low pressure, primary hydraulic system

1шт.

34

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, primary hydraulic system

2шт.

35

33401

TUBE ASS'Y. - pump inlet to hose, primary hydraulic system

1шт.

36

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

37

221-563

ELBOW - 90 degree street, 3/4 NP to 1/2 NP (Used up to serial #7061018), primary hydraulic system

1шт.

38

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP to 1/2 NP (Used from serial #7061018), primary hydraulic system

1шт.

39

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 NP to 1/2 NP (Used from serial # 7061018), primary hydraulic system

1шт.

40

R10975

TUBE ASS'Y. - valve inlet (Used up to serial #7061018), primary hydraulic system

1шт.

41

R10834

TUBE ASS'Y. - valve to pump (Used up to serial #7061018), primary hydraulic system

1шт.

42

R11501

TUBE ASS'Y. - valve to pump (Used from serial #7061018), primary hydraulic system

1шт.

43

R10853

HOSE ASS'Y. - valve to pump (Used up to serial #7061018), primary hydraulic system

1шт.

44

R11503

HOSE ASS'Y. - valve to pump (Used from serial #7061018), primary hydraulic system

1шт.

45

35962

SUPPORT

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

46

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

47

33925

BRACKET, primary hydraulic system

1шт.

48

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (R10834 or R11501 mt'g.), primary hydraulic system

1шт.

49

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mtg.) (45629), Primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

50

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

52

31665

COLLAR CLAMP

CLAMP - tube (35962 mt'g.), primary hydraulic system

2шт.

53

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1 1/2 (31665 mt'g.) (45633), primary hydraulic system

1шт.

54

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

55

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

56

38791

TUBE ASS'Y. - valve to relief valve (Used up to serial #7060936), primary hydraulic system

1шт.

57

R10981

TUBE ASS'Y. - valve to relief valve (Used from serial #7060936), primary hydraulic system

1шт.

58

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #7060936) (50024), primary hydraulic system

1шт.

59

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC to 1/2 NP (Used from serial #7060936) (50144), primary hydraulic system

1шт.

60

NLS

NO LONGER SERVICED

VALVE ASS'Y. - relief (See page # 294 for breakdown), primary hydraulic system

1шт.

61

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - pipe, 1/2 NP x 3 1/2 (41444), primary hydraulic system

1шт.

62

221-60

TUBE

BUSHING - pipe, 1/2 NP to 3/4 NP (41643), primary hydraulic system

1шт.

63

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

64

R10979

TUBE ASS'Y. - valve to tank, primary hydraulic system

1шт.

65

221-69

BUSHING

- pipe, 3/4 NP to 1 1/4 NP (41659), primary hydraulic system

1шт.

66

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), dump cylinder hydraulics system

1шт.

67

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- male run, 5/8 JIC to 1/2 NP (50226), dump cylinder hydraulics system

1шт.

68

35582

HOSE

ASS'Y. - valve to manifold, dump cylinder hydraulics system

2шт.

69

19267

TUBE ASS'Y. - manifold, rear ports, dump cylinder hydraulics system

1шт.

70

19269

TUBE ASS'Y. - manifold, front ports, dump cylinder hydraulics system

1шт.

71

36582

TUBE ASS'Y. - manifold to dump cylinders hydraulics system

2шт.

72

36592

TUBE ASS'Y. - manifold to dump cylinders hydraulics system

2шт.

73

36547

HOSE

ASS'Y. - manifold to dump cylinders hydraulics system

2шт.

74

NLS

NO LONGER SERVICED

HOSE ASS'Y. - manifold to dump cylinders hydraulics system

2шт.

75

36594

FIXING PLATE

TUBE ASS'Y. - manifold to dump cylinders hydraulics system

2шт.

76

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), dump cylinder hydraulics system

3шт.

77

33888

TEE - special 1/8 NP x 1/2 NP x 5/8 JIC, dump cylinder hydraulics system

1шт.

78

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd., 1/8 NP (41820), dump cylinder hydraulics system

1шт.

79

32978

PLATE ASSY.

CLAMP - tube, dump cylinder hydraulics system

4шт.

80

71603

SPACER - tube clamp, dump cylinder hydraulics system

4шт.

81

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(32978 & 71603 mtg.) (45634), Dump cylinder hydraulics system Hex, 5/16"-24 x 1 3/4", G5

4шт.

82

92-5

LOCK WASHER,5/16"

(48445), dump cylinder hydraulics system 5/16"

4шт.

83

31665

COLLAR CLAMP

CLAMP - hose, dump cylinder hydraulics system

4шт.

84

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Dump cylinder hydraulics system Hex, 5/16"-24 x 1 3/4", G5

2шт.

85

92-5

LOCK WASHER,5/16"

(48445), dump cylinder hydraulics system 5/16"

2шт.

86

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), dump cylinder hydraulics system

2шт.

87

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), lift cylinder hydraulics system

2шт.

88

19262

HOSE ASS'Y. - valve to manifold, lift cylinder hydraulics system

2шт.

89

19260

TUBE ASS'Y. - manifold, rear ports, lift cylinder hydraulics system

1шт.

90

19263

TUBE ASS'Y. - manifold, front ports, lift cylinder hydraulics system

1шт.

91

36576

TUBE ASS'Y. - manifold to lift cylinder hydraulics system

4шт.

92

36574

HOSE

ASS'Y. - manifold to lift cylinder hydraulics system

2шт.

93

36695

HOSE ASS'Y. - manifold to lift cylinder hydraulics system

2шт.

94

36578

TUBE ASS'Y. - manifold to lift cylinder hydraulics system

2шт.

95

36588

TUBE ASS'Y. - manifold to lift cylinder hydraulics system

2шт.

96

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulics system

4шт.

97

32978

PLATE ASSY.

CLAMP - tube, lift cylinder hydraulics system

8шт.

98

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1 1/2 (32978 mt'g.) (45633), lift cylinder hydraulics system

6шт.

99

92-5

LOCK WASHER,5/16"

(48445), lift cylinder hydraulics system 5/16"

6шт.

100

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulics system

4шт.

58

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #7060936) (50024), lift cylinder hydraulics system

1шт.
