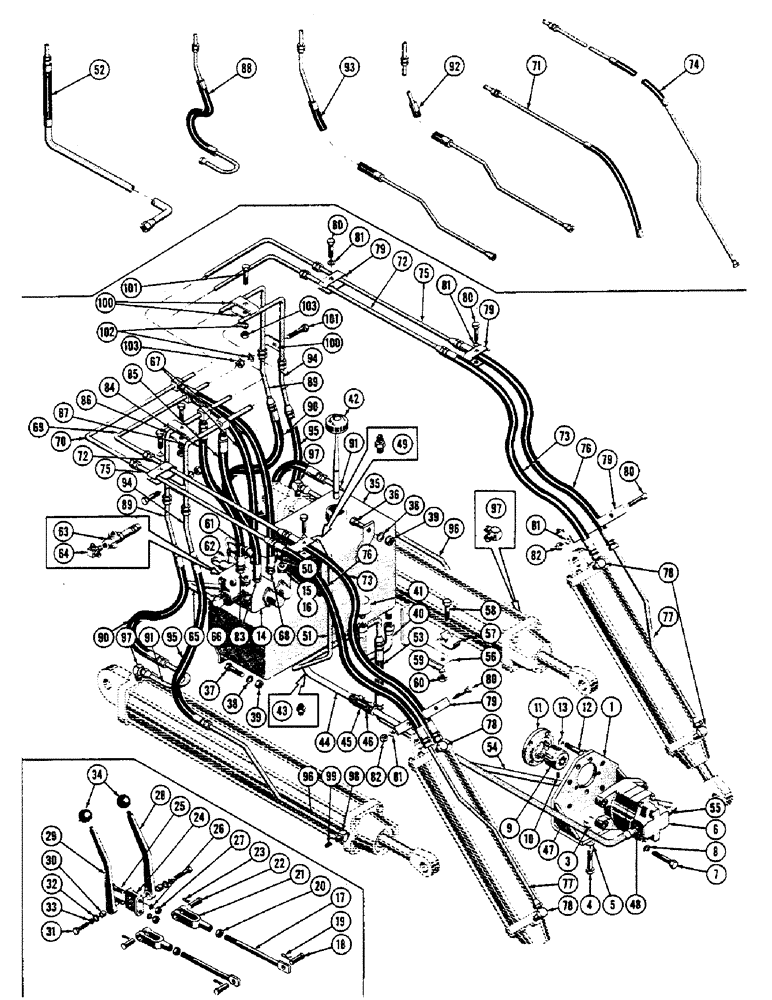

Запчасти Case 600 (162) - TERRALOADR HYDRAULIC INSTALLATION, PUMP, VALVE, HOSES, TUBING, FITTINGS (07) - HYDRAULIC SYSTEM

1

33430

PAD

BRACKET ASS'Y. - pump

1шт.

2

RESERVED

1шт.

3

40581

SPACER,1-1/2” x 1-1/2” x 1/4" Tk

SHIM, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mtg.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31614

PUMP ASS'Y. - hydraulic (See page #298 for breakdown), pump system

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mt'g.) (45110), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

8

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

16400

VALVE ASS'Y. - hyd. control (See page #320 for breakdown)

1шт.

15

62-864

SHCS 1/2-20 NF x 4 (16400 mt'g.) (47570)

3шт.

16

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

17

32361

SNAP RING

LINK - valve control

2шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661)

2шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

2шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex 93/8-24 NF) (48102)

2шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

2шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

2шт.

24

32322

BRACKET - control

1шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (32332 mt'g.) (45656)

2шт.

26

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

28

33446

LEVER - valve control

1шт.

29

33447

LEVER - valve control

1шт.

30

NLS

NO LONGER SERVICED

BUSHING - spacer

2шт.

31

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS 1/2-20 NF x 2 1/4 (33446 & 33447 mt'g.) (45711)

2шт.

32

195-33

WASHER,1/2"

- plain (48428)

2шт.

33

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

34

CAS31375

KNOB

BALL - grip

2шт.

35

33364

TANK ASS'Y. - hydraulic

1шт.

36

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (33364 mt'g.) (45656)

1шт.

37

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(33364 mt'g.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

(48446) 3/8"

3шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

3шт.

40

19235

TUBE ASS'Y. - breather filter

1шт.

41

31543

BREATHER

FILTER - breather

1шт.

42

35072

FILTER CAP & GAUGE STICK ASS'Y.

1шт.

43

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029)

1шт.

44

39239

TUBE ASS'Y. -, Serial Range: tank-pump

1шт.

45

32798

HOSE

- low pressure

1шт.

46

49766

AUGER

CLAMP - hose

2шт.

47

33401

TUBE ASS'Y. -, Serial Range: tube-pump

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029)

1шт.

49

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1/2 NP (Used up to serial #10-21-56) (50027)

1шт.

50

50147

X

ELBOW - 45 degree male, 3/4 JIC to 1/2 NP (Used from serial #10-21-56)

1шт.

51

33404

TUBE ASS'Y. - valve to pump (Order with ref. #50 prior to serial #10-21-56)

1шт.

52

33403

BRAKE LINING

HOSE & TUBE ASS'Y. - valve to pump (Used up to serial #7060110)

1шт.

53

35964

HOSE ASS'Y. - valve to pump (Used from serial #7060110)

1шт.

54

35962

SUPPORT

TUBE ASS'Y. - valve to pump (Used from serial #7060110)

1шт.

55

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026)

1шт.

56

33925

BRACKET

1шт.

57

49855

CLAMP

- tube (33404 mt'g.)

1шт.

58

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (49855 mt'g.) (45631)

1шт.

59

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

60

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

61

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- male run, 5/8 JIC and 1/2 NP (50226)

1шт.

62

33960

RIVET

TUBE ASS'Y. - valve to relief valve

1шт.

63

33959

PIPE FITTING

VALVE ASS'Y. - relief (See Figure #294 for breakdown)

1шт.

64

33958

ELBOW - lateral, 90 degrees

1шт.

65

19242

BUSHING

TUBE ASS'Y. - relief, Serial Range: valve-valve

1шт.

66

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116)

1шт.

67

35582

HOSE

ASS'Y. -, Serial Range: valve-manifold

2шт.

68

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024)

1шт.

69

19267

TUBE ASS'Y. - manifold, rear ports

1шт.

70

19269

TUBE ASS'Y. - manifold, front ports

1шт.

71

19268

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

HOSE & TUBE ASS'Y. - manifold to dump cyl. (Used up to serial #3-16-56)

2шт.

33998

HOSE & TUBE ASS'Y. - manifold to dump cyl. (Used from serial #3-16-56 and, Serial Range: up-12-24-56)

2шт.

72

36582

TUBE ASS'Y. - manifold to dump cylinder (Used from serial # 12-24-56)

2шт.

73

36547

HOSE

ASS'Y. - manifold to dump cylinder (Used from serial # 12-24-56)

2шт.

74

19270

HOSE & TUBE ASS'Y. - manifold to dump cyl. (Used to serial #3-16-56)

2шт.

33999

X,0.625" OD

HOSE & TUBE ASS'Y. - manifold to dump cyl. (Used from serial #3-16-56 and up to serial # 12-24-56)

2шт.

75

36592

TUBE ASS'Y. - manifold to dump cylinder (Used from serial # 12-24-56)

2шт.

76

NLS

NO LONGER SERVICED

HOSE ASS'Y. - manifold to dump cylinder (Used from serial # 12-24-56)

2шт.

77

36594

FIXING PLATE

TUBE ASS'Y. - manifold to dump cylinder (Used from serial # 12-24-56)

2шт.

78

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

4шт.

79

32978

PLATE ASSY.

CLAMP - tube

12шт.

80

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(32978 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

6шт.

81

92-5

LOCK WASHER,5/16"

(48445) 5/16"

6шт.

82

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

83

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024)

2шт.

84

192-59

HOSE ASS'Y. -, Serial Range: valve-manifold

1шт.

85

19262

HOSE ASS'Y. -, Serial Range: valve-manifold

1шт.

86

19260

TUBE ASS'Y. - manifold, rear ports

1шт.

87

19263

TUBE ASS'Y. - manifold, front ports

1шт.

88

19261

HOSE & TUBE ASS'Y. - manifold to lift cylinder (Used up to serial # 12-24-56)

2шт.

89

36576

TUBE ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

90

36695

HOSE ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

91

36578

TUBE ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

92

19264

SEAL PROTECTION

HOSE & TUBE ASS'Y. - LH, manifold to lift cylinder (Used up to serial # 12-24-56)

1шт.

93

19265

X

HOSE & TUBE ASS'Y. - RH, manifold to lift cylinder (Used up to serial # 12-24-56)

1шт.

94

36576

TUBE ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

95

36574

HOSE

ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

96

36588

TUBE ASS'Y. - manifold to lift cylinder (Used from serial # 12-24-56)

2шт.

97

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

3шт.

98

33888

TEE, special 1/8 NP x 1/2 NP x 5/8 JIC

1шт.

99

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd., 1/8 NP (41820)

1шт.

100

32978

PLATE ASSY.

CLAMP - tube

6шт.

101

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (32978 mt'g.) (45631)

4шт.

102

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

103

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

61

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- male run, 5/8 JIC and 1/2 NP (50226)

1шт.
