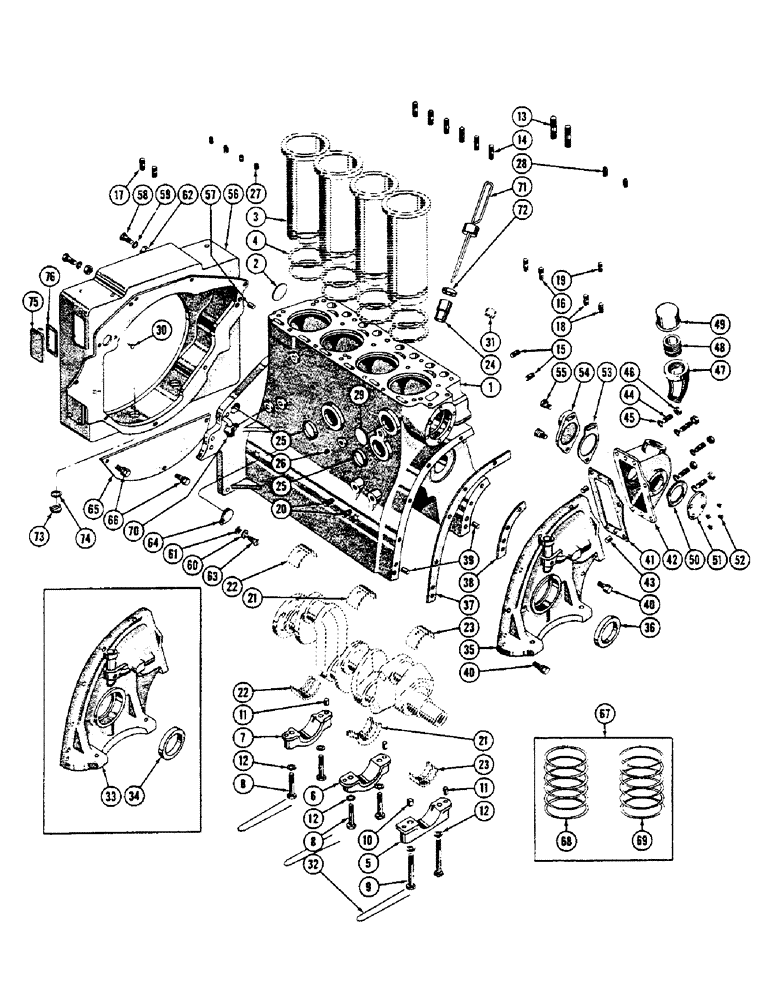

Запчасти Case 600 (010) - DIESEL ENGINE INSTALLATION, CYLINDER BLOCK, GEAR COVER, FLYWHEEL HSG. (01) - ENGINE

1

34251

CYLINDER & CRANKCASE (Stripped) (Used up to ser. #7060734)

1шт.

R-12193

CYLINDER & CRANKCASE (Stripped) (Used from ser. #7060734)

1шт.

5302

CYLINDER & CRANKCASE (With valves) (Op. to 34251) (Used up to ser. #7060734)

1шт.

R-12194

CYLINDER & CRANKCASE (With valves) (Op. to R-12193) (Used from ser. #7060734)

1шт.

2

41-32

PLUG,Exp, 2"

4шт.

3

REF

INSTRUCTION

LINER - cylinder (See Figure #16, ref. #38)

4шт.

4

REF

INSTRUCTION

PACKING - cylinder liner (See Figure #16, ref. #40)

8шт.

5

10340

CAP - crankshaft front bearing

1шт.

6

10343

CAP - crankshaft center bearing

1шт.

7

10346

CAP - crankshaft rear bearing

1шт.

8

10685

OLIVE

SCREW - 9/16-12 NC x 3 (Bearing, Serial Range: caps-c/case)

4шт.

9

10687

SCREW - 9/16-12 NC x 4-1/2 (Frt. bearing, Serial Range: cap-c/case)

2шт.

10

10294

BUSHING

DOWEL - ring (Frt. brg., cap to c/case)

1шт.

11

30271

PIN - (Bearing, Serial Range: caps-c/case)

3шт.

12

20156

WASHER - plain (Bearing caps to c/case)

6шт.

13

10694

PIPE FITTING

STUD - 1/2-13 NC-20 NF x 2-1/2 (Cyl., Serial Range: head-c/case)

2шт.

14

10696

FITTING

STUD - 1/4-20 NC x 1-1/8 (Water pump drive, Serial Range: support-c/case)

6шт.

15

10697

FITTING

STUD - 3/8-16 NC x 1-7/8 (Water inlet, Serial Range: elbow-c/case)

2шт.

16

VT4501

STUD - 3/8-16 NC x 1-11/16 (Cyl. head to c/case frt.)

2шт.

17

VT4501

STUD - 3/8-16 NC x 1-11/16 (Flywheel hsg. to c/case upper holes)

2шт.

18

VT3675

X

STUD - 3/8-16 NC x 1-1/2 (Injection pump adapter to c/case)

2шт.

19

11581

NUT

STUD - 3/8-16 NC x 1-1/4 (Primary filter, Serial Range: sup.-c/case)

1шт.

20

10138

STUD - 3/8-16 NC x 1-7/16 (Generator, Serial Range: brkt.-c/case)

2шт.

21

REF

INSTRUCTION

BEARING ASS'Y - center main (See Figure #16, ref. #7)

1шт.

22

REF

INSTRUCTION

BEARING ASS'Y - rear main (See Figure #16, ref. #8)

1шт.

23

REF

INSTRUCTION

BEARING ASS'Y - front main (See Figure #16, ref. #9)

1шт.

24

VT3369

SUPPORT - oil gauge rod

1шт.

25

10771

LOCK WASHER

PLUG - cup type (Heater holes)

2шт.

26

VT3395

X

PLUG - pipe, 1/4 NP (Oil gallery)

3шт.

27

221-12

PLUG,Sq Hd, 1/4"-18

- ext. sq. hd. pipe (c/case holes) (41821)

4шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8 NP (Oil filter inlet & outlet) (41820)

2шт.

29

11289

KIT

PLUG - hubbard (Cyl. & c/case R.H. front)

1шт.

30

30087

CLEVIS

PIN - flywheel pointer

1шт.

31

REF

INSTRUCTION

BUSHING - inj. pump drive (See Figure #24, ref. #3 & Figure #26 ref. #14)

1шт.

32

30272

WIRE - lock-11" long (Brg. capscrews)

3шт.

33

34290

PISTON ROD

COVER ASS'Y - gear (Used up to ser. #7060734)

1шт.

34

10670

FITTING

SEAL - c/shaft oil & dust

1шт.

35

R-12197

COVER ASS'Y - gear (Used from ser. #7060734)

1шт.

36

10670

FITTING

SEAL - c/shaft oil & dust

1шт.

37

10674

GASKET - gear, Serial Range: cover-c/case

1шт.

38

NLS

NO LONGER SERVICED

GASKET - gear, Serial Range: cover-c/case

1шт.

39

R-11693

PIN - dowel 3/8 x 3/4 (Gear, Serial Range: cover-c/case)

4шт.

40

10139

SCREW & LOCKWASHER ASS'Y - (Gear, Serial Range: cover-c/case)

7шт.

41

30070

PULLEY

GASKET - (Hyd. pump adapter to gear case)

1шт.

42

33875

TUBE NUT

ADAPTER - hyd. pump

1шт.

43

R-11693

DOWEL - 3/8 dia. (Hyd. pump adapter to gear case)

2шт.

44

VT3675

X

STUD - 3/8-16 NC x 1-1/2 (Hyd. pump adapter to gear case)

5шт.

45

92-6

LOCK WASHER,3/8"

(48446) 3/8"

5шт.

46

30438

X

NUT - hex (3/8-16 NC)

5шт.

47

33877

ROLL PIN

ELBOW - 45 degree street (Oil filter)

1шт.

48

221-260

HYD CONNECTOR

PIPE NIPPLE - oil filler pipe

1шт.

49

10406

CAP ASS'Y - oil filler

1шт.

50

30072

GASKET - adapter hole cover

1шт.

51

30073

COVER - adapter hole

1шт.

52

47100

SCREW - ctsk. head, #10-32 x 1/2 (30073 mtg.)

4шт.

53

R-11736

GASKET - hyd. pump hole cover

1шт.

54

R-11735

COVER - hyd. pump hole

1шт.

55

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW & LOCKWASHER ASS'Y - 3/8-16 NC x 1-1/4 (R-11735 mtg.)

2шт.

56

10125

HOUSING - flywheel, #3 (Special)

1шт.

57

30327

DOWEL - flywheel, Serial Range: hsg.-c/case

2шт.

58

11261

HOSE

HHCS - 3/8-16 NC x 1-1/2 (Flywheel, Serial Range: hsg.-c/case)

5шт.

59

92-6

LOCK WASHER,3/8"

(48446) 3/8"

7шт.

60

48526

X

WASHER - med. sec. loc (Flywheel hsg. to c/case at pointer hole cover)

1шт.

61

195-25

WASHER,3/8"

- plain (Flywheel hsg. to c/case at pointer hole cover)

1шт.

62

30438

X

NUT - hex (3/8-16 NC)

3шт.

63

10135

SCREW - drive, #10 x 3/4 (Flywheel pointer)

1шт.

64

10133

COVER - flywheel pointer

1шт.

65

33864

TOOL

SHIELD - dust, flywheel housing

1шт.

66

33865

SCREW & LOCKWASHER ASS'Y (Dust shield to flywheel hsg.)

3шт.

67

R-2361

KIT - shim, cylinder liner

1шт.

68

R-12380

SHIM - cylinder liner (.0015)

6шт.

69

R-12381

SHIM - cylinder liner (.003)

6шт.

70

11073

X

COCK - drain, 1/4"

1шт.

71

10631

ROD ASS'Y - oil gauge

1шт.

72

10416

FELT - oil gauge rod

1шт.

73

R-12384

PLUG ASS'Y

3шт.

74

R-13361

FELT - dust shield

3шт.

75

R12389

COVER ASS'Y

1шт.

76

R13362

FELT - cover

1шт.
