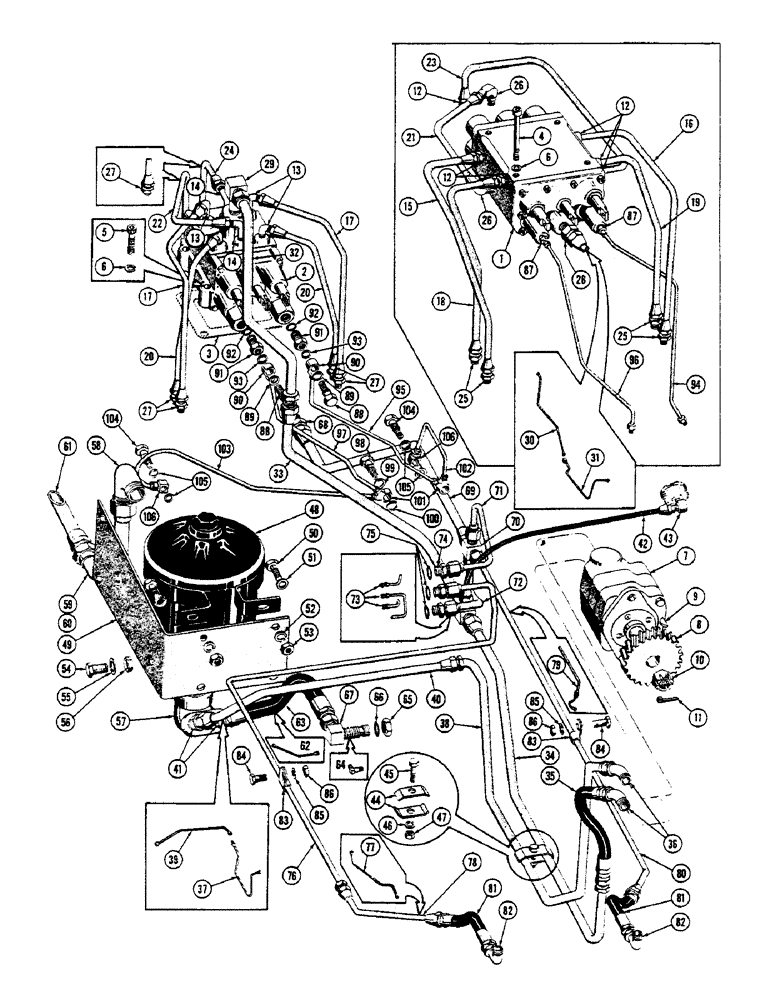

Запчасти Case 600 (110) - HYDRAULIC SYSTEM, (USED FROM SER. #6-12-56 AND UP TO SER. #7060776) TRANSMISSION HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

31282

VALVE ASS'Y - trans. control (Used up to ser. #7060674) (See Figure # 308)

1шт.

2

35660

BEARING

VALVE ASS'Y - trans control (Used up to serial #7060674) (See Figure # 310 for breakdown)

1шт.

3

REF

INSTRUCTION

GASKET - valve mtg. (See page #72 REF. #22)

1шт.

4

47556

CHAIN

SHCS 3/8-24 NF x 4-1/2 (31282 mtg.) (Used, Serial Range: up-#7060674)

4шт.

5

62-672

SHCS 3/8-24 NF x 2 (35660 mtg.) (Used from ser. #7060674)

4шт.

6

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

7

32655

PUMP ASS'Y - hyd. (See Figure #296 for breakdown)

1шт.

8

32661

LINE

GEAR - coupling

1шт.

9

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(48759) #9, 3/16" x 3/4"

1шт.

10

48316

HANDLE

NUT - slotted hex (32661 mtg.)

1шт.

11

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), (48688) 3/32" x 1 1/2"

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/4 NP (Used up to ser. 7060674)

6шт.

13

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (Used from ser. 7060674)

4шт.

14

50554

X

ELBOW - 90 degree long male, 3/8 JIC to 1/4 NP (Used from 7060674)

2шт.

15

19189

TUBE ASS'Y - valve to trans. R.H. (Used, Serial Range: up-#7060674)

1шт.

16

19187

TUBE ASS'Y - valve to trans. L.H. (Used, Serial Range: up-#7060674)

1шт.

17

38101

TUBE ASS'Y - valve to trans. (Used from ser. #7060674)

2шт.

18

1346622C1

SHAFT

TUBE ASS'Y - valve to trans R.H. (Used up to ser. #7060674)

1шт.

19

19108

TUBE ASS'Y - valve to trans L.H. (Used up to ser. #7060674)

1шт.

20

38093

TUBE ASS'Y - valve to trans L.H. (Used from ser. #7060674)

2шт.

21

1346623C1

SHAFT

TUBE ASS'Y - valve to trans. R.H. (Used up to ser. #7060674)

1шт.

22

38095

HUB

TUBE ASS'Y - valve to trans. R.H. (Used from ser. #7060674)

1шт.

23

1346588C1

SHAFT

TUBE ASS'Y - valve to trans. L.H. (Used up to ser. #7060674)

1шт.

24

38097

SPARE PART

TUBE ASS'Y - valve to trans. L.H. (Used from ser. #7060674)

1шт.

25

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/4 NP (Used up to ser. 7060674)

4шт.

26

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (Used up to ser. 7060674)

2шт.

27

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/4 NP (Used from ser. 7060674)

6шт.

28

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to ser. 7060776)

1шт.

29

218-499

ELBOW - 90 degree long male, 5/8 JIC to 1/2 NP from #7060776)

1шт.

30

33408

TUBE ASS'Y - valve to pump (Used up to ser. #7060776)

1шт.

31

33407

TUBE ASS'Y - valve to pump (Used up to ser. #7060776)

1шт.

32

74430

TUBE ASS'Y - valve to pump (Used from ser. #7060776)

1шт.

33

74442

TUBE ASS'Y - valve to pump (Used from ser. #7060776)

1шт.

34

74846

TUBE ASS'Y - valve to pump (Used from ser. #7060776)

1шт.

35

71175

FLEXIBLE HOSE

HOSE ASS'Y - valve tto pump (Used from ser. #7060776)

1шт.

36

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree male, 5/8 JIC to 3/4 NP (50155)

2шт.

37

33406

TUBE ASS'Y - pump to oil filter (Used up to ser. #10-19-56)

1шт.

38

35584

TUBE ASS'Y - pump to oil filter (Used from ser. #10-19-56)

1шт.

39

34704

TUBE ASS'Y - pump to oil filter (Used up to ser. #10-19-56)

1шт.

40

35586

TUBE ASS'Y - pump to oil filter (Used from ser. #10-19-56)

1шт.

41

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 (50024)

2шт.

42

33727

HOSE

ASS'Y - oil pressure gauge

1шт.

43

222-632

ELBOW - 90 degree female, 1/4 SAE to 1/8 NP (50162)

1шт.

44

32978

PLATE ASSY.

CLAMP - tube (35584 & 33407 mtg.)

2шт.

45

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

46

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

47

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

48

34634

FILTER ASS'Y - hyd. oil (See Figure #118 for breakdown)

1шт.

49

34860

BRACKET - oil filter

1шт.

50

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (349634 mtg.) (45656), oil filter system

4шт.

51

195-25

WASHER,3/8"

- plain (48426), oil filter system

4шт.

52

92-6

LOCK WASHER,3/8"

(48446), oil filter system 3/8"

4шт.

53

25-116

NUT,Hex, 3/8"-24, G5

- ref. SF hex (3/8-24 NF) (48102), oil filter system

4шт.

54

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(34860 mtg.) (45760), oil filter system Hex, 5/8"-18 x 2", G5

3шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Oil filter system 5/8"

3шт.

56

25-1110

NUT,5/8"-18, G5

- reg. SF hex 95/8-18 NF) (48106), oil filter system

3шт.

57

34630

MANIFOLD, oil filter system

1шт.

58

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1 NP (50119), oil filter system

1шт.

59

34583

TUBE ASS'Y - filter to snorkel tube (Used to 10-19-56), oil filter system

1шт.

60

35579

TUBE ASS'Y - filter to snorkel tube (Used from 10-19-56), oil filter system

1шт.

61

34640

SET SCREW,Hex Soc, M8 x 10, Cone Pt

PIPE ASS'Y - trans. outlet, oil filter system

1шт.

62

34549

HOOK

TUBE ASS'Y - filter to converter (Used up to ser. 10-19-56), hydraulic system

1шт.

63

35577

HOSE ASS'Y - filter to converter (Used from ser. 10-19-56)

1шт.

64

218-499

ELBOW - 90 degree long male, 5/8 JIC to 1/2 NP, Serial Range: (Used-7-12-57)

1шт.

65

50875

NUT

- bulkhead (Used from ser. #7-12-57)

1шт.

66

49401

X

SEAL - "O" ring (Used from ser. #7-12-57)

1шт.

67

D20071

ELBOW UNION

ELBOW - male (Special) (Used from ser. #7-12-57)

1шт.

68

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP (50038)

1шт.

69

33413

TUBE ASS'Y -, Serial Range: trans-tee

1шт.

70

218-665

TEE

- outlet 5/8 JIC & 3/8 JIC (50000)

1шт.

71

33414

BRAKE LINING

TUBE ASS'Y - tee to torque converter (Top)

1шт.

72

33415

TUBE ASS'Y - tee to torque converter (Bottom)

1шт.

73

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/4 NP (Used to 7-12-57)

3шт.

74

50871

X

CONNECTOR - male, (Special) (Used from ser. #7-12-57)

3шт.

75

49400

X

SEAL - "O" ring (Used from ser. #7-12-57)

3шт.

76

33410

TUBE ASS'Y - torque converter to sump (R.H.)

1шт.

77

33411

HOSE & TUBE ASS'Y - t/c to sump R.H. (Used, Serial Range: up-7060110)

1шт.

78

33951

HYDRAULIC PUMP

TUBE ASS'Y - t/c to sump R.H. (Used from #7060110)

1шт.

79

33412

HOSE & TUBE ASS'Y - tee to sump L.H. (Used, Serial Range: up-7060110)

1шт.

80

35953

KIT

TUBE ASSY - tee to sump L.H. (Used from #7060110)

1шт.

81

35955

NUT

HOSE ASS'Y - to sump (Used from #7060110)

2шт.

82

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106)

2шт.

83

33449

CLAMP

- tube (35953 & 35951 mtg.)

2шт.

84

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1" (33449 mtg.) (45656)

2шт.

85

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

86

25-116

NUT,Hex, 3/8"-24, G5

- reg. S.F. hex (3/8-24 NF) (48102)

2шт.

87

33256

SPACER

FITTING - 3/8-24 NF to 1/8 NP (Used up to ser. #7060674), brake hydraulic system

2шт.

88

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection (Used from ser. #7060674), brake hydraulic system

2шт.

89

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connction (Used from ser. #7060674), brake hydraulic system

2шт.

90

50861

FITTING

- 3/16 tube (Used from ser. #7060674), brake hydraulic system

2шт.

91

72125

ADAPTER

- brake tube (Used from ser. #7060674), brake hydraulic system

2шт.

92

49399

X

SEAL - "O" ring (Used from ser. #7060674), brake hydraulic system

2шт.

93

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection (Used from ser. #7060674), brake hydraulic system

2шт.

94

33249

PLATE

TUBE ASS'Y - valve to master cyl. L.H. (Used up to 7060674), brake hydraulic system

1шт.

95

NLS

NO LONGER SERVICED

TUBE ASS'Y - valve to master cyl. L.H. (Used from #7060674), brake hydraulic system

1шт.

96

33253

TUBE

ASS'Y - valve to master cyl. R.H. (Used up to #7060674), brake hydraulic system

1шт.

97

38089

TUBE ASS'Y - valve to master cyl. R.H. (Used from #7060674), brake hydraulic system

1шт.

98

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

99

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

100

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection, brake hydraulic system

2шт.

101

51200243

FITTING

- master cyl., brake hydraulic system

2шт.

102

NLS

NO LONGER SERVICED

TUBE ASS'Y - LH master cyl. to brake, hydraulic system

1шт.

103

33251

TUBE

ASS'Y - RH master cyl. to brake, hydraulic system

1шт.

104

33258

KNIFE

BOLT - brake, hydraulic system

2шт.

105

33257

SPACER

GASKET - copper, brake hydraulic system

4шт.

106

33259

FITTING - brake, hydraulic system

2шт.

62

34549

HOOK

TUBE ASS'Y - filter to converter (Used up to ser. 10-19-56), brake hydraulic system

1шт.
