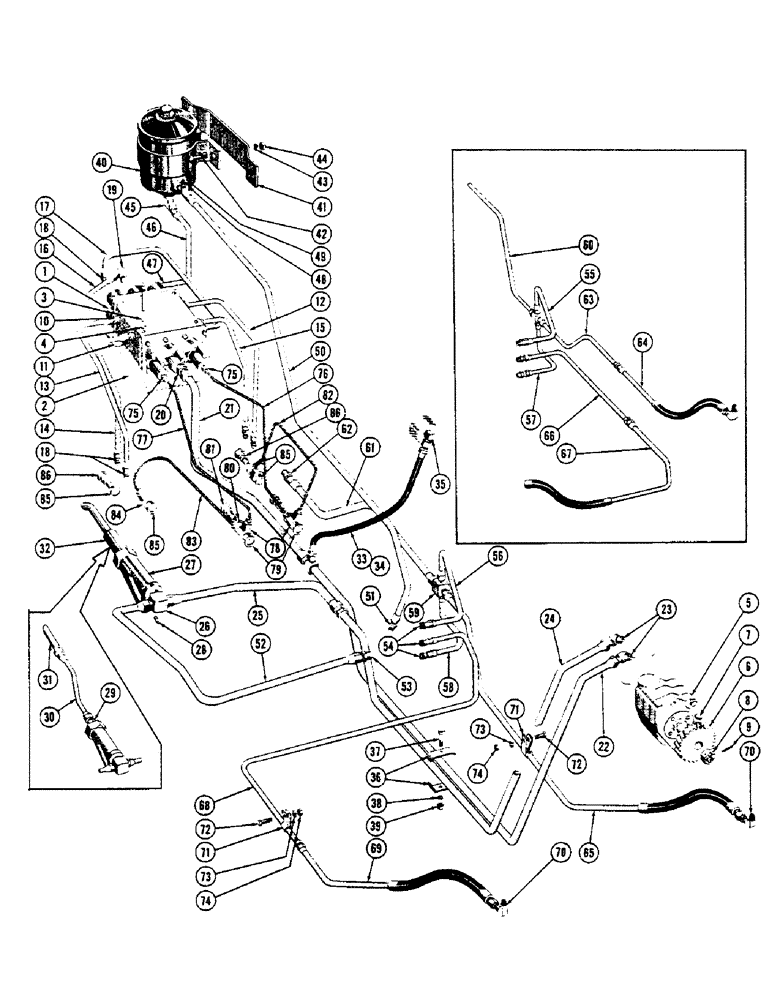

Запчасти Case 600 (106) - HYDRAULIC SYSTEM, (USED UP TO SERIAL #6-12-56), TRANSMISSION HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

31282

SPARE PART VALVE ASSY. - trans. control (See Figure #308 for breakdown)

1шт.

2

REF

INSTRUCTION

GASKET - valve mt'g. (See Figure #75 ref. #49)

1шт.

3

47556

CHAIN

SHCS 3/8-24 NF x 4 1/2 (31282 mt'g.)

4шт.

4

92-6

LOCK WASHER,3/8"

(48446)

4шт.

5

32655

SPARE PART PUMP ASSY. - hydraulic (See page #296 for breakdown)

1шт.

6

32661

LINE

GEAR - coupling

1шт.

7

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(48759)

1шт.

8

48316

HANDLE

NUT - slotted hex (32661 mt'g.)

1шт.

9

132-32

COTTER PIN,3/32" x 1 1/2"

(48688)

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016)

5шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106)

1шт.

12

19187

TUBE ASSY. - valve to trans. (LH)

1шт.

13

19189

TUBE ASSY. - valve to trans. (RH)

1шт.

14

1346622C1

SHAFT

TUBE ASSY. - valve to trans. (RH)

1шт.

15

19188

TUBE ASSY. - valve to trans. (LH)

1шт.

16

1346623C1

SHAFT

TUBE ASSY. - valve to trans. (RH)

1шт.

17

1346588C1

SHAFT

TUBE ASSY. - valve to trans. (LH)

1шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016)

5шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106)

1шт.

20

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50024)

1шт.

21

33408

TUBE ASSY. -, Serial Range: valve-pump

1шт.

22

33407

TUBE ASSY. -, Serial Range: valve-pump

1шт.

23

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

Male, 5/8 JIC to 3/4 NP (50155)

2шт.

24

33406

SPARE PART TUBE ASSY. -, Serial Range: pump-strainer

1шт.

25

33405

SPARE PART TUBE ASSY. -, Serial Range: pump-strainer

1шт.

26

50234

TEE - male run, 3/4 NP to 5/8 JIC

1шт.

27

16125

HOSE

STRAINER ASSY. - hydraulic

1шт.

28

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe, ext. (41823)

1шт.

29

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male, 3/4 JIC to 3/4 NP (Used up to S/N 2-6-56) (50026)

1шт.

30

19162

TUBE ASSY. - strainer to trans. (Used up to S/N 2-6-56)

1шт.

31

33295

EXTENSION ASSY. - suction line (Used up to S/N 2-6-56)

1шт.

32

33701

EXTENSION ASSY. - suction line (Used from S/N 2-6-56)

1шт.

33

19241

TUBE ASSY. - tee to oil pressure gauge (Used up to S/N 1-22-56)

1шт.

34

33727

HOSE

ASSY. - tee to oil pressure gauge (Used from S/N 1-22-56)

1шт.

35

222-632

ELBOW - 90 degree female, 1/4 JIC to 1/8 NP (50162)

1шт.

36

32978

PLATE ASSY.

CLAMP - tube (33406 & 33407 mt'g.)

2шт.

37

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

(32978 mt'g.) (45633)

1шт.

38

92-5

LOCK WASHER,5/16"

(48445)

1шт.

39

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101)

1шт.

40

31176

SPARE PART FILTER ASSY. - oil (See page #118 for breakdown) (Used from S/N 2-6-56), oil filter system

1шт.

41

33368

BUSHING

BRACKET ASSY. - filter mt'g. (Used from S/N 2-6-56), oil filter system

1шт.

42

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(31176 mtg.) (Used from S/N 2-6-56), oil filter system

2шт.

43

92-5

LOCK WASHER,5/16"

(Used from S/N 2-6-56), oil filter system

2шт.

44

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used from S/N 2-6-56), oil filter system

2шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male, to 1/4 SAE (Used from S/N 2-6-56), oil filter system

1шт.

46

19273

TUBE ASSY. - oil filter to transmission (Used from S/N 2-6-56), oil filter system

1шт.

47

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male, to 1/4 SAE (Used from S/N 2-6-56), oil filter system

1шт.

47

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male, to 1/4 SAE (Used from S/N 2-6-56), brake hydraulic system

1шт.

48

50499

TEE - pipe, 1/8 NP to 1/4 JIC (Used from S/N 2-6-56), converter hydraulic system

1шт.

49

NLS

NO LONGER SERVICED

PLUG - pipe, sq. hd., 1/8 NP (Used from S/N 2-6-56), converter hydraulic system

1шт.

50

19274

TUBE ASSY. - oil filter to torque converter (Used from S/N 2-6-56), converter hydraulic system

1шт.

51

50450

X

CONNECTOR - male, 1/8 NP to 1/4 SAE (Used from S/N 2-6-56), converter hydraulic system

1шт.

52

33409

TUBE ASSY. - tee to torque converter, converter hydraulic system

1шт.

53

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50024), converter hydraulic system

1шт.

54

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016), converter hydraulic system

3шт.

55

19155

TUBE ASSY. - converter to tee (Used up to S/N 2-6-56), converter hydraulic system

1шт.

56

33414

BRAKE LINING

TUBE ASSY. - converter to tee (Used from S/N 2-6-56), converter hydraulic system

1шт.

57

19157

SPARE PART TUBE ASSY. - converter to tee (Used up to S/N 2-6-56), converter hydraulic system

1шт.

58

33415

SPARE PART TUBE ASSY. - converter to tee (Used from S/N 2-6-56), converter hydraulic system

1шт.

59

218-665

TEE

5/8 JIC to 3/8 JIC (500000), converter hydraulic system

1шт.

60

19154

TUBE ASSY. - transmission to tee (Used up to S/N 2-6-56), converter hydraulic system

1шт.

61

33413

TUBE ASSY. - transmission to tee (Used from S/N 2-6-56), converter hydraulic system

1шт.

62

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038), converter hydraulic system

1шт.

63

19156

TUBE ASSY. - tee to #19248 (Used up to S/N 2-6-56), converter hydraulic system

1шт.

64

19248

HOSE & TUBE ASSY. - #19156 to sump (Used up to S/N 2-6-56), converter hydraulic system

1шт.

65

33412

SPARE PART HOSE & TUBE ASSY. - tee to sump (Used from S/N 2-6-56), converter hydraulic system

1шт.

66

19153

TUBE ASSY. - converter to #19232 (Used up to S/N 2-6-56), converter hydraulic system

1шт.

67

19232

BUSHING

HOSE & TUBE ASSY. - #19153 to sump (Used up to S/N 2-6-56), converter hydraulic system

1шт.

68

33410

TUBE ASSY. - converter to #33411 (Used from S/N 2-6-56), converter hydraulic system

1шт.

69

33411

SPARE PART TUBE ASSY. - #33410 to sump (Used from S/N 2-6-56), converter hydraulic system

1шт.

70

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), converter hydraulic system

2шт.

71

33449

CLAMP

Tube (33411 & 33412 mt'g.), converter hydraulic system

2шт.

72

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(33449 mt'g.) (45656), converter hydraulic system

2шт.

73

92-6

LOCK WASHER,3/8"

(48446), converter hydraulic system

2шт.

74

25-116

NUT,Hex, 3/8"-24, G5

(48102), converter hydraulic system

2шт.

75

33256

SPACER

FITTING 3/8-24 NF to 1/8 NF, brake hydraulic system

2шт.

76

33249

PLATE

SPARE PART TUBE ASSY. - valve to master cylinder (LH), brake hydraulic system

1шт.

77

33253

TUBE

SPACER TUBE ASSY. - valve to master cylinder (RH), brake hydraulic system

1шт.

78

51200243

FITTING

Master cylinder, brake hydraulic system

2шт.

79

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

80

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection, brake hydraulic system

2шт.

81

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

82

NLS

NO LONGER SERVICED

TUBE ASSY. - master cylinder to brake (LH), brake hydraulic system

1шт.

83

33251

TUBE

KNIFE GUIDE TUBE ASSY. - master cylinder to brake (RH), brake hydraulic system

1шт.

84

33259

SPARE PART FITTING - brake, brake hydraulic system

2шт.

85

33257

SPACER

GASKET - copper, brake hydraulic system

4шт.

86

33258

KNIFE

SPARE PART BOLT - brake fitting, brake hydraulic system

2шт.
