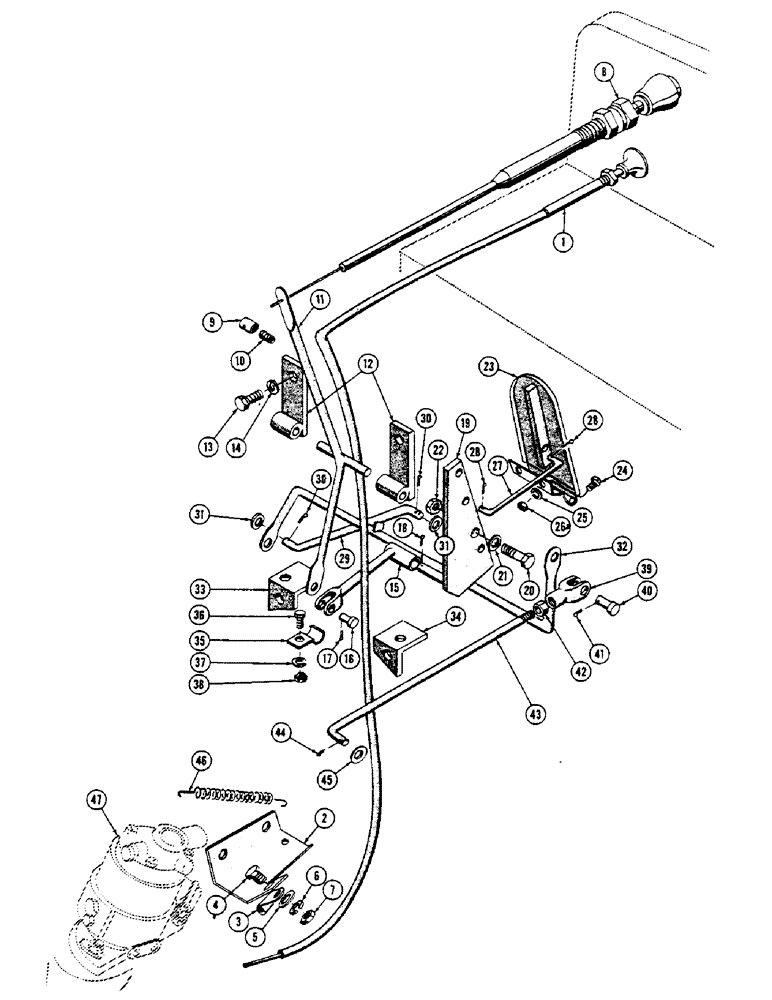

Запчасти Case 600 (066) - ENGINE CONTROL SYSTEM, (USED FROM SERIAL #7060799) (06) - ELECTRICAL SYSTEMS

1

R-13596

CONTROL ASSY - engine shut-off

1шт.

2

R-13065

BRACKET

1шт.

3

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

(R-13596 mtg.) (Used up to S/N 7061017)

1шт.

49351

GUARD

CLAMP (R-13596 mtg.) (Used from S/N 7061017)

1шт.

4

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(49853 mt'g.) (45657)

1шт.

5

195-25

WASHER,3/8"

(48426)

1шт.

6

92-6

LOCK WASHER,3/8"

(48446)

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

(48102)

1шт.

8

35312

WASHER

THROTTLE ASSY - hand

1шт.

9

34823

CHAIN LINK

STOP - pivot

1шт.

10

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

(34823 mt'g.) (47309)

1шт.

11

38622

TOOL

ARM ASSY - pivot

1шт.

12

38194

BRACKET ASSY - pivot shaft

2шт.

13

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

(38194 mt'g.) (45627)

2шт.

14

92-5

LOCK WASHER,5/16"

(48445)

2шт.

15

74583

SERVICE KIT

SPARE PART YOKE ASSY - pivot, Serial Range: arm-crank

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

Yoke

1шт.

17

132-5

COTTER PIN,1/16" x 1/2"

1шт.

18

132-45

COTTER PIN,1/8" x 5/8"

PIN - cotter, 1/8 dia. x 3/4

1шт.

19

74622

CRANK ASSY - reversing

1шт.

20

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

(74622 mt'g.) (45659)

1шт.

21

195-25

WASHER,3/8"

(48426)

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

(48102)

1шт.

23

31267

ACCELERATOR ASSY

1шт.

24

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS (31267 mt'g.) (46909)

2шт.

25

92-3

LOCK WASHER,#10

(48443)

2шт.

26

129-7

NUT,Hex, #10 - 24

Hex

2шт.

27

32226

DECAL

LINK - accelerator to reversing crank

1шт.

28

132-26

COTTER PIN

3/32" x 3/4" (48683)

2шт.

29

74579

LINK -, Serial Range: bellcrank-crank

1шт.

30

132-26

COTTER PIN

3/32" x 3/4" (48683)

2шт.

31

195-21

WASHER,5/16"

(48425)

2шт.

32

74732

CRANK ASSY - across flywheel housing

1шт.

33

38199

BRACKET - crank assy RH

1шт.

34

38200

BRACKET - crank assy LH

1шт.

35

49788

WINDGUARD

CLAMP (74732 mt'g.)

2шт.

36

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

(49788 mt'g.) (45605)

2шт.

37

92-4

LOCK WASHER,1/4"

(48444)

2шт.

38

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

2шт.

39

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE, Adjustable (48602)

1шт.

40

141-3

CLEVIS PIN,5/16" x .940"

Yoke (48662)

1шт.

41

132-5

COTTER PIN,1/16" x 1/2"

(48672)

1шт.

42

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101)

1шт.

43

74578

LINK - yoke to governor control

1шт.

44

132-26

COTTER PIN

3/32" x 3/4"

1шт.

45

195-21

WASHER,5/16"

(48425)

1шт.

46

11469

SPRING

Throttle return

1шт.

47

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figure #32 for breakdown)

1шт.
