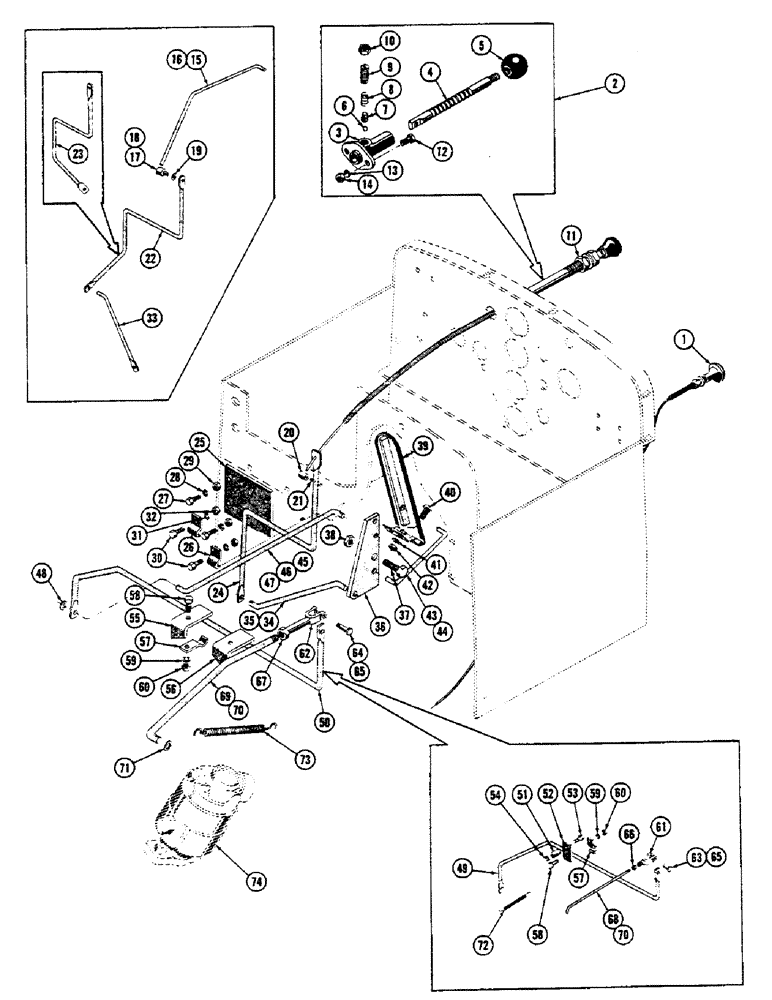

Запчасти Case 600 (062) - ENGINE CONTROL SYSTEM, (USED UP TO SERIAL #7060799) (06) - ELECTRICAL SYSTEMS

1

10856

SPARE PART CONTROL ASSY - engine shut-off

1шт.

2

7359

X

THROTTLE ASSY - hand (Used up to S/N 8-27-56)

1шт.

3

31898

STUD

BEARING - throttle

1шт.

4

32416

SEAL

SHAFT - hand throttle

1шт.

5

31375

WASHER

BALL - grip

1шт.

6

32421

SPARE PART BALL - throttle control

1шт.

7

32417

PISTON

POPPET - throttle control

1шт.

8

30918

NUT

SPRING - poppet

1шт.

9

30917

SPARE PART CONTAINER - poppet

1шт.

10

25-158

JAM NUT,Jam, 1/2"-20, G5

Reg. SF hex (48194)

1шт.

11

35312

WASHER

THROTTLE ASSY - hand (Used from S/N 8-27-56)

1шт.

12

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

(7359 mt'g.) (Used up to S/N 8-27-56)

2шт.

13

92-5

LOCK WASHER,5/16"

(Used up to S/N 8-27-56) (48445)

2шт.

14

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used up to S/N 8-27-56)

2шт.

15

31979

ROD - throttle slide (Used up to S/N 8-27-56)

1шт.

16

132-44

COTTER PIN,1/8" x 1/2"

(Used up to S/N 8-27-56)

2шт.

17

32794

PIN

SWIVEL - throttle (Used from S/N 8-27-56)

1шт.

18

35313

PIVOT - hand throttle (Used from S/N 8-27-56 and up to S/N 10-1-56)

1шт.

19

195-33

WASHER,1/2"

(Used from S/N 8-27-56 and up to S/N 10-1-56)

1шт.

20

34823

CHAIN LINK

STOP - pivot (Used from S/N 10-1-56)

1шт.

21

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

(34823 mt'g.) (Used from S/N 10-1-56) (47309)

1шт.

22

30935

CRANK - throttle (Used up to S/N 10-1-56)

1шт.

23

35638

CRANK - throttle (Used from S/N 10-1-56 and up to S/N 7060734)

1шт.

24

74744

LOCTITE

CRANK - throttle (Used from S/N 7060734)

1шт.

25

30938

SUPPORT - throttle

1шт.

26

49788

WINDGUARD

CLAMP (30935, 35638 or 74744 mt'g.)

2шт.

27

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

(30938 mt'g.) (45604)

2шт.

28

92-4

LOCK WASHER,1/4"

(48444)

2шт.

29

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

2шт.

30

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

(49788 mt'g.) (45605)

2шт.

31

92-4

LOCK WASHER,1/4"

(48444)

2шт.

32

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

2шт.

33

32688

SHIM

LINK - bellcrank to crank (Used up to S/N 7060734)

1шт.

34

74580

LINK - bellcrank to crank (Used from S/N 7060734)

1шт.

35

132-44

COTTER PIN,1/8" x 1/2"

(Used up to S/N 7060734)

2шт.

132-26

COTTER PIN

3/32" x 3/4" (Used from S/N 7060734)

2шт.

36

33275

SPARE PART CRANK ASSY - reversing

1шт.

37

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

(33275 mt'g.) (45658)

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

(48102)

1шт.

39

31267

ACCELERATOR ASSY

1шт.

40

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS #10-24 NF x 3/4 (31267 mt'g.) (46909)

2шт.

41

92-3

LOCK WASHER,#10

(48442)

2шт.

42

129-7

NUT,Hex, #10 - 24

Hex

2шт.

43

32226

DECAL

LINK - accelerator to reversing crank

1шт.

44

132-26

COTTER PIN

3/32" x 3/4" (48683)

2шт.

45

NLS

NO LONGER SERVICED

LINK - bellcrank to crank (Used up to S/N 7060734)

1шт.

46

74579

LINK - bellcrank to crank (Used from S/N 7060734)

1шт.

47

132-44

COTTER PIN,1/8" x 1/2"

(Used up to S/N 7060734)

2шт.

132-26

COTTER PIN

3/32" x 3/4" (Used from S/N 7060734)

2шт.

48

195-21

WASHER,5/16"

(Used from S/N 7060734) (48425)

2шт.

49

35656

CAM CRANK ASSY - across flywheel hs'g. (Used up to S/N 7060734)

1шт.

50

74732

CRANK ASSY - across flywheel hs'g. (Used from S/N 7060734)

1шт.

51

32691

SPACER

SPARE PART (Used up to S/N 7060734)

2шт.

52

32690

PLATE (35656 mt'g.) (Used up to S/N 7060734)

2шт.

53

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(32690 & 32691 mt'g.) (Used up to S/N 7060734) (45059)

2шт.

54

92-6

LOCK WASHER,3/8"

(Used up to S/N 7060734) (48446)

2шт.

55

38199

BRACKET - crank assy, RH (Used from S/N 7060734)

1шт.

56

38200

BRACKET - crank assy, LH (Used from S/N 7060734)

1шт.

57

49788

WINDGUARD

CLAMP (35656 or 74732 mt'g.)

2шт.

58

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

(49788 mt'g.) (46505)

2шт.

59

92-4

LOCK WASHER,1/4"

(48444)

2шт.

60

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

2шт.

61

48601

X

YOKE - adjustable (Used up to S/N 7060734)

1шт.

62

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (Used from S/N 7060734) (48602)

1шт.

63

141-2

CLEVIS PIN,1/4" x .770"

Yoke (Used up to S/N 7060734) (48661)

1шт.

64

141-3

CLEVIS PIN,5/16" x .940"

Yoke (Used from S/N 7060734) (48662)

1шт.

65

132-5

COTTER PIN,1/16" x 1/2"

(48672)

1шт.

66

25-155

JAM NUT,Jam, 5/16"-24, G5

Hex jam (1/4-28 NF) (Used up to S/N 7060734) (48190)

1шт.

67

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used from S/N 7060734)

1шт.

68

NLS

NO LONGER SERVICED

LINK - yoke to governor control (Used up to S/N 7060734)

1шт.

69

74578

LINK - yoke to governor control (Used from S/N 7060734)

1шт.

70

132-44

COTTER PIN,1/8" x 1/2"

(Used up to S/N 7060734)

1шт.

132-26

COTTER PIN

3/32" x 3/4" (Used from S/N 7060734)

1шт.

71

195-21

WASHER,5/16"

(Used from S/N 7060734)

1шт.

72

32230

X

SPRING - throttle return (Used up to S/N 7060734)

1шт.

73

11469

SPRING

Throttle return (Used from S/N 7060734)

1шт.

74

REF

INSTRUCTION

PUMP ASSY - fuel injection (See page #28 ref. #1)

1шт.
