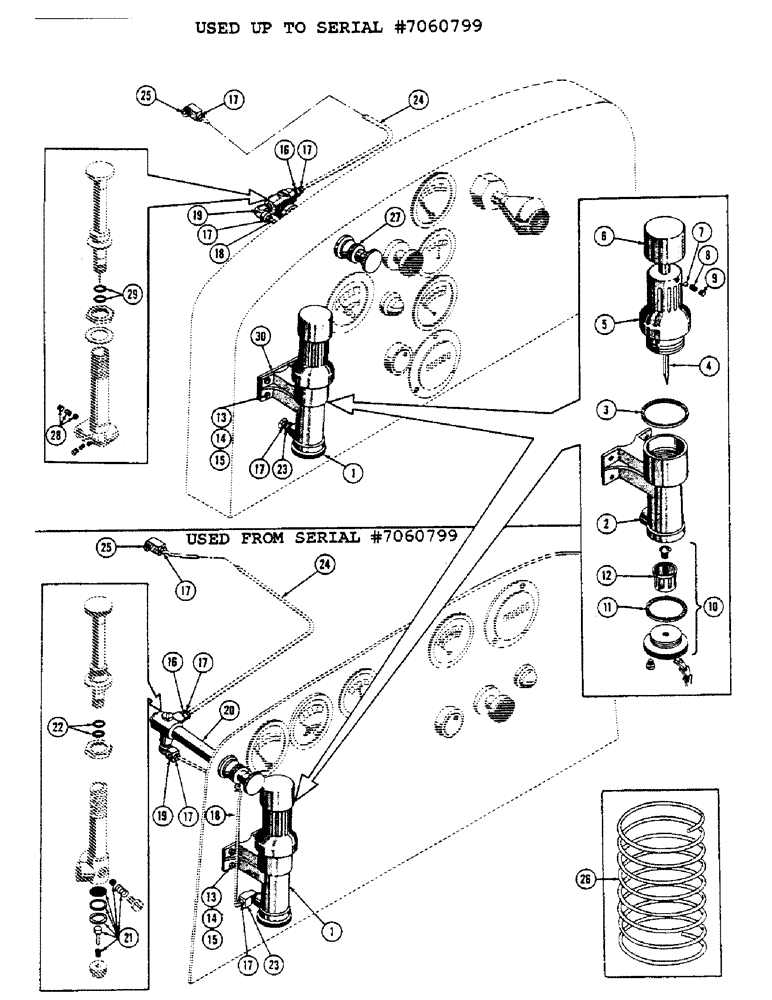

Запчасти Case 600 (060) - COLD STARTING SYSTEM, PRIMER PUMP, PUNCTURING TOOL, LINES (06) - ELECTRICAL SYSTEMS

37415

KIT - cold starting

1шт.

1

O10060AB

TOOL ASS'Y - cold starting puncturing

1шт.

2

A9977

BODY - lower

1шт.

3

A9978

GASKET - upper chamber

1шт.

4

A9980

PLUNGER - puncturing tool

1шт.

5

A9979

CHAMBER - puncturing tool, upper

1шт.

6

A9983

KNOB - plunger

1шт.

7

VT-3353

BALL - plunger lock (3/16 dia.)

1шт.

8

A9981

SPRING - plunger lock

1шт.

9

A9982

PLUG - plunger lock

1шт.

10

A9984

PLUG ASS'Y - cleaning

1шт.

11

A9986

GASKET

- strainer

1шт.

12

A9985

STRAINER - plug ass'y

1шт.

13

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS, #10-24 NC x 1/2 (010060 AB mtg.) (46910)

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (48443) #10

4шт.

15

129-37

NUT,#10-32

- hex (#10-24 NC)

4шт.

16

30414

KIT

CONNECTOR - male

1шт.

17

39906

LID

SLEEVE - threaded

4шт.

18

NSS

NOT SOLD SEPARAT

TUBE - primer to ether cap (Make from 30410)

1шт.

19

34009

ELBOW - male

1шт.

20

A7444

PUMP ASS'Y - primer (Optional to O10061AB)

1шт.

21

A8717

KIT - primer pump repair

1шт.

22

O10491AB

X

SEAL - "O" ring

2шт.

23

30414

KIT

CONNECTOR - male (Used up to ser. #7060799)

1шт.

34009

ELBOW - male (Used from ser. #7060799)

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE - primer to manifold (Make from 30410)

1шт.

25

O10065AB

NOZZLE ASS'Y - spray

1шт.

26

30410

TUBING (Used to make ref. #18 & #24)

1шт.

27

O10061AB

PUMP ASS'Y - primer (Optional to A7444)

1шт.

28

A7171

BRACKET

KIT - primer pump repair

1шт.

29

O10491AB

X

SEAL - "O" ring

2шт.

30

33774

SHAFT

SPACER (Used up to serial #7060799)

1шт.
