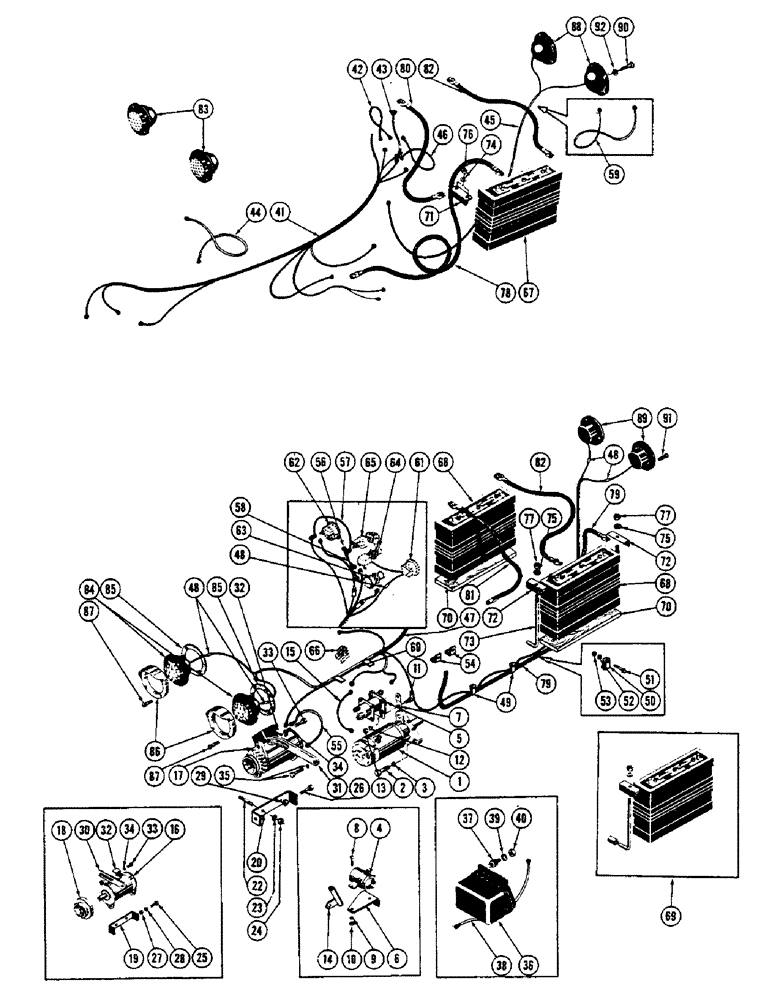

Запчасти Case 600 (048) - ELECTRICAL SYSTEM, STARTER, GENERATOR, BATTERY, LIGHTS (06) - ELECTRICAL SYSTEMS

1

10128

PIN

STARTER ASSY - (12 volt) (See Figure #52 for breakdown)

1шт.

2

10129

X

SCREW SCREW 5/8-11 NC x 1 1/4 (10128 mt'g.)

3шт.

3

10130

X

LOCK WASHER WASHER - lock

3шт.

4

30682

SOLENOID ASSY (Used up to S/N 7060913)

1шт.

5

74859

X

SOLENOID ASSY (Used from S/N 7060913)

1шт.

6

33719

SPARE PART BRACKET - solenoid mt'g. (Used up to S/N 7060913)

1шт.

7

74837

SPARE PART STRAP - solenoid mt'g. (Used from S/N 7060913)

1шт.

8

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

(33719 mt'g.) (Used up to S/N 7060913)

2шт.

9

193-26

LOCK WASHER,Int Tooth, #10

(Used up to S/N 7060913) (48522)

2шт.

10

129-7

NUT,Hex, #10 - 24

(Used up to S/N 7060913)

2шт.

11

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

(74837 mt'g.) (Used from S/N 7060913)

1шт.

12

92-4

LOCK WASHER,1/4"

(Used from S/N 7060913) (48444)

1шт.

13

25-114

NUT,1/4"-28, G5

(Used from S/N 7060913) (48100)

1шт.

14

30675

SPARE PART STRAP - solenoid connecting (Used up to S/N 7060913)

1шт.

15

72288

SPARE PART CABLE - solenoid connecting (Used from S/N 7060913)

1шт.

16

10132

SPARE PART GENERATOR ASSY - (12V) (Used up to S/N 7060734)

1шт.

16

104450A1R

REMAN-GENERATOR

Remanufactured Generator ,12 Volt 20 Ampere

1шт.

16

104450A1C

CORE-GENERATOR

Return Number, 12 Volt 20 Ampere

1шт.

17

R11129

SPARE PART GENERATOR & VOLTAGE REGULATOR ASSY (12V) (Used from S/N 7060734) (See Figure #54 for breakdown)

1шт.

18

10136

PULLEY - generator (Used up to S/N 7060734)

1шт.

19

10137

BRACKET - generator mt'g. (Used up to S/N 7060734)

1шт.

20

R12211

BRACKET - generator mt'g. (Used from S/N 7060734)

1шт.

22

REF

INSTRUCTION

STUD 3/8-16 NC x 1 7/16 (10137 or R12211 mt'g.) (See page #10 and ref. #20)

2шт.

23

92-6

LOCK WASHER,3/8"

(48446)

2шт.

24

30438

X

NUT NUT - hex (3/8-16 NC)

2шт.

25

10033

SPARE PART SCREW 5/16-24 NF x 1 1/8 (10132 mt'g.) (Used up to S/N 7060734)

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R11129 mt'g.) (Used from S/N 7060734)

2шт.

27

30362

NUT - pal, 5/16 (Used up to S/N 7060734)

2шт.

28

48161

SPARE PART (5/16-24 NF) (Used up to S/N 7060734)

2шт.

29

R11731

SPARE PART NUT - hex (3/8-16 NC) (Used from S/N 7060734)

2шт.

30

30453

STRAP - generator adjusting (Used up to S/N 7060734)

1шт.

31

R12212

SPARE PART STRAP - generator adjusting (Used from S/N 7060734)

1шт.

32

30360

SPARE PART CLIP - generator adjusting strap

1шт.

33

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(30453 or R12212 mt'g.) (45030)

1шт.

34

48465

BUSHING

WASHER - lock

1шт.

35

10139

SCREW & LOCKWASHER 3/8-16 NC x 1 (30453 or R12212 mt'g.)

1шт.

36

33994

SPARE PART REGULATOR ASSY - voltage (Used up to S/N 7060734)

1шт.

37

34391

KNIFE SECTION

SECTION, KNIFE PAD - voltage regulator (Used up to S/N 7060734)

3шт.

38

34392

WIRE ASSY - voltage regulator (Used up to S/N 7060734)

1шт.

39

34393

WASHER - voltage regulator (Used up to S/N 7060734)

6шт.

40

34394

NUT - voltage regulator (Used up to S/N 7060734)

6шт.

41

33703

GLASS

HARNESS ASSY - wiring (Used up to S/N 7060799)

1шт.

NSS

NOT SOLD SEPARAT

HARNESS - wiring

1шт.

42

33705

GLASS

WIRE ASSY - key to light switch

1шт.

43

33706

WIRE ASSY -, Serial Range: ammeter-key

1шт.

44

87456669

KNIFE ASSY

WIRE - voltage, Serial Range: regulator-ammeter

1шт.

45

33708

WIRE ASSY - light switch to tail light

1шт.

46

33709

WIRE ASSY - switch to starter button

1шт.

47

39153

HARNESS ASSY - wiring (Used from S/N 7060799)

1шт.

48

32395

SEAL ASSY.

BULLET - wiring

5шт.

49

74837

SPARE PART CLIP - wiring

2шт.

50

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - wiring

1шт.

51

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

(49858 mt'g.) (45631)

1шт.

52

92-5

LOCK WASHER,5/16"

(48445)

1шт.

53

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101)

1шт.

54

74939

SCREW

CLIP - wiring

2шт.

55

74937

WIRE ASSY - voltage regulator ground (Used from S/N 7060734)

1шт.

56

33709

WIRE ASSY - switch to starter button (Used from S/N 7060799)

1шт.

57

33706

WIRE ASSY - ammeter to key (Used from S/N 7060799)

1шт.

58

NLS

NO LONGER SERVICED

WIRE WIRE ASSY - key to light switch (Used from S/N 7060799)

1шт.

59

35748

WIRE ASSY - to tail lights (Used up to S/N 7060799)

1шт.

60

33455

SCREW

TUBE ASSY - wiring harness

1шт.

61

REF

INSTRUCTION

METER ASSY - hour (See Figure #58 ref. #6)

1шт.

62

REF

INSTRUCTION

AMMETER ASSY - (See page #58 ref. #5)

1шт.

63

REF

INSTRUCTION

SWITCH ASSY - light (See Figure #58 ref. #10)

1шт.

64

REF

INSTRUCTION

SWITCH ASSY - push button starter (See Figure #58 ref. #12)

1шт.

65

REF

INSTRUCTION

SWITCH ASSY - ignition lock (See Figure #58 ref. #11)

1шт.

66

REF

INSTRUCTION

SWITCH ASSY - pressure (See Figure #58 ref. #9)

1шт.

68

39721

SPARE PART BATTERY (Heavy duty) (Used from S/N 7060674)

2шт.

67

31475

O-RING

BATTERY (Used up to S/N 7060674) (See ref. #69)

2шт.

69

19326

X

KIT - battery change-over (To convert from 31475 battery to 39721 battery)

1шт.

70

31466

HOSE

BOARD - battery bottom

2шт.

71

31468

HOSE

ANGLE - battery hold-down (Used up to S/N 7060674)

4шт.

72

39720

SPARE PART ANGLE - battery hold-down (Used from S/N 7060674)

4шт.

73

33547

SPARE PART BOLT - angle, battery hold-down (Used from S/N 7060674 and up to S/N 7060842)

4шт.

74559

BOLT - angle, battery hold-down (Used from S/N 7060842)

4шт.

74

95-6

WASHER,3/8"

(Used up to S/N 7060674) (48406)

8шт.

75

95-5

WASHER,3/8" x 7/8" x .083"

(Used from S/N 7060674) (48405)

4шт.

76

25-106

NUT,3/8"-16, G5

Reg. SF hex (Used up to S/N 7060674)

8шт.

77

9635082

NUT,5/16" - 18, Gr 5

Ref. SF hex (Used from S/N 7060674)

4шт.

78

32375

CABLE

SPARE PART Battery (Hot) (Used up to S/N 12-10-56)

1шт.

35733

SPINDLE

SPARE PART CABLE - battery (Hot) (Used from S/N 12-10-56 and up to S/N 7060842)

1шт.

79

74554

SPARE PART CABLE - battery (Hot) (Used from S/N 7060842 and up to S/N 7060915)

1шт.

35733

SPINDLE

SPARE PART CABLE - battery (Hot) (Used from S/N 7060915)

1шт.

80

60776

CABLE - battery (Ground) (Used up to S/N 12-10-56)

1шт.

35734

CABLE - battery (Ground) (Used from S/N 12-10-56 and up to S/N 7060842)

1шт.

81

74552

CABLE - battery (Ground) (Used from S/N 7060842)

1шт.

82

33485

SPARE PART CABLE - battery (Jumper) (Used up to S/N 12-10-56)

1шт.

35735

GASKET

SPARE PART CABLE - battery (Jumper) (Used from S/N 12-10-56)

1шт.

83

30737

LINE

LIGHT ASSY - head (Used up to S/N 10-16-57) (See page for breakdown)

2шт.

84

72343

SPARE PART LIGHT ASSY - head (Used from S/N 10-16-57) (See page for breakdown)

2шт.

85

NLS

NO LONGER SERVICED

Headlight

2шт.

86

31136

SPARE PART RING - headlight mt'g.

2шт.

87

73-424

BOLT (MACHINE)

1/4-20 NC x 1 1/2 (31136 mt'g.) (46922)

8шт.

88

30737

LINE

LIGHT ASSY - tail (Used up to S/N 10-4-56) (See page #56 for breakdown)

2шт.

89

35650

SPARE PART LIGHT ASSY - tail (Used from S/N 10-4-56) (See page #56 for breakdown)

2шт.

90

46936

SPARE PART RHMS 1/4-28 NF x 1/2 (30737 mt'g.) (Used up to S/N 10-4-56)

8шт.

91

R10886

SPARE PART SCREW #8-32 NC x 5/8 (35650 mt'g.) (Used from S/N 10-4-56)

6шт.

92

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (Used up to S/N 10-4-56)

8шт.
