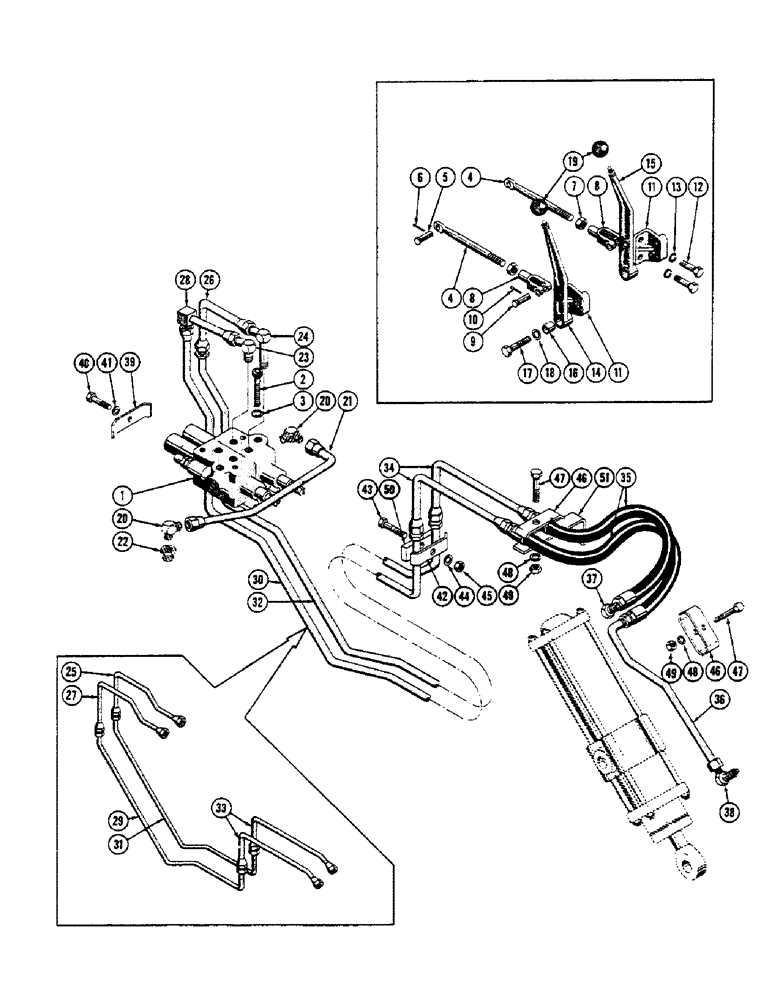

Запчасти Case 600 (218) - SCARIFIER HYD. WHEN USED WITH MECHANICAL DOZERS, VALVE, TUBES, HOSES, FITTINGS (S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

39069

VALVE ASS'Y - hydraulic control (See Figure #320 for breakdown)

1шт.

2

62-864

SHCS 1/2-20 NF x 4 (39069 mtg.) (47570)

3шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

4

32361

SNAP RING

LINK - valve control

2шт.

5

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661)

2шт.

6

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

10

132-26

COTTER PIN

PIN - cotter, 1/16 dia x 3/4 (48683)

1шт.

11

32322

BRACKET - control lever

2шт.

12

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mtg.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

14

38864

LEVER - valve control

1шт.

15

38866

LEVER - valve control

1шт.

16

32362

WASHER

- spacer

2шт.

17

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38864 & 38866 mtg.) (45709)

2шт.

18

195-33

WASHER,1/2"

- plain (48428)

2шт.

19

CAS31375

KNOB

BALL - grip

2шт.

20

REF

INSTRUCTION

ELBOW - 90 degree male, 3/4 JIC to 3/4 NP (See Figure #198, ref. #31)

2шт.

21

R10977

TUBE ASS'Y -, Serial Range: valve-tank

1шт.

22

REF

INSTRUCTION

BUSHING - pipe, 3/4 NP to 1-1/4 NP (See Figure #198, ref. #33)

1шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

1шт.

24

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

25

38400

TUBE ASS'Y - valve to cylinder (Used up tos erial #7060938)

1шт.

26

R11004

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

27

38402

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

28

R11002

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

29

39498

SPINDLE

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

30

74929

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

31

39496

SPINDLE

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

32

74925

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

33

35599

GASKET

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

2шт.

34

74921

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

2шт.

35

36547

HOSE

ASS'Y -, Serial Range: valve-cylinder

2шт.

36

37700

TUBE ASS'Y - cylinder bottom port

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

1шт.

38

D20168

RESTRICTOR ASS'Y - flow

1шт.

39

32978

PLATE ASSY.

CLAMP - tube (74925 & 74929 mtg.)

1шт.

40

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

41

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

42

31665

COLLAR CLAMP

CLAMP - tube (74925 & 74929 mtg.)

1шт.

43

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665 mtg.) (45635)

1шт.

44

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

46

31665

COLLAR CLAMP

CLAMP - hose (36547 mtg.)

3шт.

47

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

2шт.

48

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

49

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

50

71603

SPACER - clamp (Used from serial #7060938)

1шт.

51

33422

BRACKET - tube support

1шт.
