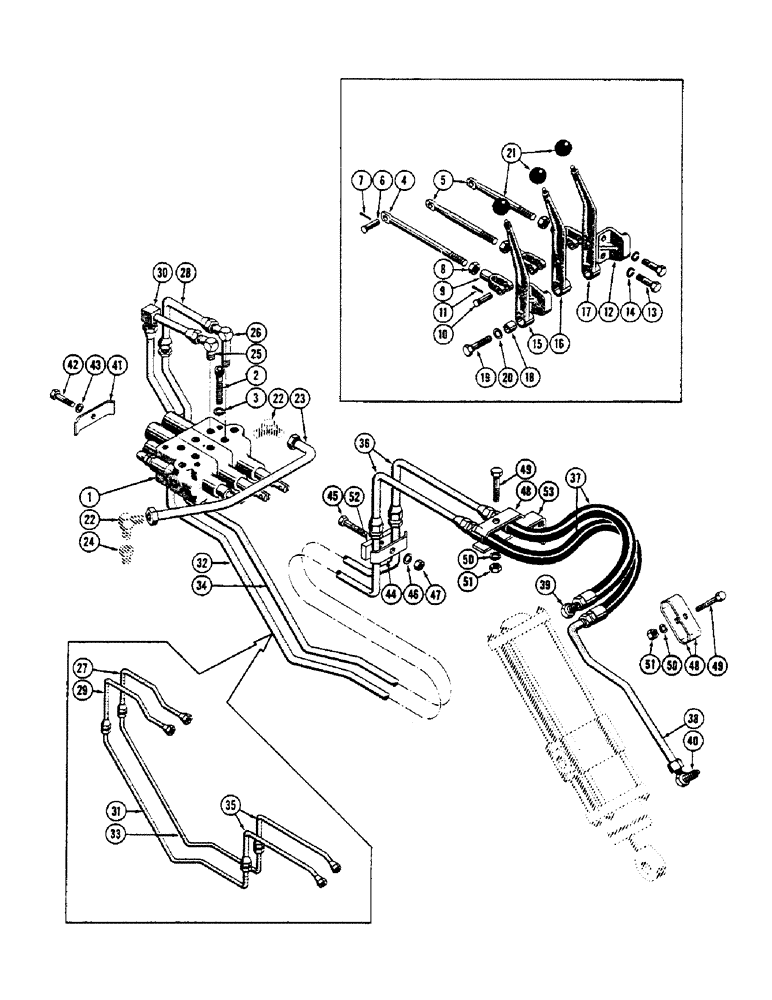

Запчасти Case 600 (216) - SCARIFIER HYD. WHEN USED WITH LOADER OR HYD. DOZERS, VALVE, TUBES, HOSES, FITTINGS (S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

38876

VALVE ASS'Y - hyd. control (See Figure #320 for breakdown)

1шт.

2

62-864

SHCS 1/2-20 NF x 4 (38876 mtg.) (47570)

3шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

4

35620

SHIM

LINK - valve control

1шт.

5

32361

SNAP RING

LINK - valve control

2шт.

6

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661)

3шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

3шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

3шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

3шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

3шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

3шт.

12

32322

BRACKET - control lever

2шт.

13

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mtg.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

15

38864

LEVER - valve control

1шт.

16

38865

LEVER - valve control

1шт.

17

38866

LEVER - valve control

1шт.

18

32362

WASHER

- spacer

3шт.

19

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (Lever mtg.) (45709)

3шт.

20

195-33

WASHER,1/2"

- plain (48428)

3шт.

21

31375

WASHER

BALL - grip

3шт.

22

REF

INSTRUCTION

90 degree male 3/4 JIC to 3/4 NP (See Figure #198 ref. #31)

2шт.

23

R10977

TUBE ASS'Y -, Serial Range: valve-tank

1шт.

24

REF

INSTRUCTION

BUSHING - pipe, 3/4 NP to 1-1/4 NP (See Figure #198 ref. #33)

1шт.

25

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

1шт.

26

218-498

ELBOW - 90 degree extra long male 5/8 to JIC to 1/2 NP (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

27

38400

TUBE ASS'Y - valve to cylinder (Used up to ser. #7060938)

1шт.

28

R11004

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

29

38402

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

30

R11002

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

31

39498

SPINDLE

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

32

74929

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

33

39496

SPINDLE

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

1шт.

34

74925

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

1шт.

35

35599

GASKET

TUBE ASS'Y - valve to cylinder (Used up to serial #7060938)

2шт.

36

74921

TUBE ASS'Y - valve to cylinder (Used from serial #7060938)

2шт.

37

36547

HOSE

ASS'Y -, Serial Range: valve-cylinder

2шт.

38

37700

TUBE ASS'Y - cylinder bottom, port

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

1шт.

40

D20168

RESTRICTOR ASS'Y - flow

1шт.

41

32978

PLATE ASSY.

CLAMP - tube (74925 & 74929 mtg.)

1шт.

42

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

43

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

44

31665

COLLAR CLAMP

CLAMP - tube (74925 & 74929 mtg)

1шт.

45

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.) (45635)

1шт.

46

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

47

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

48

31665

COLLAR CLAMP

CLAMP - hose (36547 mtg.)

3шт.

49

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

2шт.

50

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

52

71603

SPACER - clamp (Used from serial # 7060938)

1шт.

53

33422

BRACKET - tube support

1шт.
