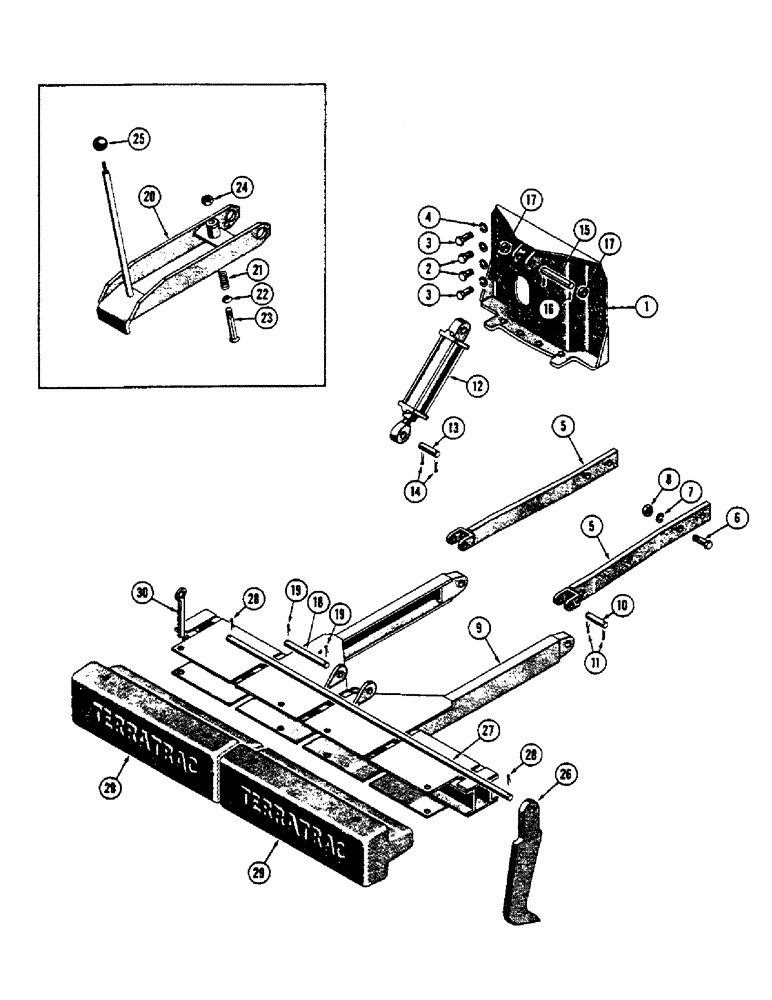

Запчасти Case 600 (206) - SCARIFIER INSTALLATION,, FRAME, CYLINDER, BRACKETS, COUNTERWEIGHTS, MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

32343

PLATE ASS'Y - backing

1шт.

2

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(32343 mtg.) (45758) Hex, 5/8"-18 x 1 1/2", G5

4шт.

3

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(32343 mtg.) (45760) Hex, 5/8"-18 x 2", G5

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

8шт.

5

32350

ARM ASS'Y - attaching

2шт.

6

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (32350 mtg.) (45787)

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

8

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

9

34348

FRAME ASS'Y - scarifier

1шт.

10

31715

PIN

(34348 mtg.)

2шт.

11

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

12

31751

DIPSTICK

CYLINDER ASS'Y - hydraulic (See Figure #290 for breakdown)

1шт.

13

31715

PIN

- (31751 mtg.)

1шт.

14

132-152

PIN

- cotter, 1/4 dia x 1-3/4 (48738)

2шт.

15

34334

PLUG

PIN - (31751 & 34309 mtg.)

1шт.

16

132-152

PIN

- coter, 1/4 dia. x 1-3/4 (48738)

2шт.

17

34335

SPACER

2шт.

18

34333

PLUG

PIN - scarifier lock

1шт.

19

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (48737) 1/4" x 1 1/2"

2шт.

34309

LOCK ASS'Y - scarifier

1шт.

20

NSS

NOT SOLD SEPARAT

LOCK ASS'Y

1шт.

21

11011

HOSE

SPRING

1шт.

22

34304

SEAT - spring

1шт.

23

73-664

SHCS 3/8-16 NC x 4 (46943)

1шт.

24

47862

CLIP

NUT - hex (3/8-16 NC)

1шт.

25

CAS31375

KNOB

BALL - grip

1шт.

26

31752

LINE

TOOTH - scarifier

5шт.

27

31714

ROD - holding

1шт.

28

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (48736) 1/4" x 1 1/4"

2шт.

29

19041

COUNTERWEIGHT

2шт.

30

CAS19055

PIN ASSY.

PIN ASSY - (19041 mtg.)

4шт.
