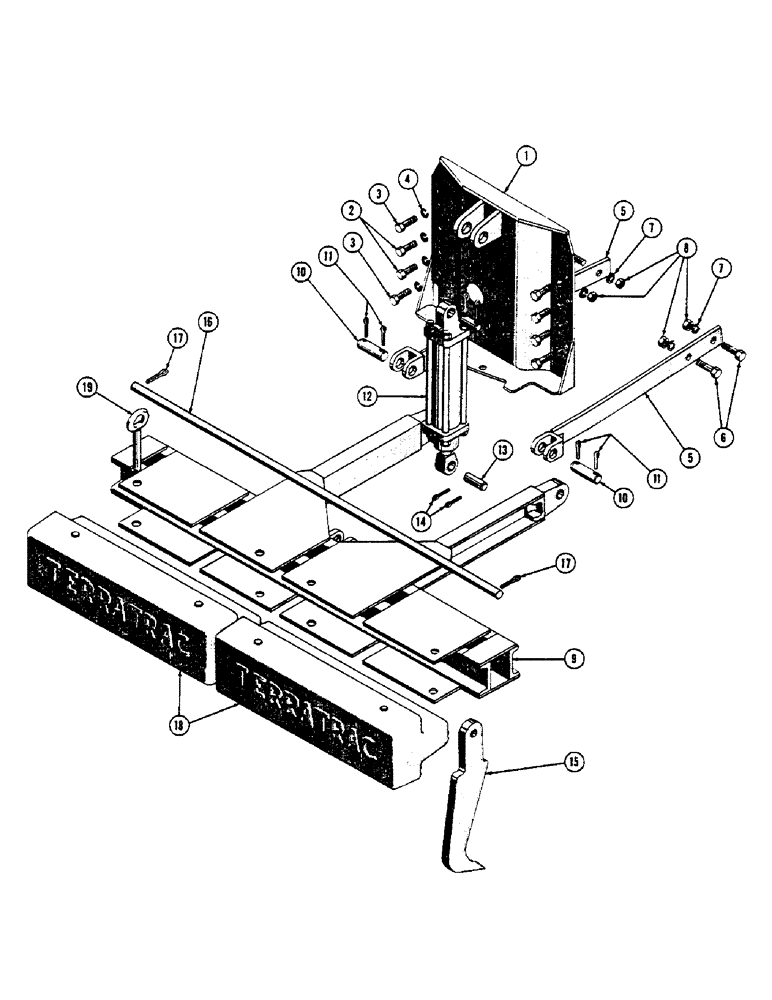

Запчасти Case 600 (204) - SCARIFIER INSTALLATION,, FRAME, CYL., BRACKETS, COUNTERWEIGHTS, MOUNTING PARTS (USED UP-S/N 4-26-56) (05) - UPPERSTRUCTURE CHASSIS

1

32343

PLATE ASS'Y - backing

1шт.

2

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(32343 mtg.) (45758) Hex, 5/8"-18 x 1 1/2", G5

4шт.

3

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(32343 mtg.) (45760) Hex, 5/8"-18 x 2", G5

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

8шт.

5

32350

ARM ASS'Y - attaching

2шт.

6

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (32350 mtg.) (45787)

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

8

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

9

31711

FRAME ASS'Y - scarifier

1шт.

10

31715

PIN

(31711 mtg.)

2шт.

11

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

12

30624

RING

CYLINDER ASS'Y - hydraulic (See Figure #284 for breakdown)

1шт.

13

31715

PIN

- (30624 mtg.)

2шт.

14

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

15

31752

LINE

TOOTH - scarifier

5шт.

16

31714

ROD - holding

1шт.

17

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

2шт.

18

19041

COUNTERWEIGHT - scarifier

2шт.

19

CAS19055

PIN ASSY.

PIN ASS'Y - (19041 mtg.)

4шт.
