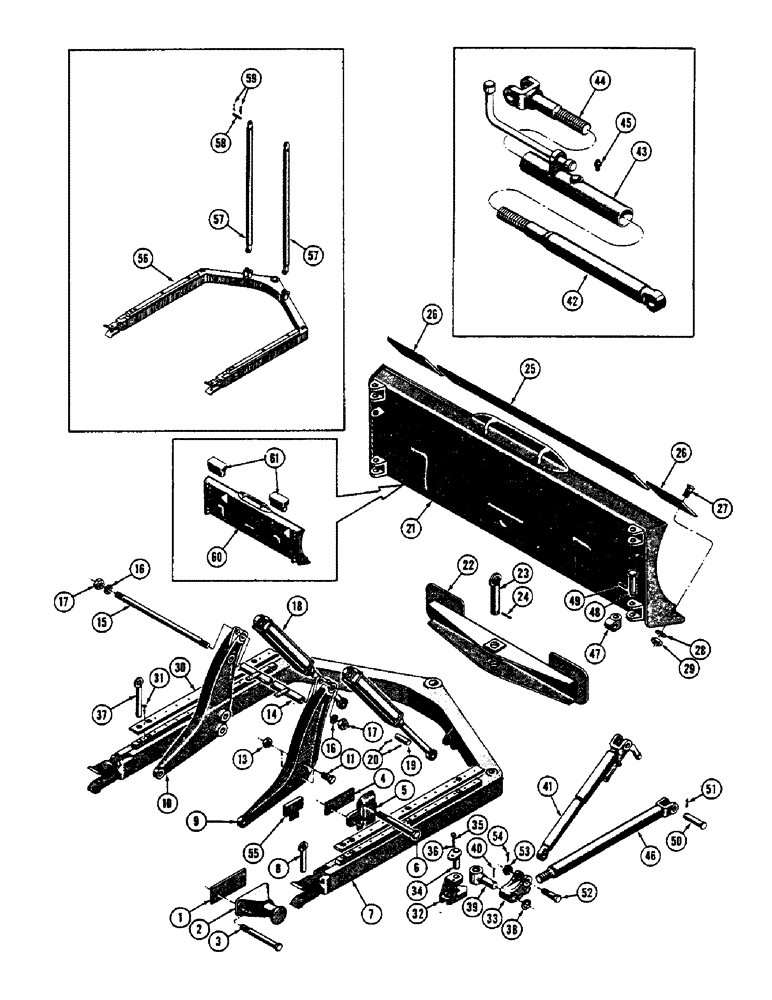

Запчасти Case 600 (182) - MECHANICAL ANGLE DOZER INSTALLATION, FRAME, MOLDBOARD, CYLINDERS, STRUTS, MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

34142

PIVOT

SPACER - push trunnion

2шт.

2

33721

TRUNNION - push

2шт.

3

16-12192

BOLT (MACHINE)

HHMB 3/4-16 NF x 12 (34142 & 33721 mtg.) (46494)

4шт.

4

34141

RING

SPACER - rub plate

2шт.

5

33720

PLATE - rub

2шт.

6

16-12192

BOLT (MACHINE)

HHMB 3/4-16 NF x 12 (34141 & 33720 mtg.) (46494)

4шт.

7

38236

WHEEL GEAR

"C" FRAME ASS'Y - dozer

1шт.

8

38679

PIN ASS'Y - (38236 mtg.)

2шт.

9

33463

BOLT

BRACKET ASS'Y - cylinder, R.H.

1шт.

10

33464

BRACKET ASS'Y - cylinder, L.H.

1шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

(33463 & 64 mtg.) (45761) Hex, 5/8"-18 x 2 1/4", G5

4шт.

12

RESERVED

1шт.

13

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF) (11946)

4шт.

14

33457

SPACER ASS'Y - cylinder brackets

1шт.

15

38170

SUPPORT

ROD - tie

1шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

17

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

18

32500

CYLINDER ASS'Y - hydraulic lift (See Figure #282 for breakdown)

2шт.

19

16888

PIN (32500 mtg.)

4шт.

20

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (48739) 1/4" x 2"

8шт.

21

38230

ROD

MOLDBOARD ASS'Y - dozer

1шт.

22

38276

SWIVEL ASS'Y - pivot

1шт.

23

16869

PIN ASS'Y - pivot

1шт.

24

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, (49870) 3/8" x 2 1/2", Slotted

1шт.

25

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

26

16042

EDGE

BLADE - cutting, end

2шт.

27

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow 1/2-13 NC x 1-3/4 (16792 & 16042 mtg.) (46707)

24шт.

28

92-8

LOCK WASHER,1/2"

(48448) 1/2"

24шт.

29

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

24шт.

30

38186

LINE

PLATE - slide

2шт.

31

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

SHCS 1/2-20 NF x 1-3/4 (38186 mtg.)

26шт.

32

39127

BRACKET

- slide

2шт.

33

39125

BRACKET - strut

2шт.

34

39130

PIN ASS'Y - (39127 mtg.)

2шт.

35

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS 1/2-20 NF x 3/4 (39130 mtg.) (45704)

2шт.

36

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

37

38204

PIN ASS'Y - angling stop

2шт.

38

39131

WASHER

2шт.

39

39124

PAWL

PIVOT BRACKET ASS'Y

2шт.

40

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, (49870) 3/8" x 2 1/2", Slotted

2шт.

41

38223

STRUT ASS'Y - upper

2шт.

42

38222

SCREW ASS'Y - bottom strut

1шт.

43

38063

TURNBUCKLE ASS'Y

1шт.

44

38055

SCREW ASS'Y - top strut

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

46

38225

STRUT ASS'Y - lower

2шт.

47

38023

UNIVERSAL

4шт.

48

38067

PIN (38023 mtg.)

4шт.

49

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

4шт.

50

38068

PIN (38223 & 38225 mtg.)

4шт.

51

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

4шт.

52

38025

SPARE PART

BOLT - strut (38223 mtg.)

2шт.

53

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - castle (3/4-16 NF) (48347)

2шт.

54

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), (48689) 3/32" x 1 3/4"

2шт.

55

33676

DRAWBAR SUPPORT

BLOCK ASS'Y - spring lockout

2шт.

56

39927

"C" FRAME ASS'Y - dozer loader combination, mechanical angel

1шт.

57

39925

ROD ASS'Y - dozer lift, special parts for mechanical angle dozer - loader combination

2шт.

58

16888

PIN (39925 mtg.), special parts for mechanical angle dozer - loader combination

4шт.

59

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (48739), Special parts for mechanical angle dozer - loader combination 1/4" x 2"

8шт.

60

R11134

MOLDBOARD ASS'Y - dozer, special parts for mechanical angle - backhoe combinaation

1шт.

61

30463

COUNTERWEIGHT, special parts for mechanical angle dozer - backhoe combination

2шт.
