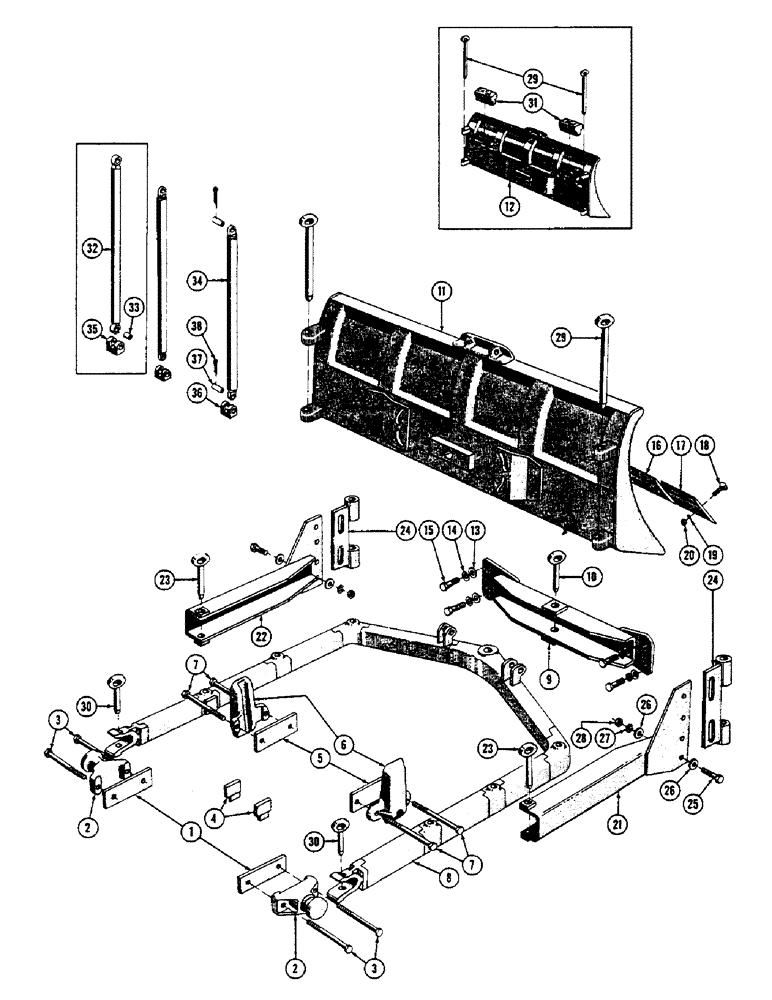

Запчасти Case 600 (174) - MECHANICAL ANGLE DOZER INSTALLATION, FRAME, MOLDBOARD, CYL, BRACKETS, MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

33828

ROPE

SPACER - attaching bracket (Used up to ser. #3-26-56)

2шт.

34142

PIVOT

SPACER - attaching bracket (Used from ser. #3-26-56)

2шт.

2

33721

BRACKET - attaching

2шт.

3

16-12192

BOLT (MACHINE)

HHMB 3/4-16 NF x 12 (33721 mtg.) (46494)

4шт.

4

33676

DRAWBAR SUPPORT

BLOCK ASS'Y - spring lockout

2шт.

5

33829

NUT

SPACER - rub plate (Used up to serial #3-26-56)

2шт.

34141

RING

SPACER - rub plate (Used from serial #3-26-56)

2шт.

6

33720

PLATE - rub

2шт.

7

16-12192

BOLT (MACHINE)

HHMB 3/4-16 NF x 12 (33720 mtg.) (46494)

4шт.

8

16882

"A" FRAME ASS'Y - dozer

1шт.

9

16857

CHANNEL ASS'Y - push

1шт.

10

16869

PIN ASS'Y - pivot

1шт.

11

16845

MOLDBOARD ASS'Y - dozer (Standard)

1шт.

12

34924

MOLDBOARD ASS'Y - dozer (Backhoe dozer comb)

1шт.

13

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (48416)

4шт.

14

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

4шт.

15

14-1628

HHCS 1"-14 NF x 1-3/4 (16845 mtg.) (45834)

4шт.

16

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

17

16042

EDGE

BLADE - cutting, end

2шт.

18

19-832

BOLT

- plow, 1/2-13 NC x 2 (16792 & 16042 mtg.) (46711)

24шт.

19

92-8

LOCK WASHER,1/2"

(48448) 1/2"

24шт.

20

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

24шт.

21

16885

ARM ASS'Y - stabilizer, R.H.

1шт.

22

16886

ARM ASS'Y - stabilizer, L.H.

1шт.

23

16863

PIN ASS'Y

2шт.

24

16891

BRACKET ASS'Y - tilting

2шт.

25

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS 1"-14 NF x 2-3/4 (16891 mtg.) (45838)

4шт.

26

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (48416)

8шт.

27

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

4шт.

28

25-1116

NUT,1"-14, G5

- reg. SF hex (1"-14 NF) (48109)

4шт.

29

16867

PIN ASS'Y

2шт.

30

38679

PIN ASS'Y

2шт.

31

30463

WEIGHT (Backhoe dozer comb. only)

2шт.

32

31926

ROD ASS'Y (Used up to serial #2-23-56), special parts for dozer - loader combination

2шт.

33

17631

BUSHING (Used up to serial #2-23-56), special parts for dozer - loader combination

4шт.

34

33933

ROD ASS'Y - (Used from serial #2-23-56), special parts for dozer - loader combination

2шт.

35

16809

COOLER

BRACKET - cylinder attaching (Used up to serial #2-23-56), special parts for dozer - loader combination

2шт.

36

31712

BRACKET - cylinder attaching (Used from serial #2-23-56), special parts for dozer - loader combination

2шт.

37

16726

PIN (31926 mtg.) (Used up to serial #2-23-56), special parts for dozer - loader combination

2шт.

16888

PIN (33933 mtg.) (Used from serial #2-23-56), special parts for dozer - loader combination

2шт.

38

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (48739), Special parts for dozer - loader combination 1/4" x 2"

8шт.
