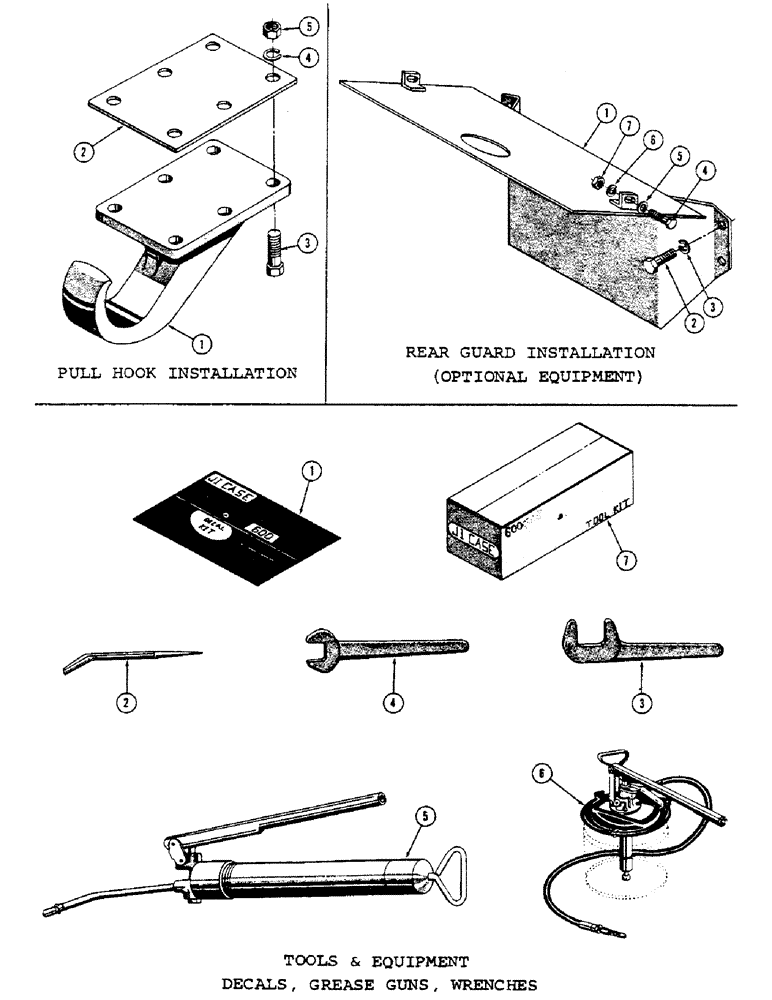

Запчасти Case 600 (150) - TOOLS & EQUIPMENT, DECALS, GREASE GUNS, WRENCHES (05) - UPPERSTRUCTURE CHASSIS

1

6776

KIT - decal (Standard tractor)

1шт.

8733

SHAFT

KIT - decal (Backhoe tractor)

1шт.

2

13757

CLAMP

BAR - pinch

1шт.

3

33886

SCREW

WRENCH

1шт.

4

R-12082

WRENCH

1шт.

5

NLS

NO LONGER SERVICED

GUN - grease

1шт.

6

13758

BRACKET

GUN - grease, high pressure (Optional equipment)

1шт.

7

CAS10079

TOOL

KIT - tool, owners (Optional equipment)

1шт.

7863

SHANK

GUARD INSTALLATION - rear, (optional equipment)

1шт.

1

38004

WASHER

GUARD ASS'Y. - rear, (optional equipment)

1шт.

2

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (38004 mt'g.) (45757), Rear guard installatin (optional equipment)

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Rear guard installation (optional equipment) 5/8"

4шт.

4

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (38004 mt'g.) (45656), rear guard installatin (optional equipment)

2шт.

5

95-6

WASHER,3/8"

(48406), rear guard installatin (optional equipment) 3/8"

2шт.

6

92-6

LOCK WASHER,3/8"

(48446), rear guard installatin (optional equipment) 3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), rear guard installatin (optional equipment)

2шт.

5525

HOOK INSTALLATION - pull, (optional equipment)

1шт.

1

10940

HOOK

- pull installation (optional equipment)

1шт.

2

32123

LEVER

PLATE - doubler (Used up to serial #7060799), pull hook installation (optional equipment)

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1 3/4 (10940 mt'g.) (45709), pull hook installation (optional equipment)

4шт.

4

92-8

LOCK WASHER,1/2"

(48448), pull hook installation (optional equipment) 1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- reg. Sf hex (1/2-20 NF) (48104), pull hook installation (optional equipment)

4шт.

10940

HOOK

- pull installation (for use with front weight) (optional equipment)

1шт.
