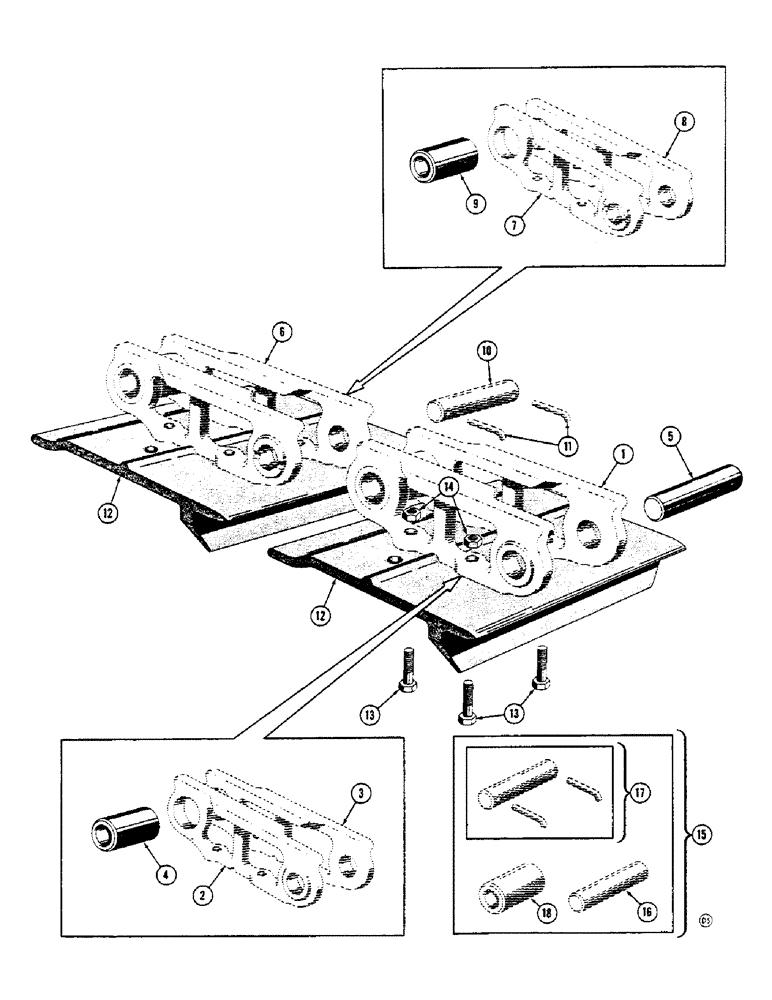

Запчасти Case 600 (130) - TRACK INSTALLATION,, TRACK CHAIN, LINKS, PINS, SHOES, MOUNTING PARTS (04) - UNDERCARRIAGE

5483

CHAIN (AG)

CHAIN ASS'Y. - track

4шт.

R2217

KIT

- track unit

16шт.

1

5004

COVER

UNIT ASS'Y. - track chain

1шт.

2

33805

LINK

- track, RH

1шт.

3

33806

LINK

- track, LH

1шт.

4

33800

X

BUSHING - track

1шт.

5

33803

HARNESS

PIN - track

2шт.

R2218

KIT

- track master unit

1шт.

6

5005

UNIT ASS'Y. - track chain master

1шт.

7

33801

LINK

- track master, RH

1шт.

8

33802

LINK

- track master, LH

1шт.

9

33800

X

BUSHING - track

1шт.

R2213

PIN

KIT - master pin

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - track master

1шт.

11

CASCASCAS32995

LOCK - master pin

2шт.

12

31888

PLATE - grouser 14"

68шт.

13

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

HHCS - special 7/16-20 NF x 1-5/8 (Used up to serial #3-11-56)

272шт.

R11865

BOLT

HHCS - special 7/16-20 NF x 1-1/2 (Used from serial #3-11-56)

272шт.

14

48092

NUT - lock (7/16-20 NF)

272шт.

15

R2190

SCREW

KIT - pin & bushing

1шт.

16

33803

HARNESS

PIN - track

64шт.

17

R2213

PIN

KIT - master pin (See ref. #10 & 11)

4шт.

18

33800

X

BUSHING - track

68шт.

R2213

PIN

KIT - track master pin (See ref. #17)

4шт.

NSS

NOT SOLD SEPARAT

PIN - track master (See ref. #10)

1шт.

CASCASCAS32995

LOCK - master pin (See ref. #11)

2шт.
