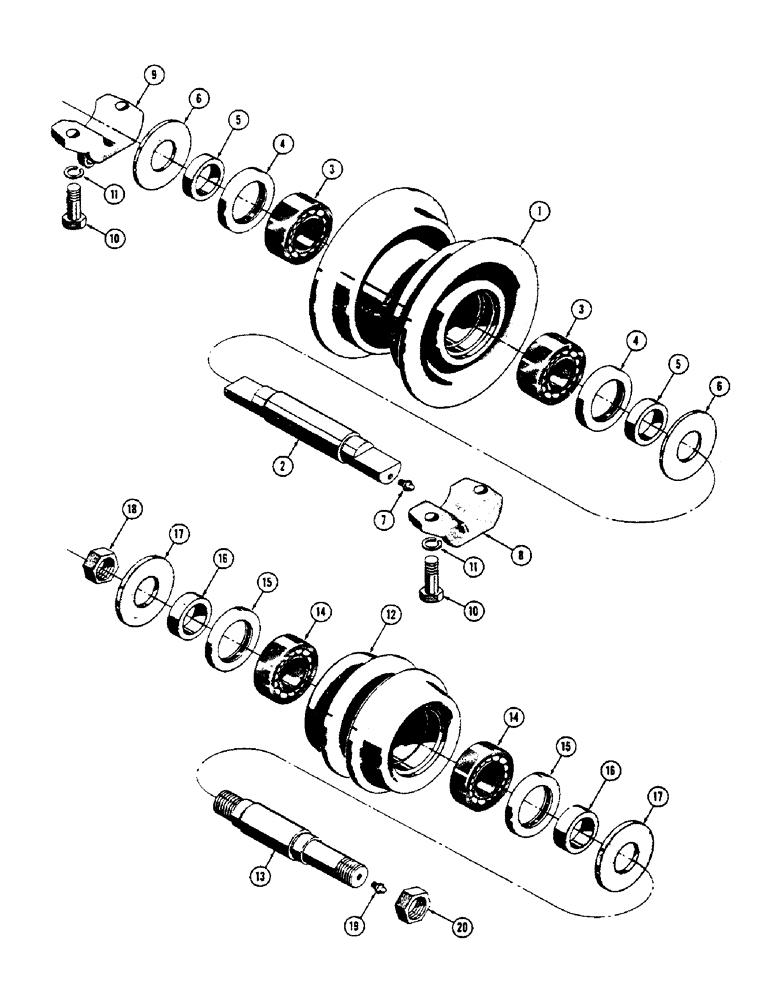

Запчасти Case 600 (124) - TRACK INSTALLATION, TRACK ROLLER, TRACK SUPPORT IDLER (04) - UNDERCARRIAGE

D33213

ROLLER

ASS'Y. - track

10шт.

1

31828

HUB ASS'Y. - track roller

1шт.

2

32056

SHAFT

- track roller

1шт.

3

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

- ball

2шт.

4

D29138

OIL SEAL

SEAL - oil

2шт.

5

32051

SPACER

- track roller

2шт.

6

30704

BEARING COVER

- track roller

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

8

32055

BOX

- track roller (Used up to serial # 6-18-56)

20шт.

32055

BOX

- track roller (Used from serial #6-18-56)

10шт.

9

51200225

CAP

BOX - track roller (Used from serial #6-18-56)

10шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1 1/2 (32055 & 33830 mt'g.) (45708)

40шт.

11

92-8

LOCK WASHER,1/2"

(48448) 1/2"

40шт.

D11664

CARRIER

IDLER ASS'Y. - track support

2шт.

12

31163

ROLLER

HUB ASS'Y. - support idler

1шт.

13

30707

SHAFT

- support idler

1шт.

14

VT2893

X

BEARING - ball

2шт.

15

40633

PLATE

SEAL - oil

2шт.

16

32051

SPACER

- support idler

2шт.

17

30704

BEARING COVER

- support idler

2шт.

18

131-370

LOCK NUT

NUT - lock (1"-14 NF) (48378)

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

20

131-370

LOCK NUT

NUT - lock (1"-14 NF) (48378)

1шт.
