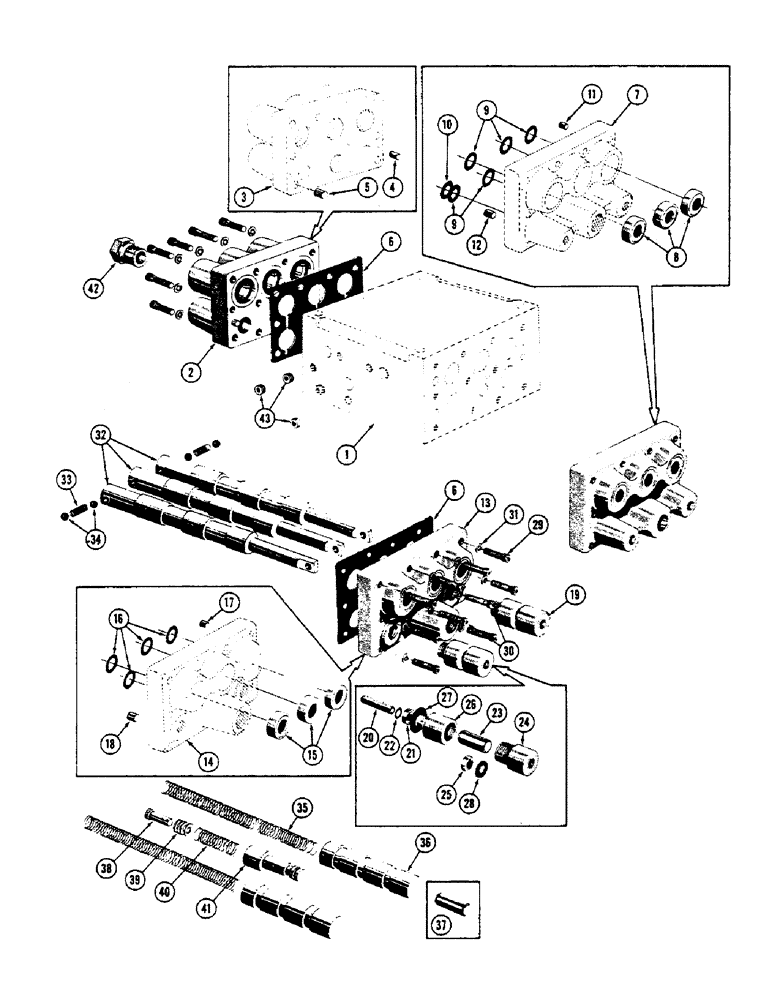

Запчасти Case 600 (308) - TRANSMISSION CONTROL VALVE ASSEMBLY, HOUSING, COVERS, SPOOLS, SPRINGS, SEALS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
31282
VALVE ASS'Y. - trans. control (used up to serial #7060674)
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
32461
COVER
ASS'Y. - valve body rear
1шт.
3
NSS
NOT SOLD SEPARAT
COVER - valve body rear
1шт.
4
32460
SHIELD
PIN - dowel, 3/16 dia. x 3/4
1шт.
5
32467
SUPPORTING ARM
PIN - dowel, 1/4 dia. x 3/4
1шт.
6
32445
CLIP
GASKET - valve body covers
2шт.
32462
SPARE PART
COVER ASS'Y. - valve body front (Used up to serial #8-4-56)
1шт.
7
NSS
NOT SOLD SEPARAT
COVER - valve body front
1шт.
8
40613
SPARE PART
SEAL - wiper
3шт.
9
49386
O-RING,5/8" ID x 13/16" OD x 3/32"
SEAL - "O" ring
6шт.
10
49387
X
SEAL - "O" ring
2шт.
11
32460
SHIELD
PIN - dowel, 3/16 dia. x 3/4
1шт.
12
32467
SUPPORTING ARM
PIN - dowel, 1/4 dia. x 3/4
1шт.
35119
SPACER
COVER ASS'Y. - valve body front (Used from serial #2-4-56)
1шт.
13
NSS
NOT SOLD SEPARAT
COVER ASS'Y. - valve front
1шт.
14
NSS
NOT SOLD SEPARAT
COVER - valve front
1шт.
15
40613
SPARE PART
SEAL - wiper
3шт.
16
49386
O-RING,5/8" ID x 13/16" OD x 3/32"
SEAL - "O" ring
4шт.
17
32460
SHIELD
PIN - dowel, 3/16 dia. x 3/4
1шт.
18
32467
SUPPORTING ARM
PIN - dowel, 1/4 dia. x 3/4
1шт.
19
35009
UNLOAD ASS'Y. - brake
2шт.
20
35010
ROD - piston, brake valve
1шт.
21
35011
SEAL - wiper
1шт.
22
35012
RING
- quad
1шт.
23
35013
SHIELD
PISTON - brake valve
1шт.
24
35014
HOUSING - brake valve piston
1шт.
25
35015
SEAL - wiper
1шт.
26
35016
FITTING - brake valve piston
1шт.
27
35017
ARM
GASKET - brake valve fitting
1шт.
28
35018
RING - quad
1шт.
29
32446
CONNECTING LINK
SCREW - drilled socket head, #10-32 NF x 1
22шт.
30
32463
TILLAGE BLADE
SCREW - sockethead, #10-32 NF x 1 3/4
2шт.
31
92-2
WASHER - med. sec. lock (48442)
24шт.
32
32438
WASHER
SPOOL ASS'Y. - valve
3шт.
33
32450
SPRING - ball detent, valve spool
3шт.
34
VT4905
X
BALL - detent
6шт.
35
32444
SPRING - brake unloader
2шт.
36
32443
LEVER
SPOOL - brake unloader
2шт.
37
32442
RING, SNAP
PISTON - brake unloader (Used up to serial #8-4-56)
2шт.
38
32466
PIN - pressure relief valve retaining
1шт.
39
32464
PLATE
WASHER - shim, pressure relief valve
1шт.
40
32459
PIN
SPRING - pressure relief valve
1шт.
41
32451
CLIP
VALVE - pressure relief
1шт.
42
32465
SCREW - pressure relief valve adjusting
1шт.
43
32447
LEVER
PLUG - pipe, socket head, 1/8 NP
16шт.
49386
O-RING,5/8" ID x 13/16" OD x 3/32"
SEAL - "O" ring (Used from serial #8-4-56) (Not shown)
1шт.
Выбрано товаров: 47
