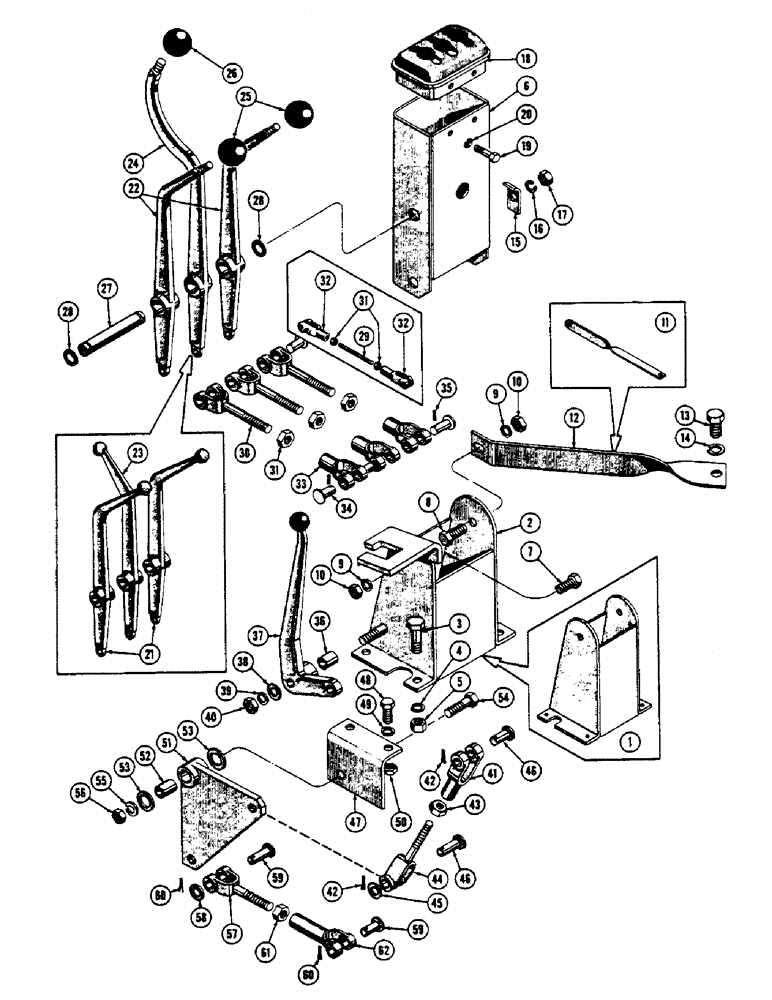

Запчасти Case 600 (102) - TRANSMISSION CONTROL SYSTEM, CONTROL TOWER, LEVERS, SHAFTS, LINKAGE (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
31995
BASE ASS'Y. - control tower (Used up to serial #10-2-56)
1шт.
2
35483
SCREW
BASE ASS'Y. - control tower (Used from serial #10-2-56)
1шт.
3
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2-20 NF x 1 1/4 (35483 or 31995 mt'g.) (45707)
4шт.
4
92-8
LOCK WASHER,1/2"
(48448) 1/2"
4шт.
5
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
4шт.
6
31994
TOWER ASS'Y. - control tower (Used up to serial #3-17-56)
1шт.
34083
TOWER ASS'Y. - control tower (Used from serial #3-17-56)
1шт.
8
46935
X
SCREW - special, 1/2-20 NF x 1 1/4 (34083 mt'g.)
1шт.
9
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
10
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
2шт.
11
32223
STRAP - tie (Used up to serial #7060674)
1шт.
12
74522
STRAP - tie (Used from serial #7060674)
1шт.
13
14-1016
BOLT,Hex, 5/8" - 18 x 1"
HHCS 5/8-18 NF x 1 (74522 mt'g.) (Used from serial #7060674)
1шт.
15
33182
CLAMP ASS'Y. - tower
1шт.
16
92-6
LOCK WASHER,3/8"
(48446) 3/8"
1шт.
17
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF) (48102)
1шт.
18
31909
COVER - control tower
1шт.
19
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
(31909 mt'g.) (45003) Hex, 1/4"-20 x 5/8", G5, Full Thd
4шт.
20
92-4
LOCK WASHER,1/4"
WASHER, LOCK, (48444) 1/4"
4шт.
21
31933
PIPE FITTING
LEVER - motion control (Used up to serial #3-17-56)
2шт.
22
34080
HUB
LEVER - motion control (Used from serial #3-17-56)
2шт.
23
31930
X
LEVER - direction control (Used up to serial #3-17-56)
1шт.
24
34081
BRAKE LINING
LEVER - direction control (Used from serial #3-17-56)
1шт.
25
CAS31375
KNOB
BALL - grip (Used from serial #3-17-56)
2шт.
26
34084
BALL - grip (Used from serial #3-17-56)
1шт.
27
31997
SHAFT - lever pivot
1шт.
28
31996
RING - retaining
2шт.
29
SNAP RING,2.44", Int, #244
LINK - trans. valve to control tower (Used up to serial #7060674)
3шт.
30
G10928
YOKE
CLEVIS - trans. valve to control tower (Used from serial #7060674)
3шт.
31
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF)
6шт.
32
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - adjustable (Used up to serial #7060674) (48602)
6шт.
33
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - adjustable (Used from serial #7060674) (48602)
3шт.
34
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke (48662) 5/16" x .940"
6шт.
35
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
6шт.
36
32197
COVER PLATE
BUSHING - range control lever
1шт.
37
31962
LINE
LEVER - range control
1шт.
38
95-8
WASHER,1/2"
- plain (48408) 1/2"
1шт.
39
92-8
LOCK WASHER,1/2"
(48448) 1/2"
1шт.
40
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
1шт.
41
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - adjustable (48605)
1шт.
42
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), (48695) 1/8" x 1"
2шт.
43
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF)
1шт.
44
48627
X
YOKE - male
1шт.
45
195-33
WASHER,1/2"
- plain (48428)
1шт.
46
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke (48665)
2шт.
47
31968
SOCKET
BRACKET - mounting, range control
1шт.
48
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2-20 NF x 1 1/4 (31968 mt'g.) (45707)
2шт.
49
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
50
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
2шт.
51
31964
DECAL
BELLCRANK - range control
1шт.
52
32430
LOCTITE
SPACER - bellcrank
1шт.
53
95-8
WASHER,1/2"
- plain (48408) 1/2"
2шт.
54
14-840
BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5
HHCS - 1/2-20 NF x 2 1/2 (31964 mt'g.) (45712)
1шт.
55
92-8
LOCK WASHER,1/2"
(48448) 1/2"
1шт.
56
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
1шт.
57
48626
YOKE - male
1шт.
58
195-33
WASHER,1/2"
- plain (48428)
1шт.
59
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke (48665)
2шт.
60
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), (48695) 1/8" x 1"
2шт.
61
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
1шт.
62
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - adjustable (48605)
1шт.
57
48626
YOKE - male
1шт.
Выбрано товаров: 64
