Запчасти Case 600 (100) - TRANSMISSION CONTROL SYSTEM, (USED UP TO SERIAL #9-22-56), HAND BRAKE, CABLES, SHEAVES, MTG. PARTS (03) - TRANSMISSION

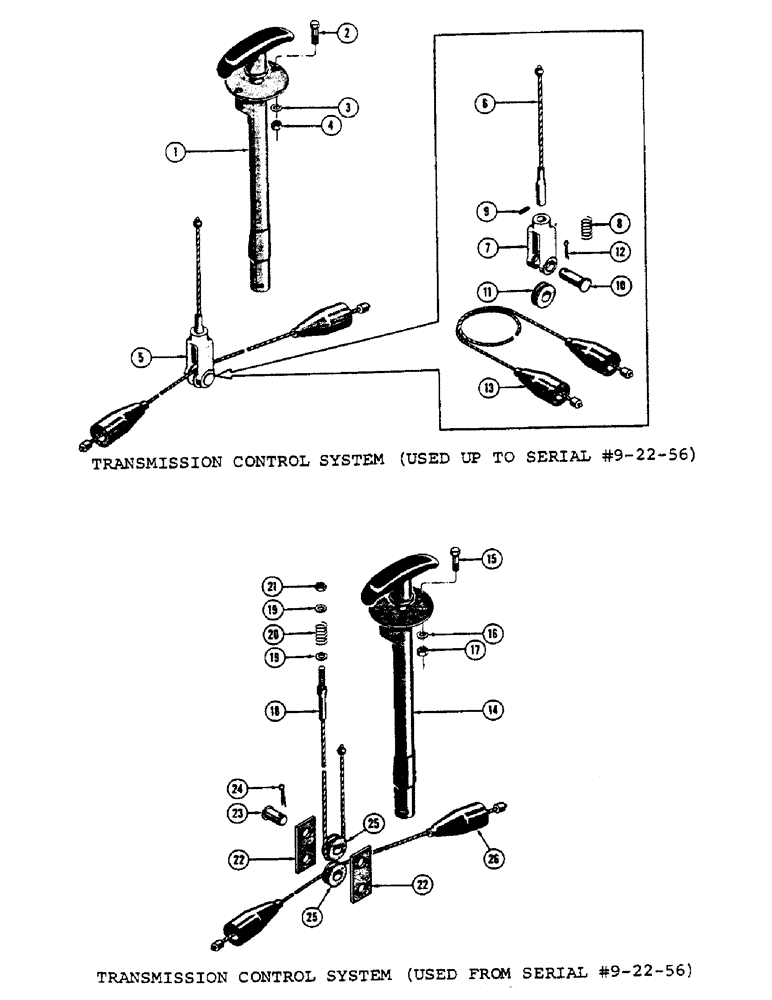

Схема запчастей Case 600 - (100) - TRANSMISSION CONTROL SYSTEM, (USED UP TO SERIAL #9-22-56), HAND BRAKE, CABLES, SHEAVES, MTG. PARTS (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

32212

LOCK PIN,M4 x 20, Slotted

ROD ASS'Y. - pull, hand brake, (used up to serial number 9-22-56)

1шт.

2

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (33212 mt'g.) (45604), (used up to serial number 9-22-56)

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), (Used up to S/N 9-22-56) 1/4"

2шт.

4

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100), (used up to serial number 9-22-56)

2шт.

5

33284

SUPPORT

YOKE ASS'Y. - hand brake, (used up to serial number 9-22-56)

1шт.

6

33279

DISC

CABLE - hand brake, (used up to serial number 9-22-56)

1шт.

7

33280

YOKE - end, (used up to serial number 9-22-56)

1шт.

8

33281

SPACER

SPRING, (used up to serial number 9-22-56)

1шт.

9

33282

BEARING HOUSING

PIN - roll, (used up to serial number 9-22-56)

1шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) (used up to S/N 9-22-56) 3/8" x 1.060"

1шт.

11

32364

SPACER

ROLLER, (used up to serial number 9-22-56)

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), (Used up to S/N 9-22-56) 3/32" x 5/8"

1шт.

13

32597

FORK

STRAND ASS'Y. - hand brake, (used up to serial number 9-22-56)

1шт.

14

32212

LOCK PIN,M4 x 20, Slotted

ROD ASS'Y. - pull, hand brake, (used from serial number 9-22-56)

1шт.

15

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (33212 mt'g.) (45604), used from serial number 9-22-56)

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), (Used from S/N 9-22-56) 1/4"

2шт.

17

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100), used from serial number 9-22-56)

2шт.

18

35480

SPRING CUP

CABLE ASS'Y. - hand brake, used from serial number 9-22-56)

1шт.

19

195-18

WASHER,1/4"

- plain (48424), used from serial number 9-22-56)

2шт.

20

34140

SPRING, used from serial number 9-22-56)

1шт.

21

48376

NUT - lock (1/4-28 NF), used from serial number 9-22-56)

1шт.

22

35481

LOCK

PLATE - cable block, used from serial number 9-22-56)

2шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) (used up to S/N 9-22-56) 3/8" x 1.060"

2шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), (Used from S/N 9-22-56) 3/32" x 5/8"

2шт.

25

32364

SPACER

ROLLER - hand brake, used from serial number 9-22-56)

2шт.

26

32597

FORK

STRAND ASS'Y. - hand brake, used from serial number 9-22-56)

1шт.

Выбрано товаров: 26
