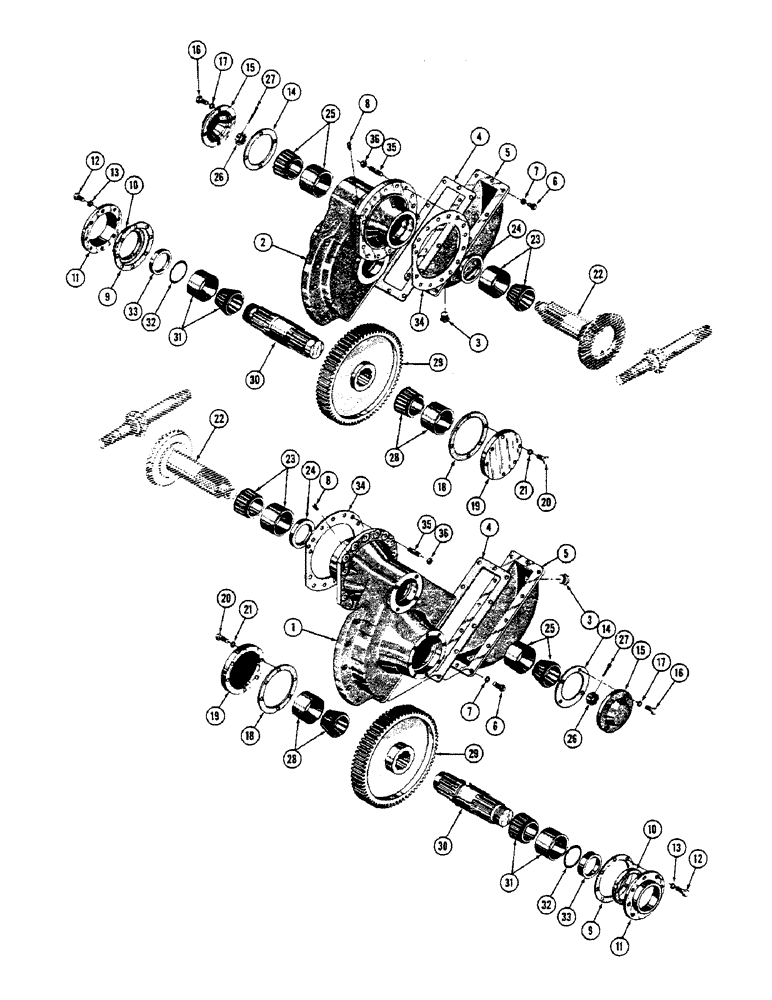

Запчасти Case 600 (092) - FINAL DRIVE INST. (STANDARD), (USED UP TO SERIAL #656-471) (03) - TRANSMISSION

73698

CONTROL

SPARE PART TRANSMISSION & FINAL DRIVE ASSY. - cont'd.

1шт.

73699

ADJUSTMENT SCREW

SPARE PART FINAL DRIVE ASSY, RH

1шт.

73700

SPRING

FINAL DRIVE ASSY, LH

1шт.

1

31043

SPARE PART HOUSING - RH extension (Used up to S/N 6-25-56)

1шт.

34561

SPARE PART HOUSING - RH extension (Used from S/N 6-25-56)

1шт.

2

31044

SPARE PART HOUSING - LH extension (Used up to S/N 6-25-56)

1шт.

34562

SPARE PART HOUSING - LH extension (Used from S/N 6-25-56)

1шт.

3

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

Pipe, ctsk. head, 1/2 NP (41838)

2шт.

4

32504

SPARE PART Ext. housing cover

1шт.

5

31036

X

COVER - ext. housing

1шт.

6

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(Cover mt'g.) (45657)

12шт.

7

92-6

LOCK WASHER,3/8"

(48446)

12шт.

8

221-675

PLUG

Pipe, magnetic ctsk. hd., 1/2 NP (41971)

1шт.

9

32505

GASKET - bearing retainer

1шт.

10

40618

X

SEAL - oil (Used up to S/N #4-13-56)

1шт.

40635

OIL SEAL

SEAL - oil (Used from S/N #4-13-56)

1шт.

11

30987

SPARE PART Bearing

1шт.

12

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(30987 mt'g.) (45657)

8шт.

13

92-6

LOCK WASHER,3/8"

(48446)

8шт.

14

32515

SPARE PART Extension hsg. cover

1шт.

15

30986

SPARE PART Extension hsg.

1шт.

16

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(30986 mt'g.) (45656)

4шт.

17

92-6

LOCK WASHER,3/8"

(48446)

4шт.

18

32517

SPARE PART Extension housing cover

1шт.

19

30979

COVER - extension housing

1шт.

20

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(30979 mt'g.) (45657)

6шт.

21

92-6

LOCK WASHER,3/8"

(48446)

6шт.

22

REF

INSTRUCTION

GEAR & SHAFT - bevel (See page #94, ref. #17)

1шт.

23

O3754AB

X

CONE - bearing (Used up to S/N 6-25-56)

1шт.

O3755AB

X

CUP - bearing (Used up to S/N 6-25-56)

1шт.

40429

SPARE PART (Used from S/N 6-25-56)

1шт.

O8162HT

CUP

Bearing (Used from S/N 6-25-56)

1шт.

24

40617

X

SEAL - oil (Used up to S/N 12-31-55)

1шт.

86982914

OIL SEAL

(Used from S/N 12-31-55)

1шт.

25

40394

ROLLER BEARING,1.5" ID x 1.216"

CONE - bearing (Used up to S/N 12-31-55)

1шт.

40395

BEARING, CUP

CUP (Used up to S/N 12-31-55)

1шт.

26

32510

SPARE PART Slotted (Thin)

1шт.

27

132-59

PIN

Cotter, 1/8 dia. x 2 1/2 (48703)

1шт.

28

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CONE - bearing

1шт.

A9891

CUP - bearing

1шт.

29

31935

SPARE PART GEAR - output (Used up to S/N 12-29-55)

1шт.

33717

SPARE PART GEAR - output (Used from S/N 12-20-55)

1шт.

30

32528

SPARE PART Output

1шт.

31

40417

SPARE PART BEARING ASSY. - roller (Cup & cone)

1шт.

32

49388

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL

1шт.

33

30660

SPARE PART

1шт.

34

NLS

NO LONGER SERVICED

Extension housing

1шт.

35

74261

SPARE PART 1/2-20 NF x 2 (f/d mt'g.)

30шт.

36

230-4618

LOCK NUT,1/2"-20, GA

(17586)

29шт.
