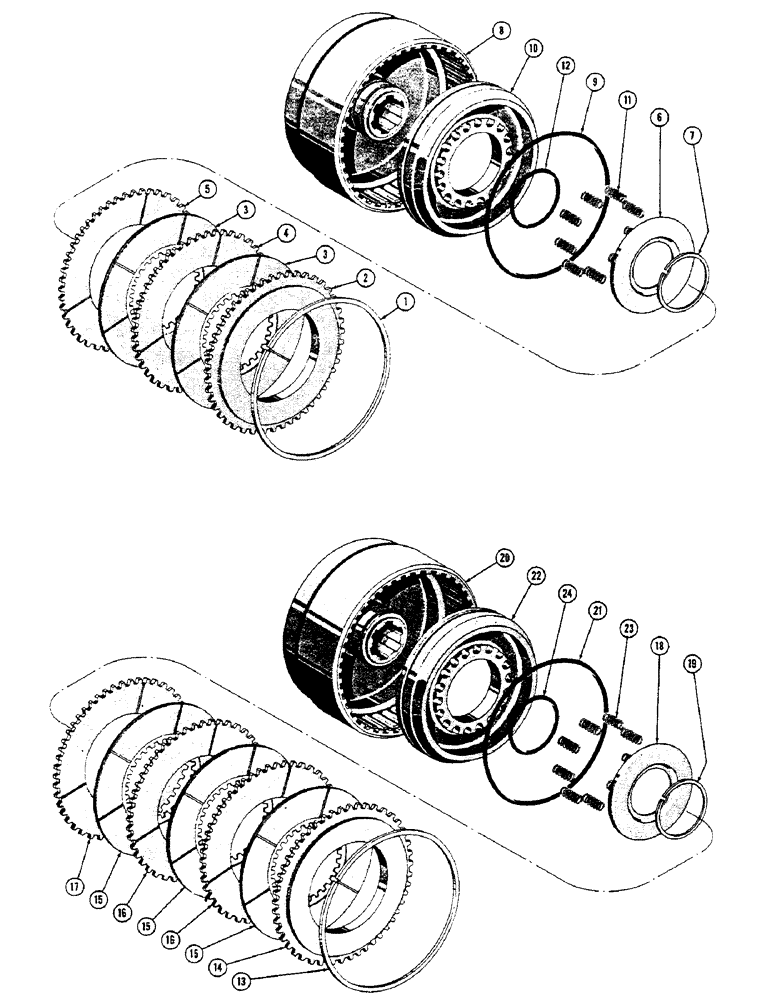

Запчасти Case 600 (088) - TRANSMISSION INSTALLATION, HYDRAULIC CLUTCH ASSYS (03) - TRANSMISSION

R14136

CLUTCH ASS'Y - hydraulic (Used from ser. #7061227)

4шт.

1

30785

RING

- snap

1шт.

2

34374

CLIP

PLATE - backing

1шт.

3

R12727

DISC - clutch

2шт.

4

30784

X

PLATE - clutch

1шт.

5

34375

PLATE - pressure

1шт.

6

R11016

RETAINER

- spring

1шт.

7

R11014

RING, SNAP

RING - snap

1шт.

8

R11018

X

CARRIER - clutch

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

R10725

PISTON

- clutch cup

1шт.

11

R11015

SPRING

- clutch

18шт.

12

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

R14137

CLUTCH ASS'Y - hydraulic (Used from ser. #7061273)

2шт.

13

30785

RING

- snap

1шт.

14

34374

CLIP

PLATE - backing

1шт.

15

R12727

DISC - clutch

3шт.

16

30784

X

PLATE - clutch

2шт.

17

34375

PLATE - pressure

1шт.

18

R11016

RETAINER

- spring

1шт.

19

R11014

RING, SNAP

RING - snap

1шт.

20

R11019

X

CARRIER - clutch

1шт.

21

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

22

R11017

PISTON - clutch cup

1шт.

23

R11015

SPRING

- clutch

18шт.

24

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.
