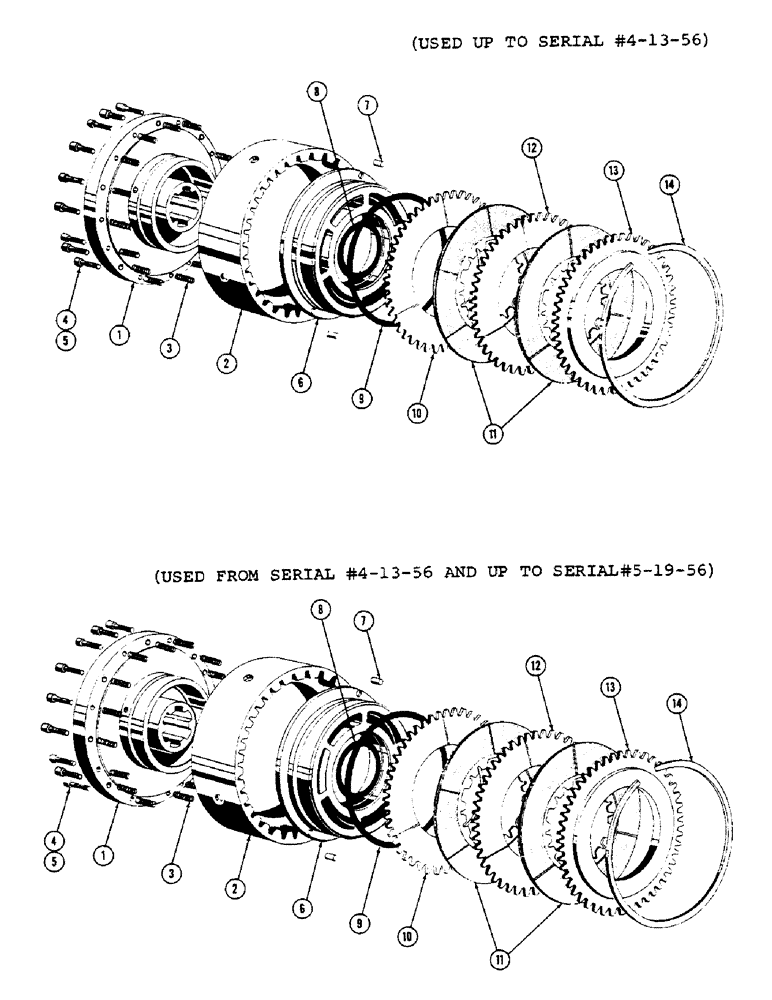

Запчасти Case 600 (084) - TRANSMISSION INSTALLATION, HYDRAULIC CLUTCH PARTS (03) - TRANSMISSION

33293

CLUTCH ASS'Y. - hydraulic (Used up to serial #4-13-56)

6шт.

1

32645

LINE

CUP - clutch

1шт.

2

30789

CARRIER - clutch cup

1шт.

3

32644

X

SPRING - clutch

24шт.

4

NLS

NO LONGER SERVICED

SCREW - socket head cap (Drilled) 1/4-28 NF x 7/8

24шт.

5

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

6

30788

PISTON - clutch

1шт.

7

32643

PRESSURE PIPE

PIN - dowel, 1/4 dia. x 1

2шт.

8

49389

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

30784

X

PLATE - clutch

1шт.

11

30787

DISC - clutch

2шт.

12

30784

X

PLATE - clutch

1шт.

13

30783

X

PLATE - backing

1шт.

14

30785

RING

- snap

1шт.

34300

CLUTCH ASS'Y. - hydraulic (Used from serial #4-13-56 and up to serial #5-19-56)

6шт.

1

34296

CUP - clutch

1шт.

2

34297

CARRIER - clutch cup

1шт.

3

32644

X

SPRING - clutch

24шт.

4

47716

LINE

SCREW - socket head cap (Drilled) 1/4-28 NF x 7/8

24шт.

5

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

6

30788

PISTON - clutch

1шт.

7

32643

PRESSURE PIPE

PIN - dowel, 1/4 dia. x 1

2шт.

8

49389

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

30784

X

PLATE - clutch

1шт.

11

30787

DISC - clutch

2шт.

12

30784

X

PLATE - clutch

1шт.

13

30783

X

PLATE - backing

1шт.

14

30785

RING

- snap

1шт.
