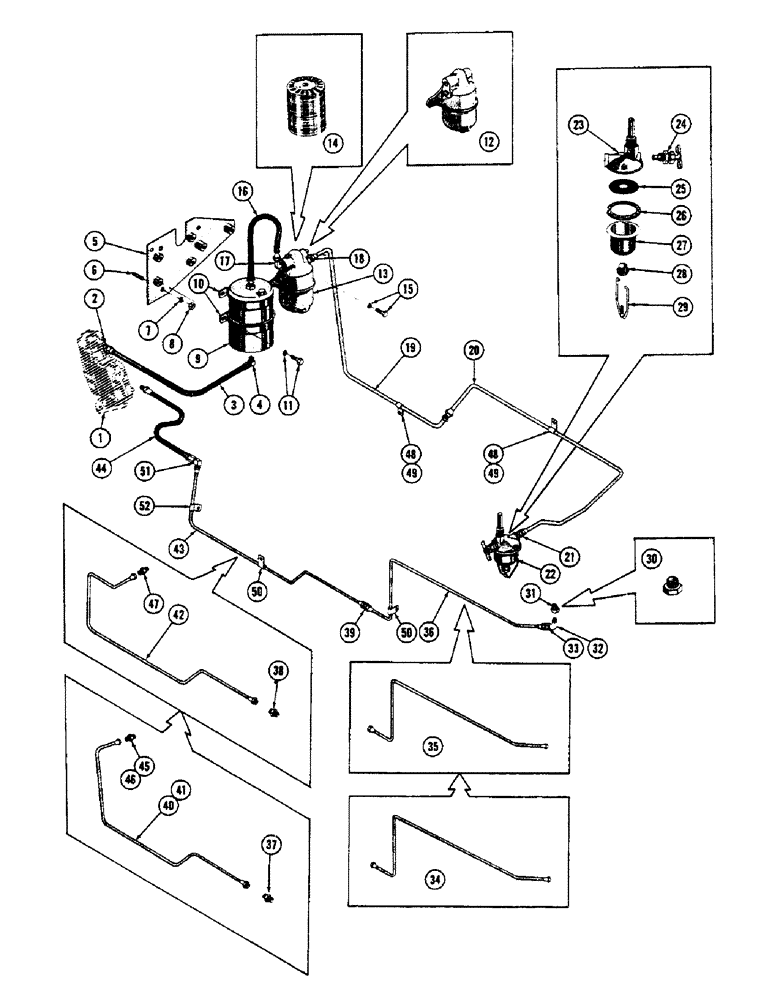

Запчасти Case 600 (042) - ENGINE FUEL SYSTEM, FUEL LINES, FITTINGS, STRAINERS (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection

1шт.

2

34359

X

UNION - half, SAE

1шт.

3

33879

HOSE ASSY - (Injection pump to final stage filter)

1шт.

4

41898

X

ELBOW - 90 degree street, 1/4 NP

1шт.

5

33867

PLATE ASSY - filter mt'g.

1шт.

6

11581

NUT

STUD 3/8-16 NC x 1 1/4 (33867 mt'g.) (See Figure #10, ref. #19 & Figure #18, ref. #15)

3шт.

7

92-6

LOCK WASHER,3/8"

(48446)

3шт.

8

30438

X

NUT NUT - hex (3/8-16 NC)

3шт.

9

O9985ABI

FILTER ASSY - final stage fuel

1шт.

10

30134

BRACKET ASSY final fuel filter

1шт.

11

33871

FRAME

SCREW & LOCKWASHER ASSY - 5/16-24 NF x 5/8 (34033 mt'g.)

4шт.

12

G13316

SPARE PART ASSY - primary fuel (Used up to S/N 1-18-57)

1шт.

13

R12209

FILTER ASSY - primary fuel (Used from S/N 1-18-57)

1шт.

14

R12210

SPARE PART Primary filter (Used from S/N 1-18-57)

1шт.

15

33872

X

SCREW & LOCKWASHER ASSY - 5/16-24 NF x 1 1/4 (R12209 mt'g.)

2шт.

16

10191

HOSE ASSY - final filter to primary filter

1шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

18

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Male, 3/8 JIC to 1/4 NP (Used up to S/N 7060843)

1шт.

222-809

HYD CONNECTOR,5/8"-18, 45 Degree Fl x 1/4" NPT

Male, 3/8 SAE to 1/4 NP (Used from S/N 7060843)

1шт.

19

33419

TUBE ASSY - fuel line (Used up to S/N 7060843)

1шт.

39931

SHIM

SPARE PART TUBE ASSY - fuel line (Used from S/N 7060843)

1шт.

20

33418

TUBE ASSY - fuel line (Used up to S/N 7060843)

1шт.

NLS

NO LONGER SERVICED

PN 32232; TUBE ASSY - fuel line (Used from S/N 7060843)

1шт.

21

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/8 NP (Used up to S/N 7060843)

1шт.

222-808

CONNECTOR - male, 3/8 SAE to 1/8 NP (Used from S/N 7060843)

1шт.

22

O3990ABI

STRAINER ASSY - fuel

1шт.

23

74668

HEAD ASSY - fuel strainer

1шт.

24

A11205

VALVE

Shut-off

1шт.

25

A11211

FILTER SCREEN

1шт.

26

A11208

GASKET

Bowl

1шт.

27

A11209

BOWL

Glass, Serial Range: (Optional-A11213)

1шт.

28

A11210

ADJUSTER

CUP & NUT - bail

1шт.

29

A11212

BAIL

Bowl

1шт.

30

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

Pipe (Used up to S/N 5-25-56)

1шт.

31

221-53

BUSHING

Pipe, 3/8 NP x 1/4 NP (Used from S/N 5-25-56)

1шт.

32

221-412

ELBOW,90 Degree, 1/4"-27, NPT

Street (Used from S/N 7060799)

1шт.

33

222-803

HYD CONNECTOR,7/16"-20, 45º Fl x 1/4" NPT

CONNECTOR - male, 1/4 NP - 1/4 JIC (Used up to S/N 7060843)

1шт.

222-803

HYD CONNECTOR,7/16"-20, 45º Fl x 1/4" NPT

Male, 1/4 NP - 1/4 SAE (Used from S/N 7060843)

1шт.

34

33417

SPARE PART TUBE ASSY - fuel line (Used up to S/N 5-25-56)

1шт.

35

34494

SOCKET

TUBE ASSY (from S/N 5-27-57)

1шт.

36

38008

SPARE PART TUBE ASSY - fuel line (Used from S/N 5-27-57)

1шт.

37

50415

X

COUPLING - union (Used up to S/N 5-25-56)

1шт.

38

50416

X

COUPLING (S/N 7060843)

1шт.

39

222-842

FITTING,1/8" NPT Fem Run x 1/8" NPT Male x 7/16"-20 Br

COUPLING - union (Used from S/N 7060843)

1шт.

40

33416

HOSE

TUBE ASSY - (Used up to S/N 5-25-56)

1шт.

41

34495

SPARE PART TUBE ASSY (from S/N 12-15-56)

1шт.

42

36285

TUBE ASSY (from S/N 7060943)

1шт.

43

74742

X

TUBE ASSY - fuel line (Used from S/N 7060943)

1шт.

44

36558

SCREW

HOSE ASSY - fuel line (Used from S/N 7060943)

1шт.

45

50449

X

CONNECTOR - male (Used up to S/N 5-25-56)

1шт.

46

50450

X

CONNECTOR, 1/8 NP (Used from S/N #12-15-56)

1шт.

47

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

(Used from S/N 7060843)

1шт.

48

33700

SPARE PART Tube (Used up to S/N 7060843)

2шт.

49

49837

CLAMP

Tube (Used from S/N 7060843)

2шт.

50

51200321

CLAMP

Tube (Used from S/N 7060843)

2шт.

51

R-12836

ELBOW - 90 degree union

1шт.

52

R-13002

CLAMP - tube

1шт.
