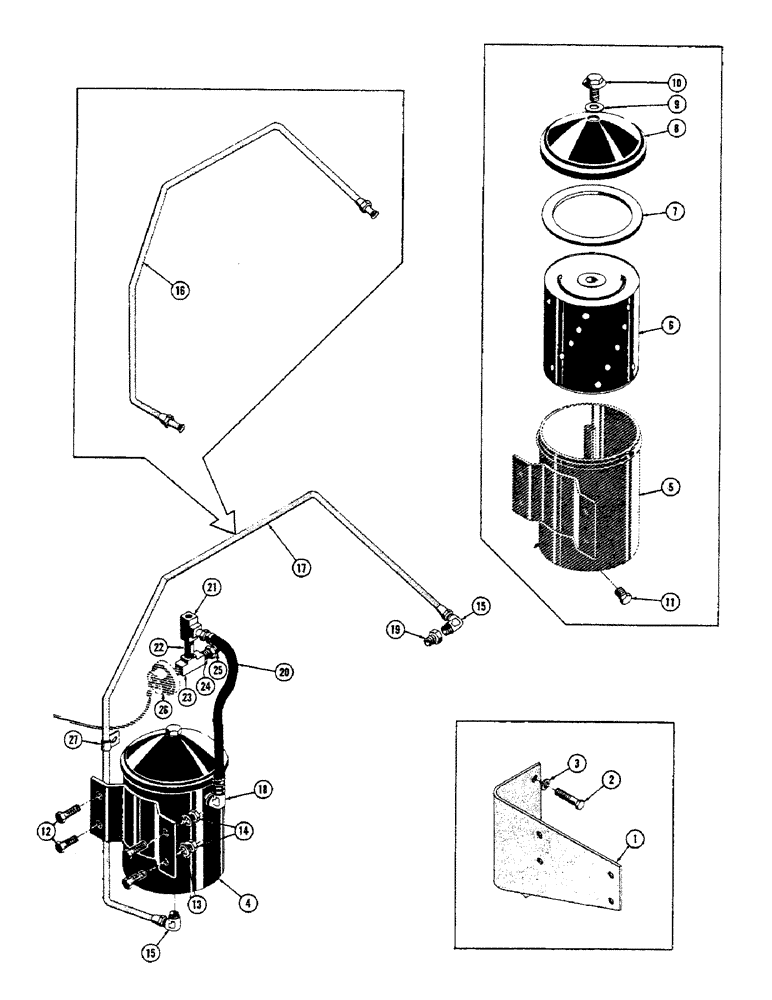

Запчасти Case 600 (044) - ENGINE LUBE OIL SYSTEM, OIL FILTER, TUBES, HOSES (01) - ENGINE

1

33344

BRACKET - oil filter (Used up to S/N 7060843)

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(33344 mt'g.) (Used up to S/N 7060843)

2шт.

3

92-6

LOCK WASHER,3/8"

(Used up to S/N 7060843) (48446)

2шт.

4

NLS

NO LONGER SERVICED

FILTER ASSY - oil

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSY - oil filter

1шт.

6

G45008

ELEMENT

CARTRIDGE - oil filter

1шт.

7

G46006

GASKET

Cover

1шт.

8

34850

CYLINDER

COVER ASSY - oil filter

1шт.

9

10054

COLLAR

GASKET - cover screw

1шт.

10

11921

COLLAR

SCREW - cover

1шт.

11

G46015

SPARE PART PLUG - filter drain

1шт.

12

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

(11485 mt'g.) (45630)

4шт.

13

92-5

LOCK WASHER,5/16"

(48445)

4шт.

14

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101)

4шт.

15

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male (50464)

2шт.

16

33428

TUBE ASSY - lube oil (Used up to S/N 7060843)

1шт.

17

39970

TUBE ASSY - lube oil (Used from S/N 7060843)

1шт.

18

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male (50464)

1шт.

19

42500

X

BUSHING - pipe, 1/8 NP to 1/4 NP (Used up to S/N 7060843)

1шт.

20

36556

HOSE ASSY.

Lube oil

1шт.

21

221-421

TEE,1/8" NPT

Pipe (41580)

1шт.

22

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

(41415)

1шт.

23

217-10

TEE,1/8" - 27 NPTF Fem

1шт.

24

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

(41400)

1шт.

25

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - pipe (41640)

1шт.

26

REF

INSTRUCTION

SWITCH ASSY - pressure (See Figure #56, ref. #9)

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

Tube

1шт.
