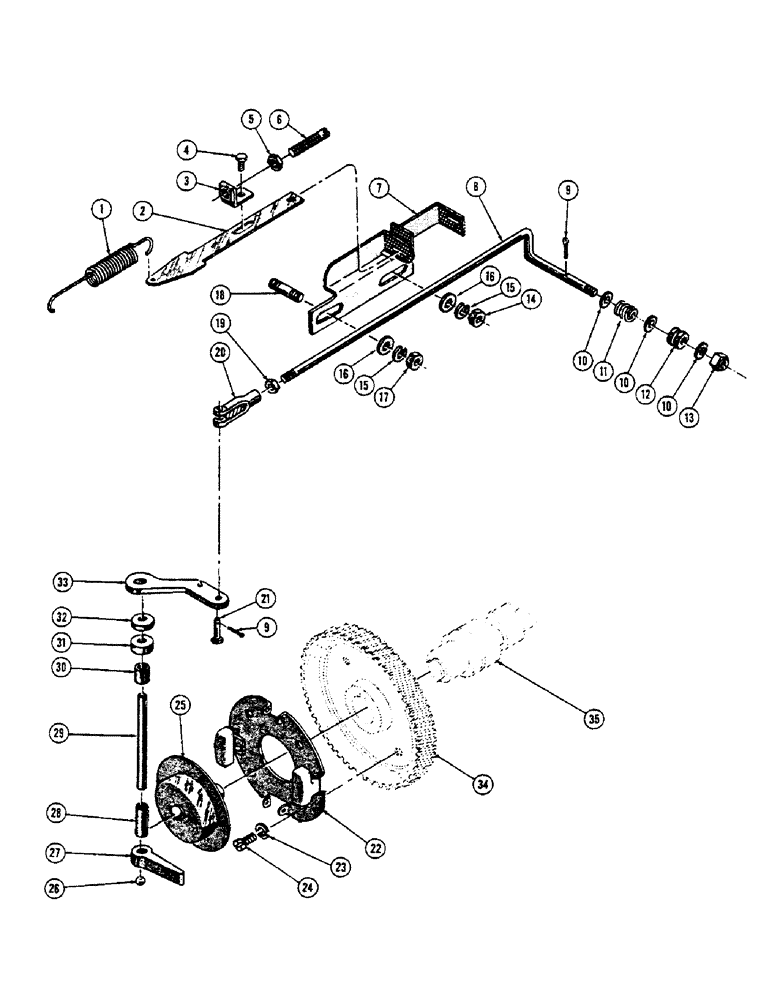

Запчасти Case 600 (038) - ENGINE ACCESSORIES, GOVERNOR, (USED UP TO SERIAL #7060734) (01) - ENGINE

1

33827

CLIP

SPRING - governor control

1шт.

2

33689

SPADE - governor high idle

1шт.

3

30592

CLIP - governor idle stop adjusting

1шт.

4

45603

NEEDLE BEARING

HHCS - 1/4-28 NF x 5/8

1шт.

5

10491

GENERAL TOOL

NUT - jam (1/4-28 NF)

1шт.

6

30591

SCREW - idle stop adjusting

1шт.

7

11075

BELT

STOP BRACKET & SUPPORT ASS'Y. - governor

1шт.

8

11573

SAFETY NUT

ROD - governor control

1шт.

9

33874

PIPE

PIN - cotter

2шт.

10

10032

NUT

WASHER - governor control rod

3шт.

11

10176

SPRING - governor control rod

1шт.

12

10177

GROMMET - governor control rod

1шт.

13

10179

NUT - elastic stop

1шт.

14

30426

NUT - hex (3/8-16 NC)

1шт.

15

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

16

195-25

WASHER,3/8"

- plain (48426)

2шт.

17

30438

X

NUT - hex (3/8-16 NC)

1шт.

18

30425

CONNECTOR, ELEC

STUD 3/8-16 NC x 1 1/2

2шт.

19

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

1шт.

20

30419

YOKE - governor control rod

1шт.

21

30421

PIN - yoke, governor control rod

1шт.

22

33876

SCREW

WEIGHT & SPIDER ASS'Y. - governor

1шт.

23

10728

WASHER - med. sec. lock

4шт.

24

10692

FITTING

SCREW - fillister head #10-24 NC x 3/8

4шт.

25

10664

FITTING

CUP & SHAFT ASS'Y. - governor

1шт.

26

O8635AB

X

BALL - 1/4 dia.

1шт.

27

10612

PIPE FITTING

LEVER - governor

1шт.

28

NLS

NO LONGER SERVICED

SPACER - governor rocker shaft

1шт.

29

10596

SHAFT - governor rocker

1шт.

30

30596

FLANGE

BEARING - governor rocker shaft

1шт.

31

30595

SEAL - oil, governor rocker shaft

1шт.

32

30594

SEAL - dust, governor rocker shaft

1шт.

33

10437

ARM - governor lever

1шт.

34

REF

INSTRUCTION

GEAR - timing (See Figure #18, ref. #40)

1шт.

35

REF

INSTRUCTION

CAMSHAFT - (See Figure #18, ref. #36)

1шт.
