Запчасти Case 600 (022) - DIESEL ENGINE INSTALLATION, OIL PAN, SUMP, OIL PUMP (01) - ENGINE

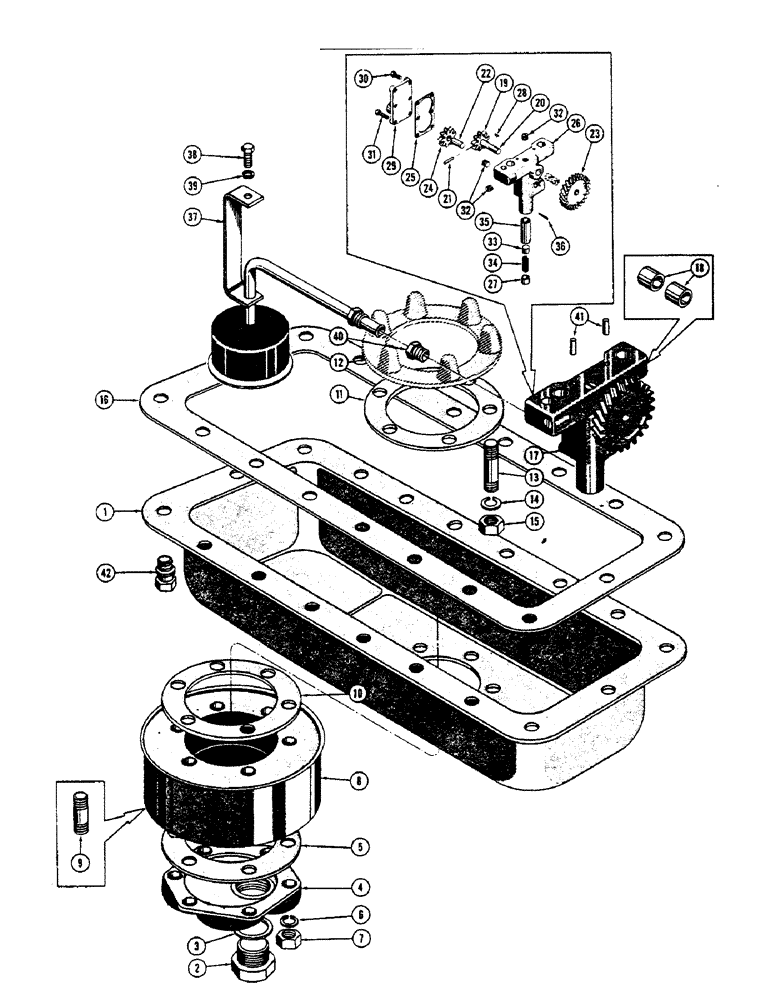

Схема запчастей Case 600 - (022) - DIESEL ENGINE INSTALLATION, OIL PAN, SUMP, OIL PUMP (01) - ENGINE

Артикул

Название

Примечание

Количество

1

R12202

PAN ASS'Y - oil

1шт.

2

VT4521

X

PLUG - oil pan drain

1шт.

3

VT4520

X

GASKET - oil pan drain plug

1шт.

4

33855

COVER ASS'Y - hand hole

1шт.

5

R12027

GASKET - hand hole, Serial Range: cover-sump

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

6шт.

7

47860

NUT - hex (1/4-20 NC) (33855 mtg.)

6шт.

8

33851

SET

SUMP ASS'Y

1шт.

9

10965

ARTICULATION

STUD - 1/4-20 NC x 1" (Hand hole, Serial Range: cover-sump)

6шт.

10

R12027

GASKET - sump to oil pan

1шт.

11

33849

GASKET - hand hole, Serial Range: reinforcement-pan

1шт.

33848

REINFORCEMENT ASS'Y - hand hole

1шт.

12

NSS

NOT SOLD SEPARAT

REINFORCEMENT - hand hole

1шт.

13

10965

ARTICULATION

STUD - 1/4-20 NC x 1" (Sump to pan)

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

6шт.

15

47860

NUT HEX. - 1/4-20 NC

6шт.

16

10676

PIPE FITTING

GASKET - oil, Serial Range: pan-c/case

1шт.

17

34255

PUMP ASS'Y - oil (Complete)

1шт.

5488

KIT - oil pump repair

1шт.

18

30184

BUSHING

- drive shaft (See ref. #33)

2шт.

10651

PIPE FITTING

GEAR & SHAFT ASS'Y - drive

1шт.

19

16928

GEAR - drive

1шт.

20

16929

SHAFT - drive

1шт.

21

16930

PIN - retaining

1шт.

22

10569

STUD - oil pump idler gear

1шт.

23

10427

HARNESS

GEAR - oil pump drive

1шт.

24

10428

HARNESS

GEAR - oil pump driven

1шт.

25

30252

TOOL KIT

GASKET - oil pump cover

1шт.

26

10665

MOUNTING PARTS

BODY ASS'Y - oil pump

1шт.

27

10597

PIPE FITTING

SLEEVE - oil pressure relief valve

1шт.

28

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

KEY - Woodruff (10427 mtg.), Support, Tongue, Right

1шт.

29

30177

SHAFT

COVER - oil pump

1шт.

30

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4-20 NC x 5/8 (30177 mtg.) (46911)

5шт.

31

73-416

BOLT (MACHINE),Flat, 1/4"

SCREW - 1/4-20 NC x 1 (30177 mtg.) (46912)

1шт.

32

A10766

BODY

PLUG - pipe, oil pump body

3шт.

33

A155144

VALVE, PRESSURE RELI

- relief, oil pressure

1шт.

34

VT3354

X

SPRING - oil pressure relief valve

1шт.

35

VT3221

X

RETAINER - relief valve spring

1шт.

36

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (30218 mtg.) (48697) 1/8" x 1 1/4"

1шт.

37

33841

OIL STRAINER & TUBE ASSY

1шт.

38

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Tube support to bearing cap (45003) Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

40

30204

CONNECTOR - oil pick-up tube

1шт.

41

VT3355

PIN - 3/16 x 3/8 - oil pump body to bearing cap

2шт.

42

10691

SCREW & LOCKWASHER ASS'Y - 5/16-18 NC x 5/8 (R12202 mtg.)

17шт.

11066

BELT

SCREW & LOCKWASHER ASS'Y - 5/16-18 NC x 7/8 (R12202 mtg.)

1шт.

Выбрано товаров: 46
