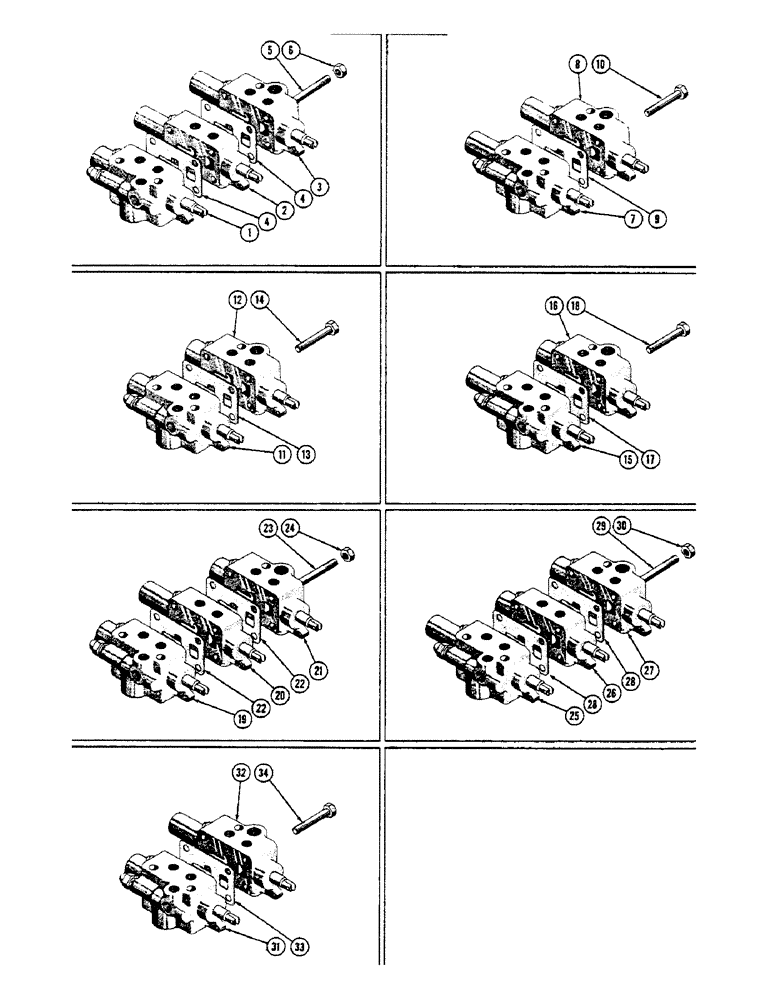

Запчасти Case 600 (320) - HYDRAULIC VALVES, END SECTIONS, CENTER SECTIONS (07) - HYDRAULIC SYSTEM

38876

VALVE ASS'Y. - hydraulic

1шт.

1

16401

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

2

38995

SECTION ASS'Y. - center (See Figure #322 for breakdown)

1шт.

3

16402

CYLINDER

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

4

16405

COLLAR

GASKET - valve

2шт.

5

39010

STUD 1/2-13 NC x 20 NF x 6 1/8

4шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock (1/2-20 NF)

4шт.

39069

VALVE ASS'Y. - hydraulic

1шт.

7

17368

CLEVIS COUPLING

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

8

16402

CYLINDER

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

9

16405

COLLAR

GASKET - valve

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(45115) Hex, 1/2"-13 x 3 1/4", G5

1шт.

74501

VALVE ASS'Y. - hydraulic

1шт.

11

16401

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

12

R-13395

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

13

16405

COLLAR

GASKET - valve

1шт.

14

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(45115) Hex, 1/2"-13 x 3 1/4", G5

4шт.

74503

VALVE ASS'Y. - hydraulic

1шт.

15

17368

CLEVIS COUPLING

SECTION ASS'Y. - (See Figure #322 for breakdown)

1шт.

16

R-13395

SECTION ASS'Y. - (See Figure #324 for breakdown)

1шт.

17

16405

COLLAR

GASKET - valve

1шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(45115) Hex, 1/2"-13 x 3 1/4", G5

4шт.

74547

VALVE ASS'Y. - hydraulic

1шт.

19

16401

SECITON ASS'Y. - end (See Figure #322 for breakdown)

1шт.

20

38995

SECTION ASS'Y. - center (See Figure #322 for breakdown)

1шт.

21

R-13395

SECTION ASS'Y. - end (See Figure #324 for breakdown)

1шт.

22

16405

COLLAR

GASKET - valve

2шт.

23

39010

STUD - 1/2-13 NC x 20 NF x 6 1/8

4шт.

24

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock (1/2-20 NF)

4шт.

74502

LID

VALVE ASS'Y. - hydraulic

1шт.

25

17368

CLEVIS COUPLING

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

26

R-13396

SECTION ASS'Y. - center (See Figure #324 for breakdown)

1шт.

27

R-13395

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

28

16405

COLLAR

GASKET - valve

2шт.

29

39010

STUD - 1/2-13 NC x 20 NF x 6 1/8

4шт.

30

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock (1/2-20 NF)

4шт.

16400

VALVE ASS'Y. - hydraulic

1шт.

31

16401

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

32

16402

CYLINDER

SECTION ASS'Y. - end (See Figure #322 for breakdown)

1шт.

33

16405

COLLAR

GASKET - valve

1шт.

34

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(45115) Hex, 1/2"-13 x 3 1/4", G5

4шт.
