Запчасти Case 600 (316) - HYDRAULIC VALVE ASSEMBLY, HOUSINGS, SPOOLS, SEALS, SPRINGS (07) - HYDRAULIC SYSTEM

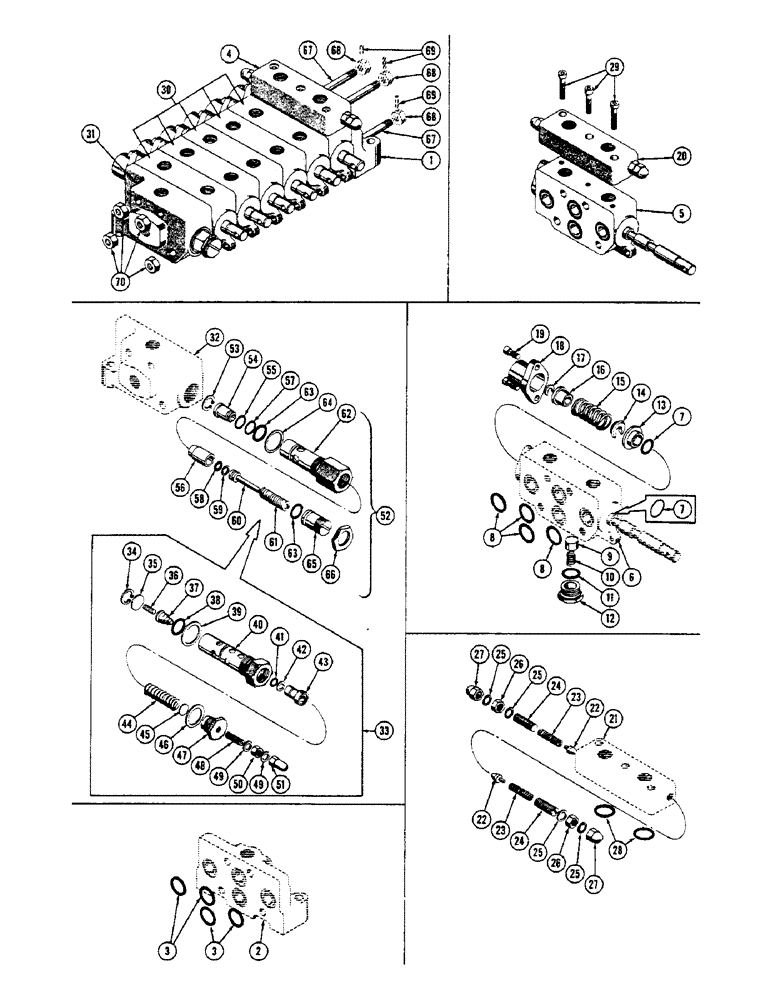

Схема запчастей Case 600 - (316) - HYDRAULIC VALVE ASSEMBLY, HOUSINGS, SPOOLS, SEALS, SPRINGS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

34642

X

VALVE ASSEMBLY - hydraulic

1шт.

1

23103

DECAL

SECTION ASSEMBLY - end

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

3

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

4

23107

HYDRAULIC HOSE

SECTION ASSEMBLY - center

1шт.

5

23108

HYDRAULIC HOSE

VALVE ASSEMBLY - double acting

1шт.

6

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y. - valve

1шт.

7

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

9

23116

HYDRAULIC HOSE

POPPET - check

1шт.

10

23118

HYDRAULIC HOSE

SPRING

1шт.

11

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

12

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

13

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

14

16205

RETAINER - spring

1шт.

15

23127

SPRING

1шт.

16

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

17

16413

HOSE

- spring guide

1шт.

18

23115

HYDRAULIC HOSE

CAP - valve

1шт.

19

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (47377)

2шт.

20

23109

HYDRAULIC HOSE

VALVE UNIT - special relief

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

22

16227

HOSE

POPPET - relief valve

2шт.

23

16404

SPRING CUP

SPRING

2шт.

24

NLS

NO LONGER SERVICED

SCREW - adjusting

2шт.

25

16219

GASKET

4шт.

26

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex (9/16 NF) (48195)

2шт.

27

48355

NUT - cap (9/16 NF)

2шт.

28

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

29

84-624

SHCS 3/8-16 NC x 1 1/2 (46964)

3шт.

30

23112

HYD VALVE SECTION

SECTION ASS'Y. - center

5шт.

6

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y. - valve

1шт.

7

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

8

23105

X

SEAL - "O" ring

4шт.

9

23116

HYDRAULIC HOSE

POPPET - check

1шт.

10

23118

HYDRAULIC HOSE

SPRING

1шт.

11

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

12

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

13

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

14

16205

RETAINER - spring

1шт.

15

23127

SPRING

1шт.

16

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

17

NLS

NO LONGER SERVICED

- spring guide

1шт.

18

23115

HYDRAULIC HOSE

CAP - valve

1шт.

19

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (47377)

2шт.

31

23128

HYDRAULIC HOSE

SECTION ASS'Y. - end

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - end section

1шт.

33

23130

VALVE - relief, sub ass'y.

1шт.

34

23138

O-RING

RING - snap

1шт.

35

23144

THREADED TIE-ROD

WASHER

1шт.

36

23137

VALVE SPRING

SPRING - relief valve

1шт.

37

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

38

O8377AB

X

SEAL - "O" ring

1шт.

39

23146

WASHER

- fibre

1шт.

40

23133

HYDRAULIC HOSE

SHELL - valve cartridge

1шт.

41

VT2983

X

SEAL - "O" ring

1шт.

42

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - back up

1шт.

43

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

44

23136

SPRING

- relief valve

1шт.

45

23143

WASHER

- relief valve

1шт.

46

23148

SEAL

WASHER - fibre

1шт.

47

23139

GASKET

CAP - valve

1шт.

48

23140

STUD

SCREW - adjusting

1шт.

49

23150

WASHER

- copper

2шт.

50

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam

1шт.

51

NLS

NO LONGER SERVICED

NUT - cap

1шт.

52

R11048

VALVE - relief, sub ass'y.

1шт.

53

23138

O-RING

RING - snap

1шт.

54

R12511

POPPET

- relief valve

1шт.

55

O8416AB

X

SEAL - "O" ring

1шт.

56

R12510

SEAT

- floating

1шт.

57

R12512

OIL SEAL

RING - back up

1шт.

58

O9787AB

X

SEAL - "O" ring

1шт.

59

R12509

RING

- back up

1шт.

60

R12508

PLUNGER - displacement

1шт.

61

23136

SPRING

- relief valve

1шт.

62

R12505

SHELL - cartridge

1шт.

63

O8377AB

X

SEAL - "O" ring

2шт.

64

23146

WASHER

- relief valve

1шт.

65

R12506

SCREW - spring adjusting

1шт.

66

R12507

LOCK NUT

- locking

1шт.

38578

SOCKET WRENCH

STUD ASSEMBLY

4шт.

67

NSS

NOT SOLD SEPARAT

STUD - 1/2-20 NF x 16 3/4

1шт.

68

NSS

NOT SOLD SEPARAT

NUT - hex (1/2-20 NF)

1шт.

69

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 dia. x 3/4

1шт.

70

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

4шт.

Выбрано товаров: 86
