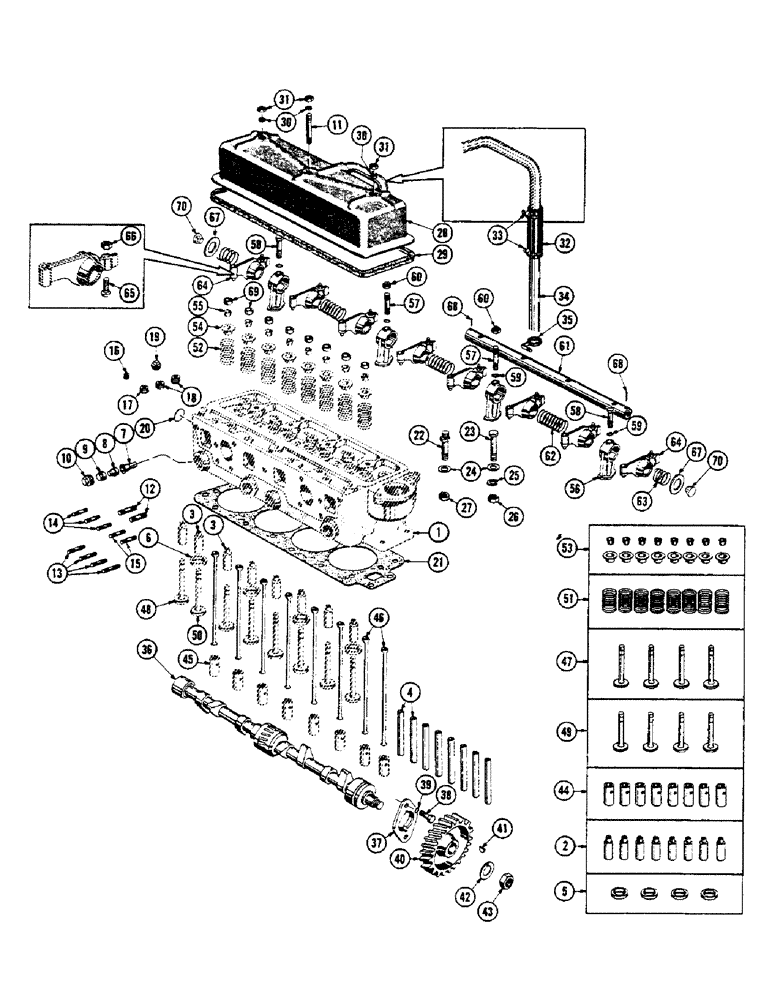

Запчасти Case 600 (018) - DIESEL ENGINE INSTALLATION, CYLINDER HEAD, CAMSHAFT, VALVES (01) - ENGINE

17491

HEAD ASS'Y. - cylinder (With valves), Serial Range: (Optional-R12195)

1шт.

R12195

HEAD ASS'Y. - cylinder (Stripped)

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

2

5497

KIT - valve stem guide

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - valve stem

8шт.

4

10634

SOCKET

TUBE - push rod

8шт.

5

R-2252

KIT - insert, exhaust valve seat

1шт.

6

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (.010 oversize)

4шт.

7

10653

FITTING

BODY ASS'Y. - energy cell

4шт.

8

10599

CAP - energy cell

4шт.

9

10606

FITTING

RETAINER - energy cell

4шт.

10

10607

PLUG

- retainer, energy cell

4шт.

11

10695

OLIVE

STUD - cyl. hd. cover to cyl. hd., 3/8-16 NC x 5-1/4

1шт.

12

10698

SCREW

STUD - manifold to cyl. hd. thru crabs, 7/16-14 NC x 2-1/8

2шт.

13

10699

NUT

STUD - manifold to cyl. hd., 7/16-14 NC x 2

4шт.

14

NLS

NO LONGER SERVICED

STUD - manifold to cyl. hd., end & center, 7/16-14 NC x 1-5/8

3шт.

15

11581

NUT

STUD - primary filter support to cyl. hd., 3/8-16 NC x 1-1/4

2шт.

16

30395

PLUG - pipe, 1/8 NP, oil hole in head

1шт.

17

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2 NP, thermo couple hole rear (41823)

1шт.

18

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe, 1/2 NP, cyl. hd. cleanout hole (41838)

2шт.

19

10772

LOCK WASHER

PLUG - pipe, 3/4 NP, cyl. hd. cleanout hold

1шт.

20

10775

LOCK WASHER

PLUG - core hole, cylinder hold (2" dia.)

1шт.

21

10669

GASKET

GASKET - cyl. hd.

1шт.

22

10684

FITTING

STUD & NUT - 1/2-13 NC x 9/16-18 NF x 5-3/4 (R12195 mt'g.)

2шт.

23

10693

FITTING

HHCS - 1/2-13 NC x 5-3/4 (R12195 mt'g.)

11шт.

24

10727

FITTING

WASHER - plain (R12195 mt'g.)

15шт.

25

92-6

LOCK WASHER,3/8"

(R12195 mt'g. front) (48446) 3/8"

2шт.

26

VT3361

X

NUT - reg. SF hex (1/2-20 NF) (R12195 mt'g. front)

2шт.

27

30438

X

NUT - reg. SF hex (3/8-16 NC) (R12195 mt'g. front)

2шт.

28

10613

PIPE FITTING

COVER ASS'Y. - cyl. hd. (Used up to serial #7060734)

1шт.

R11817

COVER ASS'Y. - cyl. hd. (Used from serial #7060734)

1шт.

29

10678

BASE PLATE

GASKET - cyl. hd. cover

1шт.

30

30257

GASKET

- valve cover studs (R11817 & 10613 mt'g.)

3шт.

31

30438

X

NUT - ref. SF hex (3/8-16 NC) (R11817 & 10613 mt'g.)

3шт.

32

32798

HOSE

- connecting, breather tube

1шт.

33

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - connecting hose, breather tube

2шт.

34

74743

TUBE - breather

1шт.

35

74740

NUT

BRACKET - breather tube

1шт.

36

33836

BUSHING

CAMSHAFT (Used up to serial #7060734)

1шт.

R12196

CAMSHAFT (Used from serial #7060734)

1шт.

37

NLS

NO LONGER SERVICED

PLATE - camshaft thrust

1шт.

38

11588

NUT

HHCS 3/8-16 NC x 7/8 (11587 mt'g.)

2шт.

39

48526

X

WASHER - med. sec. lock

2шт.

40

10420

SEALING RING COLLAR

GEAR - camshaft timing

1шт.

41

10776

LOCK WASHER

KEY - Woodruff

1шт.

42

10447

SEALING RING COLLAR

LOCK - nut, camshaft gear

1шт.

43

10718

FITTING

NUT - lock, gear mt'g.

1шт.

44

5496

KIT

- valve tappet

1шт.

45

NSS

NOT SOLD SEPARAT

TAPPET - valve

8шт.

46

10598

ROD - push, valve

8шт.

47

5493

VALVE

KIT - intake valve

1шт.

48

NSS

NOT SOLD SEPARAT

VALVE - intake

4шт.

49

5492

BOX

KIT - exhaust valve

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - exhaust

4шт.

51

5494

LOCK NUT,3/4"-10, GA

KIT - valve spring (Used up to serial #7060776)

1шт.

R2322

KIT - valve spring (Used from serial #7060776)

1шт.

52

NSS

NOT SOLD SEPARAT

SPRING - valve

8шт.

53

5495

HYDRAULIC HOSE

KIT - retainer & lock, valve spring

1шт.

54

NSS

NOT SOLD SEPARAT

RETAINER - valve spring

8шт.

55

NSS

NOT SOLD SEPARAT

LOCK - valve spring retaining

16шт.

56

30176

SUPPORT - shaft, rocker arm

4шт.

57

645744

SERVICE KIT,Knotter Cam

STUD 7/16-14 NC x 3/8-16 NC x 5 11/16 (30176 mt'g.)

2шт.

58

30240

HHCS 7/16-14 NC x 4 (30176 mt'g.)

2шт.

59

195-29

WASHER,7/16"

- plain (30176 mt'g.) (48427)

4шт.

60

10726

OLIVE

NUT - hex. special (3/8-16 NC) (30176 mt'g.)

2шт.

61

10492

GASKET

SHAFT - rocker arm

1шт.

62

30223

RIGID TUBE

SPRING - long, rocker arm shaft

3шт.

63

30229

BULB

SPRING - short, rocker arm shaft

2шт.

64

10632

FITTING

ARM ASS'Y. - rocker, R.H.

4шт.

10633

FITTING

ARM ASS'Y. - rocker, L.H.

4шт.

65

30244

TUBE

SCREW - adjusting

1шт.

66

48161

NUT - lock (5/16-24 NF)

1шт.

67

NLS

NO LONGER SERVICED

WASHER - rocker arm shaft

2шт.

68

10769

WASHER

PIN - cotter, 1/8 dia. x 1 1/2

2шт.

69

30237

SOCKET - ball, valve actuating

8шт.

70

NLS

NO LONGER SERVICED

PLUG - cork, rocker arm shaft

2шт.
