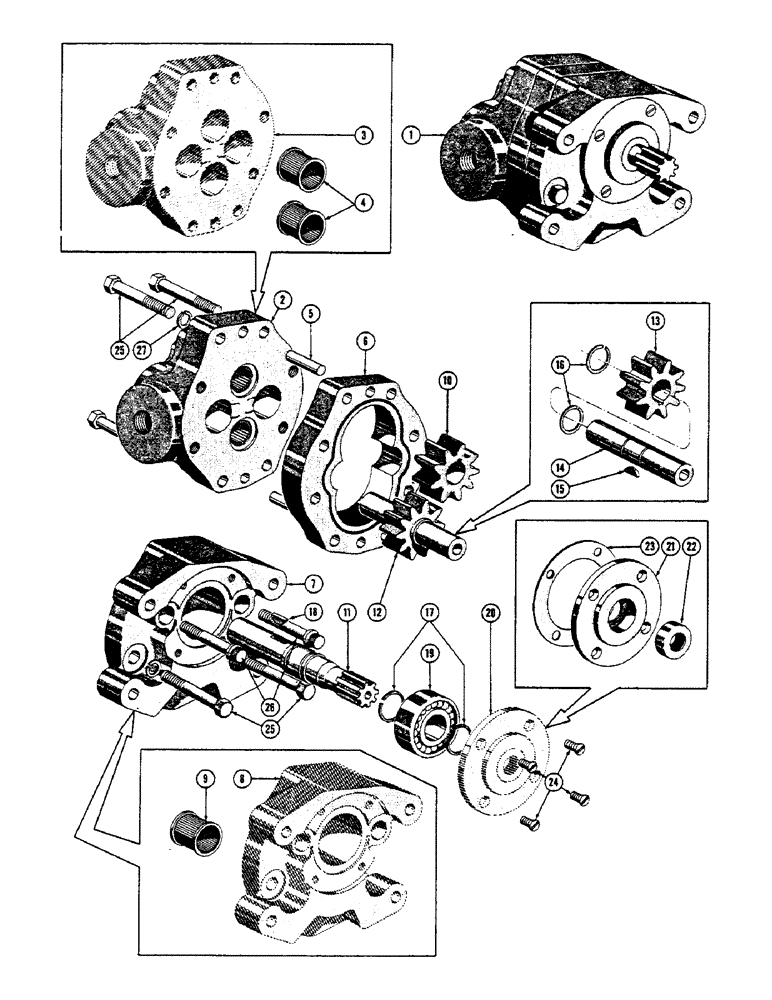

Запчасти Case 600 (298) - HYDRAULIC PUMP ASSEMBLY, BODY, COVERS, GEARS, SHAFT, SEALS (07) - HYDRAULIC SYSTEM

1

31614

PUMP ASS'Y. - hydraulic

1шт.

2

34533

COVER ASS'Y. - pump

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

4

O5034BF

X

BEARING - needle

2шт.

5

34536

PIN - dowel

2шт.

6

34534

CAM

PLATE - gear

1шт.

7

34535

X

BODY ASS'Y. - pump

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

9

05034BF

BEARING - needle

1шт.

10

34537

X

GEAR - hydraulic pump

1шт.

11

NLS

NO LONGER SERVICED

SHAFT - drive

1шт.

12

34538

X

GEAR & SHAFT ASS'Y. - idler

1шт.

13

34537

X

GEAR - hydraulic pump

1шт.

14

34625

GUARD

SHAFT - idler

1шт.

15

48777

X

KEY - Woodruff

1шт.

16

38384

RING - retaining

2шт.

17

34488

RING, SNAP

RING - retaining

2шт.

18

48777

X

KEY - Woodruff

1шт.

19

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE ASS'Y. - pilot

1шт.

21

34628

PLATE - pilot

1шт.

22

40642

RICE TOOTH

SEAL - oil

1шт.

23

34490

SPRING

GASKET - pilot plate

1шт.

24

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

FHMS 1/4-20 NC x 1/2 (34489 mt'g.) (46950)

4шт.

25

38169

X

HHCS 1/2-13 NC x 2 3/4

6шт.

26

34486

PIPE FITTING

SCREW - counterbore

2шт.

27

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.
