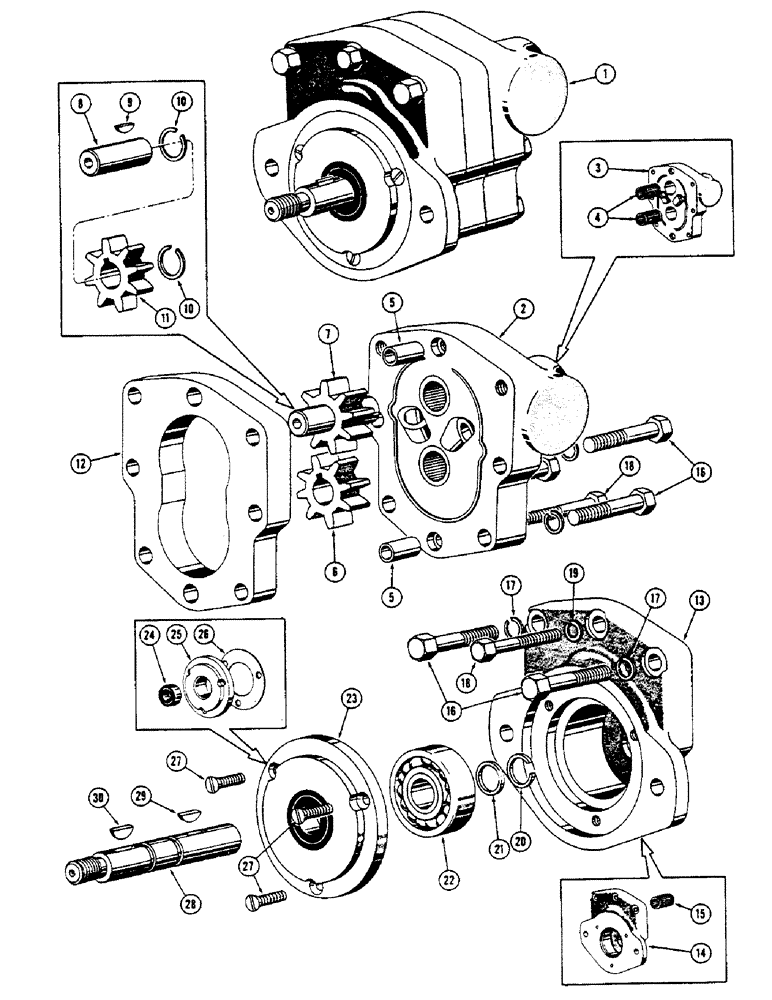

Запчасти Case 600 (296) - HYDRAULIC PUMP ASSEMBLY, BODY, COVERS, GEARS, SEALS (07) - HYDRAULIC SYSTEM

1

32655

PUMP ASS'Y. - hydraulic

1шт.

2

33187

COVER ASS'Y. - pump

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

4

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

5

33203

BRACKET

PIN - dowel

2шт.

6

33201

GEAR - drive

1шт.

7

33194

GEAR & SHAFT ASS'Y. - idler

1шт.

8

33195

SHAFT - idler

1шт.

9

34455

HOOK

KEY - Woodruff

1шт.

10

14217

RING

- gear retaining

2шт.

11

33201

GEAR - idler

1шт.

12

33198

WASHER

PLATE - gear

1шт.

13

33184

BODY

ASS'Y. - pump

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

15

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

16

33205

BRACKET

HHCS - pump

6шт.

17

14203

SCREW

WASHER - lock

6шт.

18

33204

HHCS - pump

2шт.

19

92-4

LOCK WASHER,1/4"

2шт.

20

14217

RING

- retaining

1шт.

21

14218

WASHER

WASHER - shim

1шт.

22

MT20415

BEARING - ball

1шт.

23

35678

PLATE

ASS'Y. - pilot

1шт.

24

35679

ARM

SEAL - oil

1шт.

25

38187

PLATE - pilot

1шт.

26

14221

GASKET

- pilot plate

1шт.

27

34447

X

FHMS - pump

3шт.

28

35677

SHAFT - pump drive

1шт.

29

38168

X

KEY - Woodruff

1шт.

30

48777

X

KEY - Woodruff

1шт.
