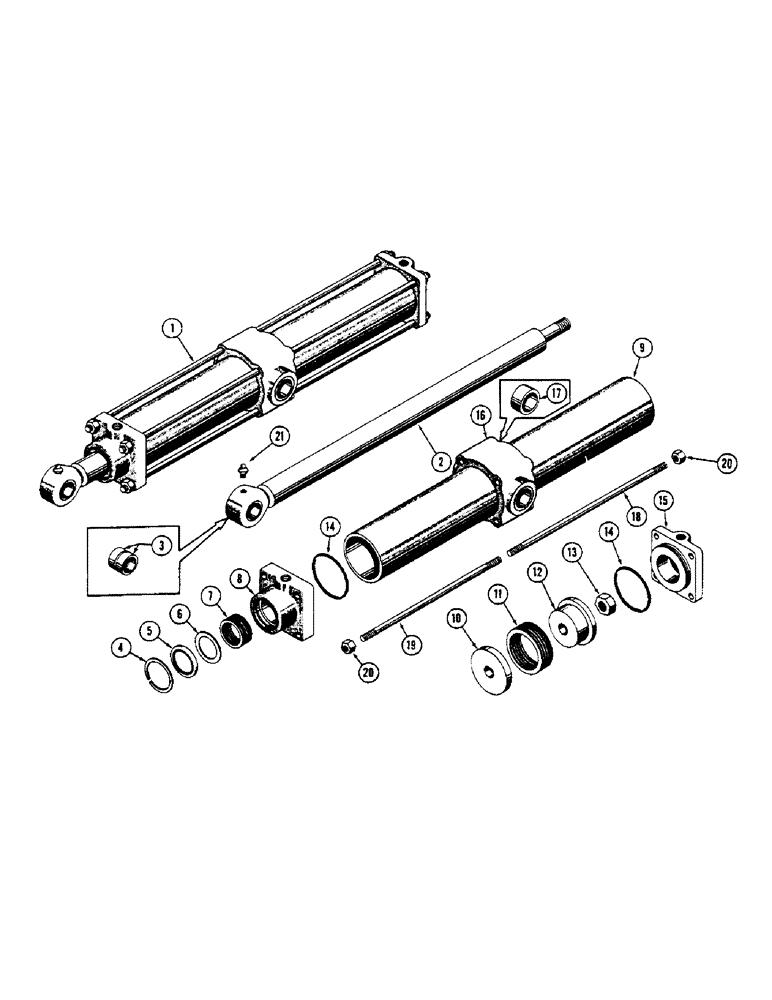

Запчасти Case 600 (292) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

34920

CYLINDER ASS'Y. - hydraulic

1шт.

2

D20032

END YOKE & PISTON ROD ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y.

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

5

17603

WIPER SEAL

- wiper

1шт.

6

36259

WASHER

- packing

1шт.

7

17597

PACKING

- rod

1шт.

8

30628

CAP - cylinder end

1шт.

9

35365

GASKET

TUBE - hydraulic cylinder

1шт.

10

30630

CARTRIDGE

SPACER - retainer

1шт.

11

17598

PACKING

- piston

1шт.

12

30631

X

BLOCK - piston

1шт.

13

48070

O-RING

NUT - lock (3/4-16 NF)

1шт.

14

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

15

34888

END

- cylinder

1шт.

16

D20528

TRUNNION ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION - cylinder

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

18

34921

ROD - tie (Short)

4шт.

19

34922

ROD - tie (Long)

4шт.

20

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

8шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.
