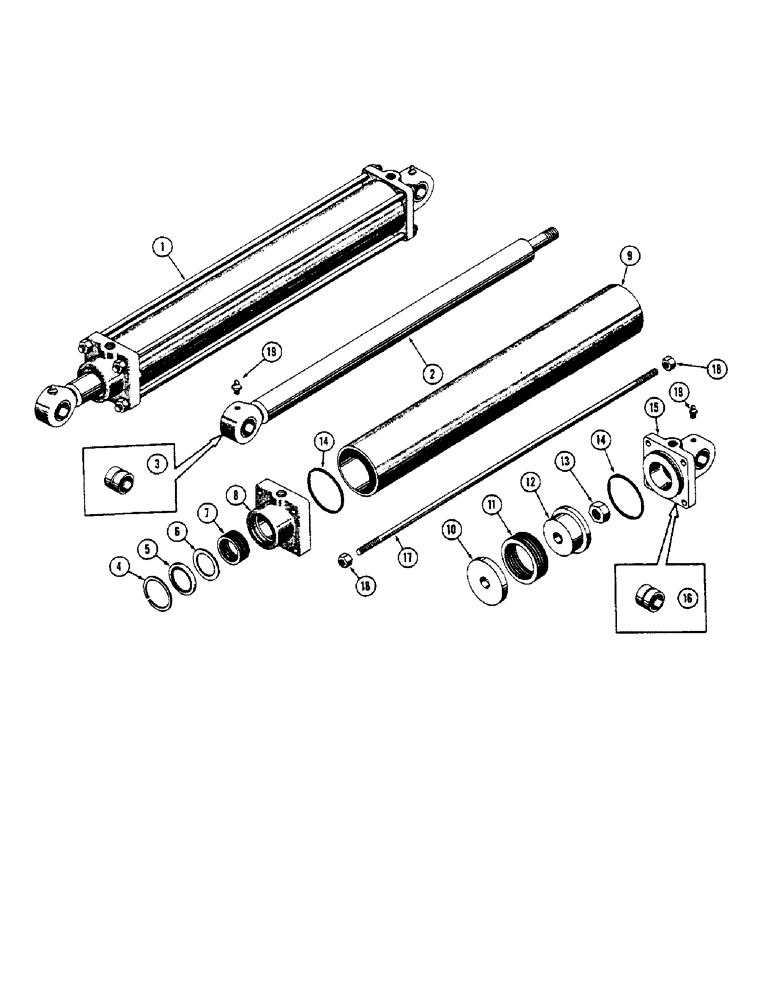

Запчасти Case 600 (286) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER ASS'Y. - hydraulic

1шт.

2

D20036

ROD

END YOKE & PISTON ROD ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y.

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

70742

WASHER

2.50", Int, #250

1шт.

5

30574

WIPER SEAL

SEAL - wiper

1шт.

6

70741

X

WASHER - packing

1шт.

7

30568

PACKING

- rod

1шт.

8

30567

FLANGE

CAP - cylinder end

1шт.

9

30570

DRAWBAR

TUBE - hydraulic cylinder

1шт.

10

NLS

NO LONGER SERVICED

SPACER - retainer

1шт.

11

17578

PACKING

- piston

1шт.

12

30571

BLOCK - piston

1шт.

13

R12336

LOCK NUT

- lock (1"-14 NF)

1шт.

14

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

15

D20054

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

16

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

17

30569

ROD

- tie

4шт.

18

131-376

LOCK NUT

NUT - lock (1/2-20 NF)

8шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

2шт.
