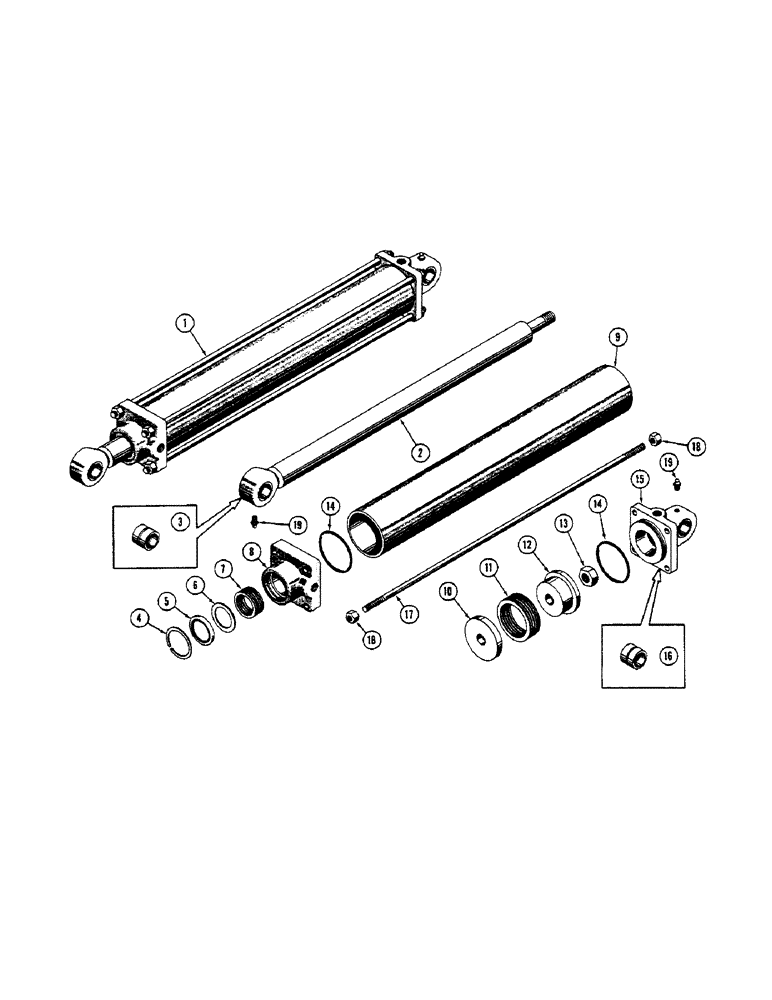

Запчасти Case 600 (284) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

R10911

CYLINDER ASS'Y. - cylinder

1шт.

2

D20019

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

70742

WASHER

2.50", Int, #250

1шт.

5

17583

WIPER SEAL

- wiper

1шт.

6

70740

WASHER

- packing

1шт.

7

17577

PACKING

- rod

1шт.

8

32486

RATCHET

CAP - cylinder end

1шт.

9

31750

TUBE - hydraulic cylinder

1шт.

10

31661

WASHER

SPACER - retainer

1шт.

11

31662

PACKING

- piston

1шт.

12

31663

X

BLOCK - piston

1шт.

13

48070

O-RING

NUT - lock (3/4-16 NF)

1шт.

14

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

15

D20052

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

17

34939

ROD - tie

4шт.

18

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

8шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 65 degree grease, 1/8 NP (49219)

1шт.
